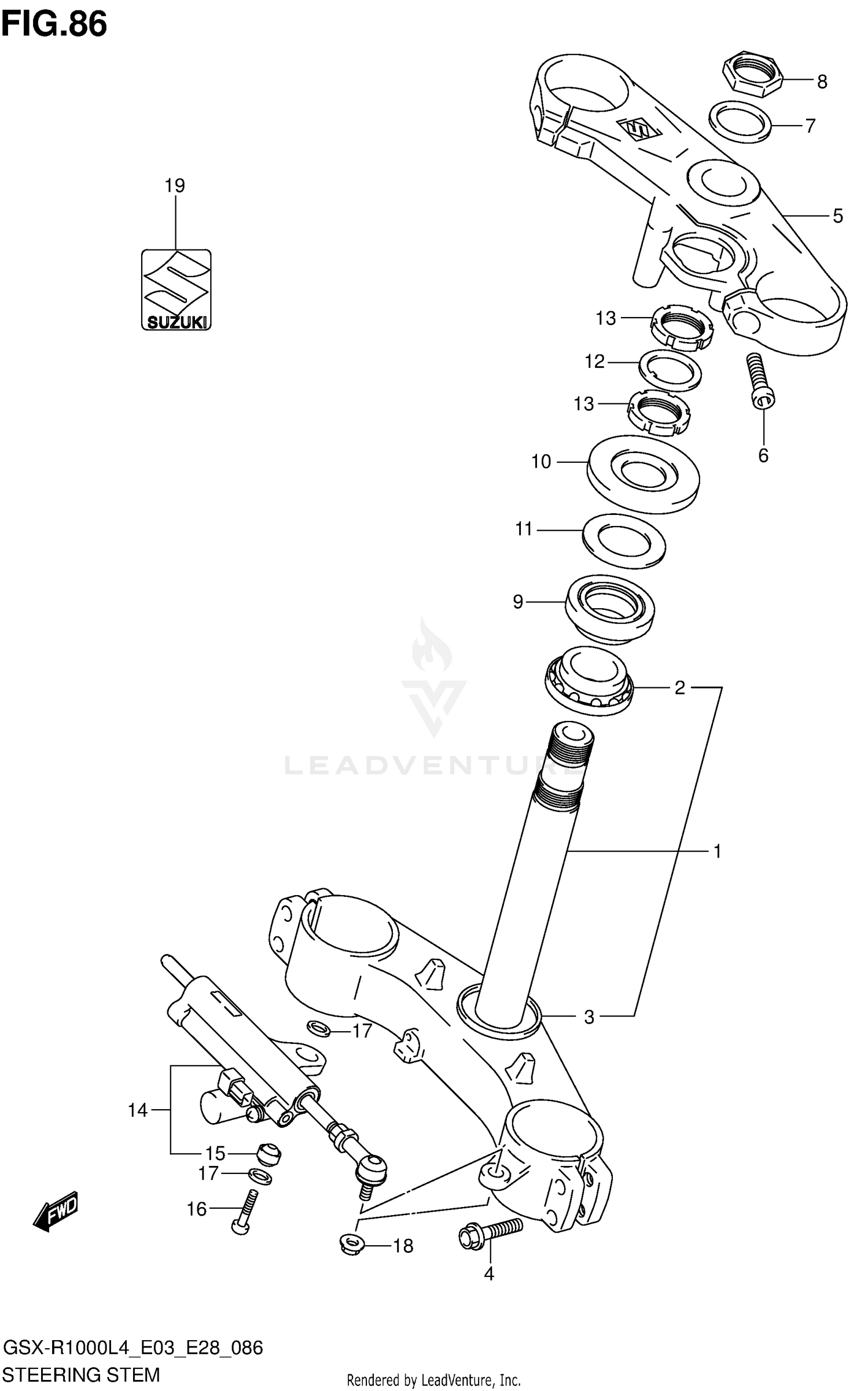

Steering Stem (gsx-r1000l4 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STEM, STEERING
51410-47H20
|
$1,193.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING (30X55X17)
09267-30010
|
$60.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SEAL,STEERING LOWER (30.1X56
51644-12C00
|
$12.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT,HOLDER AXLE (8X40)
51328-27E30
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
HEAD,STEERING STEM
51311-47H00
|
$398.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HOLDER (8X25)
51321-27E30
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER,STEM HEAD
51354-01H00
|
$9.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
51353-01H00
|
$46.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING (30X55X17)
09267-30010
|
$60.34 | ||
|
Unavailable |
|||
|
#10
COVER,STEERING UPPER
51643-41G00
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SEAL,STEERING LOWER (30.1X56
51644-12C00
|
$12.20 | ||
|
Unavailable |
|||
|
#12
WASHER, STEM
51641-33E00
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, STEM
51631-33E00
|
$30.52 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER ASSY,STE
51750-21H20
Superseded by 51750-21H21
|
$1,295.41 | ||
|
Unavailable |
|||
|
#15
BEARING (8X17.5X11)
09269-08003
|
$65.37 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (8X35)
09106-08130
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL, PILLOWBALL DUST
64339-14101
|
$10.56 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08319-3108A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#19
EMBLEM,"S"
68281-47HA0
|
$10.02 | ||
|
Available to order. Add to View Price |
|||
