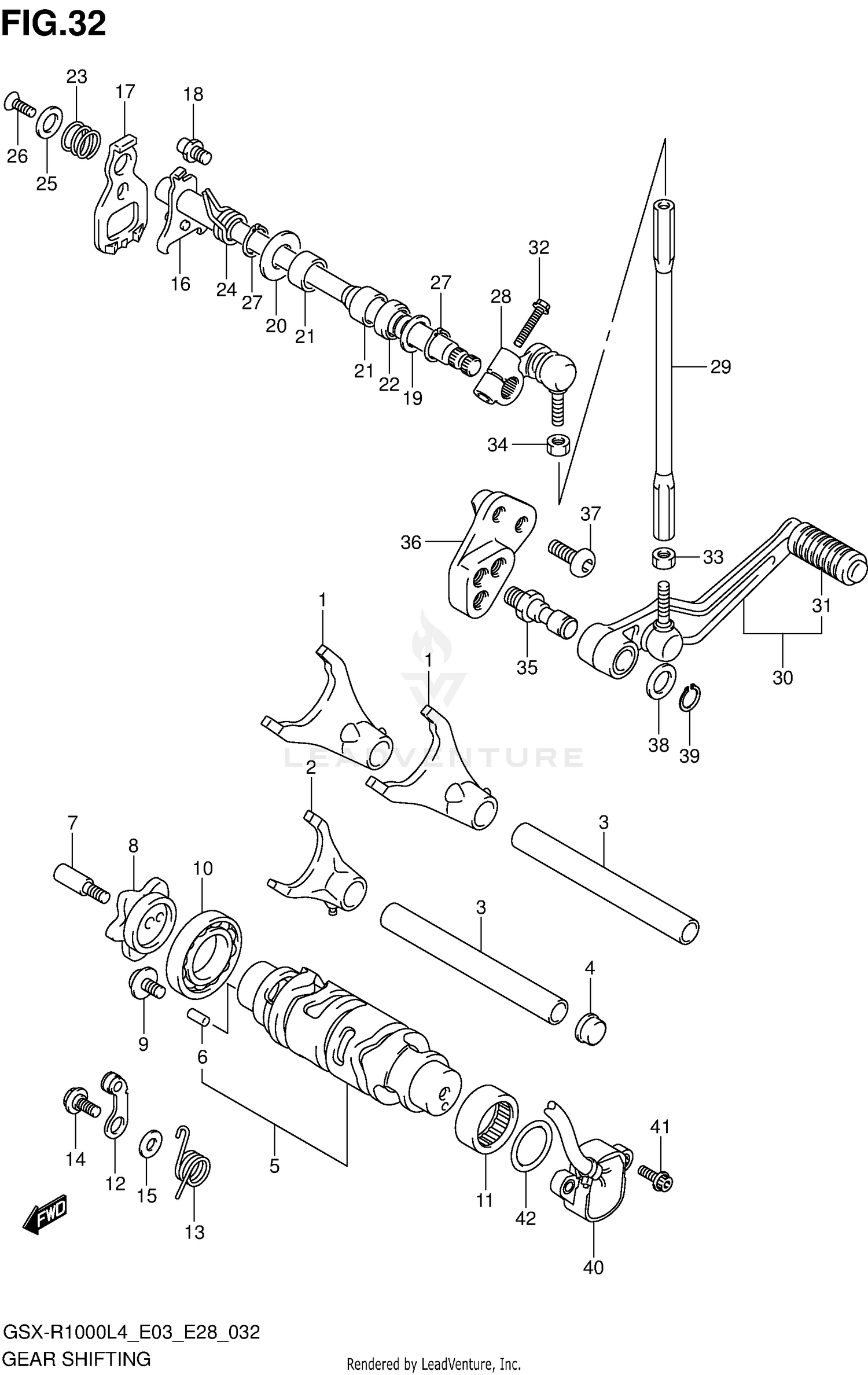

Gear Shifting Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK,GEAR SHIFT NO.1
25211-01H10
Superseded by 25211-01H11
|
$87.97 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK,GEAR SHIFT NO.3
25231-01H01
Superseded by 25231-01H02
|
$86.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, GEAR SHIFT FORK
25411-27A00
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG, GEAR SHIFT FORK SHAFT
25712-37H00
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAM, GEAR SHIFT
25310-47H00
|
$176.32 | ||
|
Unavailable |
|||
|
#6
.PIN
04221-04089
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, GEAR SHIFT CAM PLATE
25312-42F01
|
$10.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, GEAR SHIFT CAM
25381-13E30
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW (6X12)
09136-06147
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING (25X47X8)
09262-25006
|
$32.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (25X32X12)
09263-25018
|
$26.83 | ||
|
Available to order. Add to View Price |
|||
|
#12
STOPPER,SHIFT CAM
25350-06G00
Superseded by 25350-06G10
|
$20.36 | ||
|
Unavailable |
|||
|
#13
SPRING, GEAR SHIFT CAM
25355-01H00
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (6X14.3)
09111-06041
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
08211-06141
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT, GEAR SHIFT
25510-47H00
|
$110.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE,GEAR SHIFT CAM DRIVE
25512-06G10
Superseded by 25512-06G20
|
$31.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
STOPPER, GEAR SHIFT ARM
25671-01011
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (14X29X0.8)
09160-14016
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM (14X24X1)
09181-14195
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING (14X20X12)
09263-14027
|
$16.96 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL, SHIFT SHAFT (14X22X6)
09283-14005
Superseded by 09283-14006
|
$8.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SPRING, GEAR SHIFT PLATE
25518-01H00
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING
09444-20001
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, GEAR SHIFT SHAF END
25519-01H00
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW (6X16)
09126-06014
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
08331-3114A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#28
ARM,GEAR SHIFT
25520-01H00
Superseded by 25520-01H01
|
$60.43 | ||
|
Available to order. Add to View Price |
|||
|
#29
ROD, GEAR SHIFT LINK
25525-01H00
|
$40.54 | ||
|
Available to order. Add to View Price |
|||
|
#30
LEVER ASSY,GEAR
25600-47H00
Superseded by 25600-47H01
|
$152.40 | ||
|
Unavailable |
|||
|
#31
RUBBER, GEAR SHIFT PEDAL
25652-20C00
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
01547-0625A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#33
.NUT
09140-06025
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT
09140-06020
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#35
SHAFT, GEAR SHIFT LEVER
25617-03F10
|
$15.92 | ||
|
Available to order. Add to View Price |
|||
|
#36
BRACKET, GEAR SHIFT LEVER
25681-47H01
|
$72.54 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT (8X20)
09106-08167
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER (12.5X20X1.0)
09160-12011
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
CIRCLIP
08331-3112A
|
$2.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
SENSOR ASSY,GEAR POSITION
37730-14J00
Superseded by 37730-14J01
|
$95.34 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT (5X16)
09106-05023
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
O RING (D:2.4,ID:26.2)
09280-26005
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
