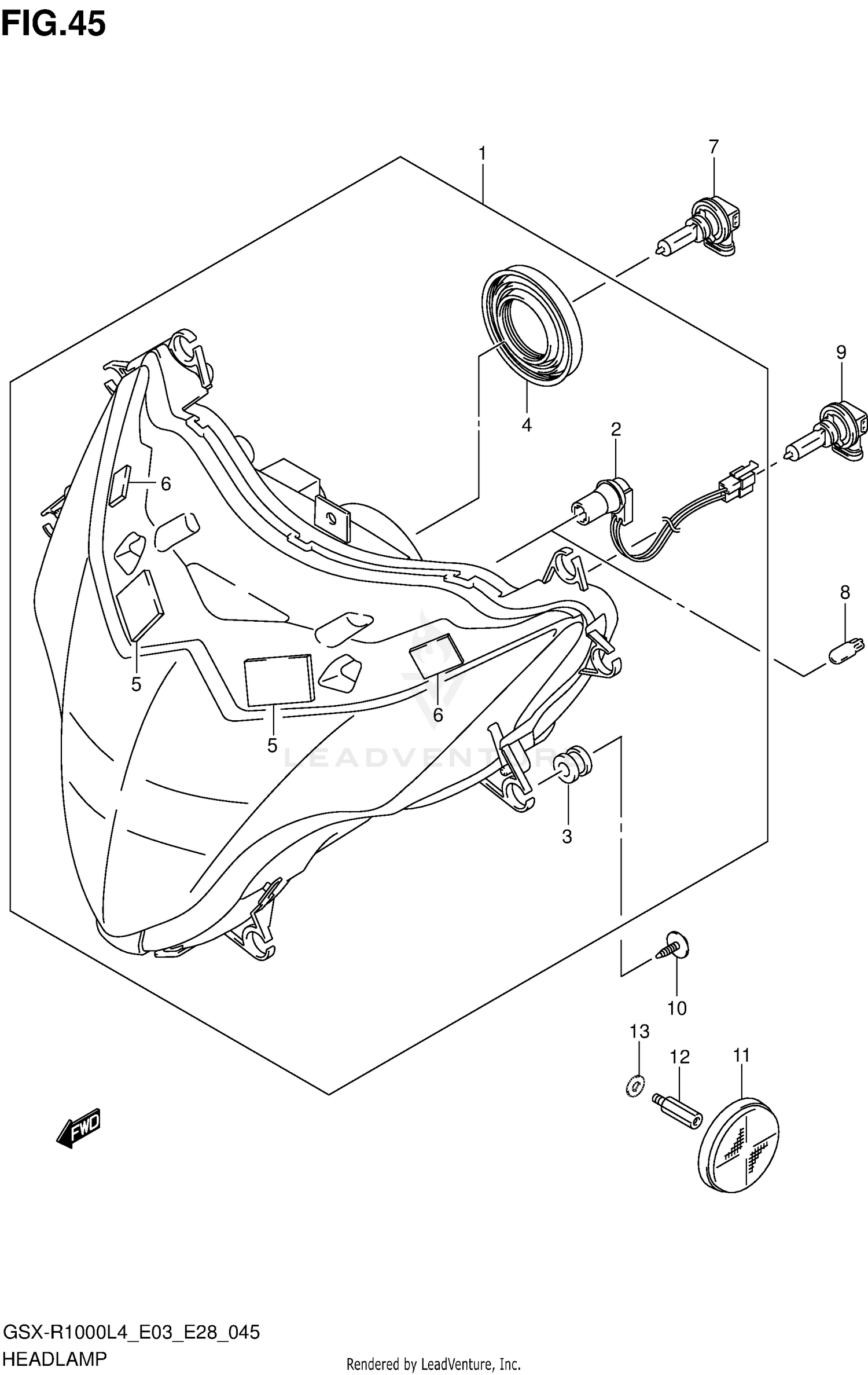

Headlamp (gsx-r1000l4 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
35100-47H31-999
Superseded by 35100-47H32-999
|
$612.71 | ||
|
Unavailable |
|||
|
#2
CORD ASSY
36118-29G51
|
$24.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION (9X18X14)
09320-09039
Superseded by 09320-09059
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, SOCKET
35179-76F10
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
FASTENER (25X33X0.8)
44572-02F01
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
FASTENER, COWLING
44572-37H00
|
$12.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BULB (12V55W)
09471-12210
|
$60.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
.BULB (12V5W)
09471-12216
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BULB (12V65W)
09471-12222
|
$89.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW (5X15)
09136-05062
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#11
REFLEX REFLECTOR ASSY,FR SIDE
35950-14A11
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
09119-06109
|
$14.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (8.5X18X1)
09160-08043
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
