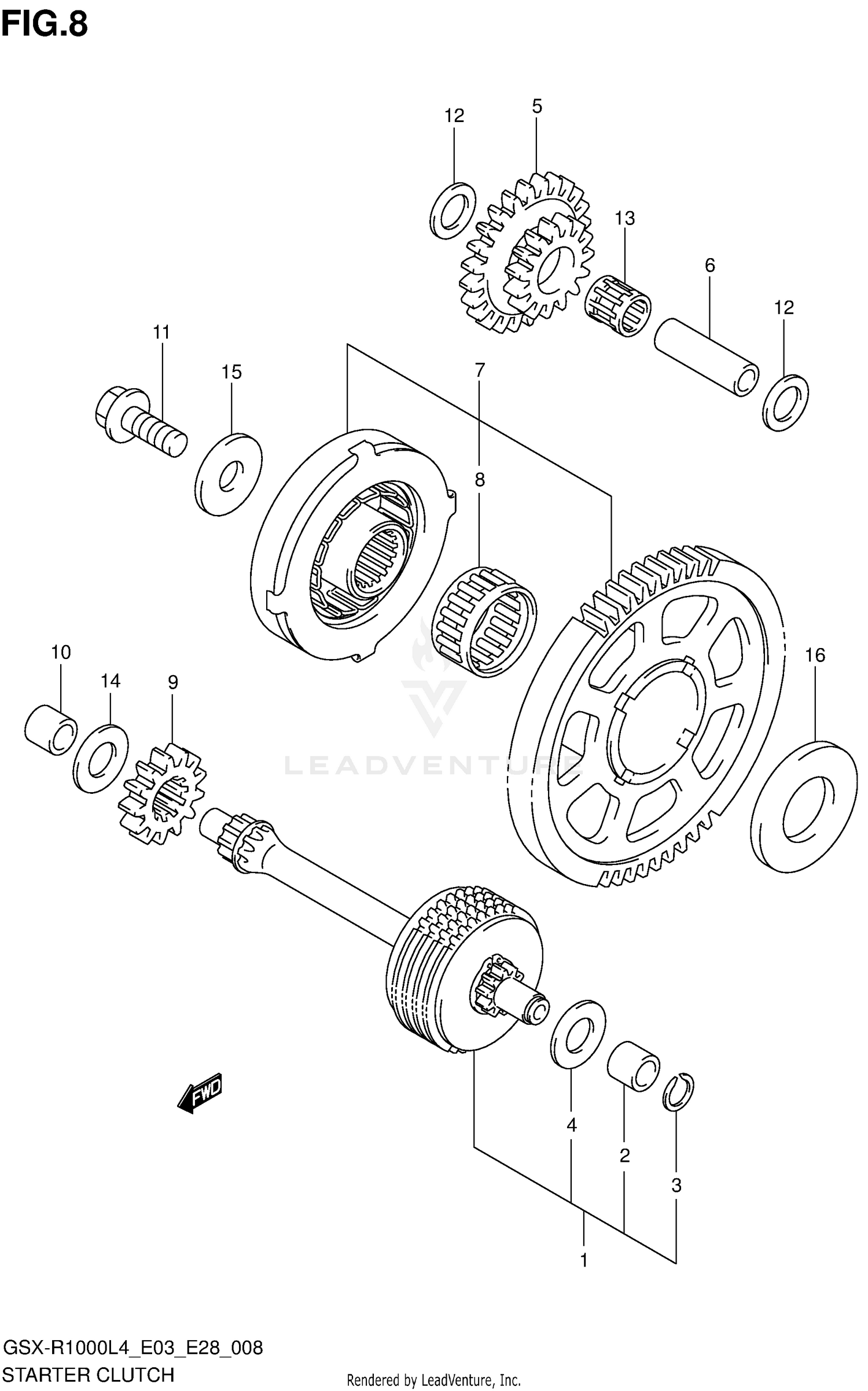

Starter Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LIMITER ASSY, START IDLE NO.1
12600-47850
|
$292.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH, LIMITER GEAR SHAFT
12618-31G00
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
09380-09003
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
08211-10221
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GEAR, STARTER IDLE NO.2
12612-47H00
|
$115.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, STARTER IDLE NO.2
12151-09204
|
$13.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLUTCH SET,STAR
12600-47840
Superseded by 12600-47842
|
$262.76 | ||
|
Unavailable |
|||
|
#8
BEARING (26X31X16)
09263-26035
|
$77.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, LIMITER DRIVEN
12617-47H00
|
$58.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH, LIMITER GEAR SHAFT
12618-31G00
|
$5.20 | ||
|
Unavailable |
|||
|
#11
BOLT (10X23)
09103-10189
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM (12X20X1)
09181-12167
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING (12X16X16)
09263-12023
|
$12.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
08211-10221
|
$2.45 | ||
|
Unavailable |
|||
|
#15
WASHER
08211-10285
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
08211-20403
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
