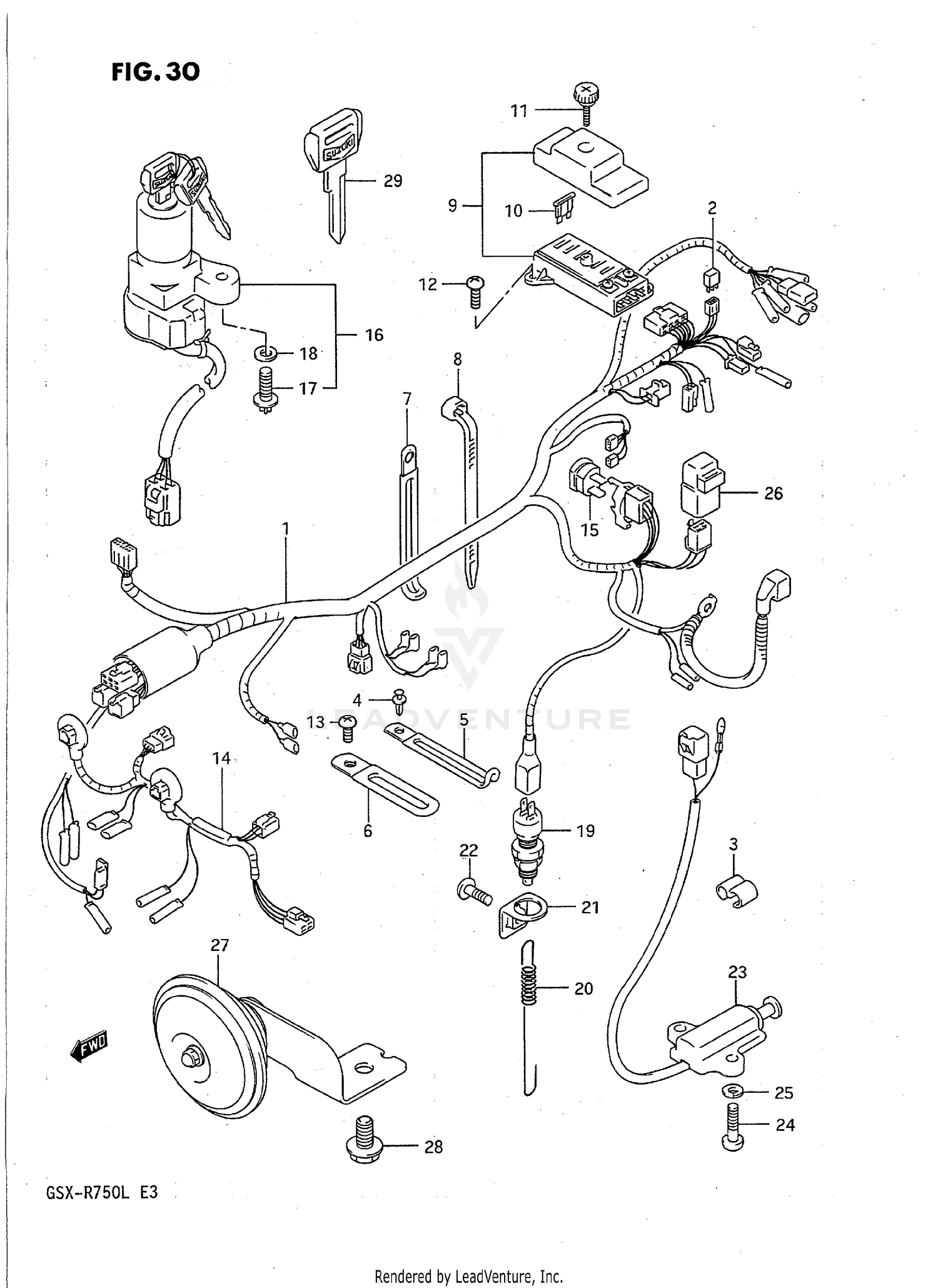

Wiring Harness (model J/k) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS,WIRING
36610-17C01
Superseded by 36610-40C52
|
$282.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
.DIODE
36611-38A00
Superseded by 36611-38A10
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP
09408-00002
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
.CLIP (BLACK)
09409-07305
Superseded by 09409-07305-5PK
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP(L:80)
09404-06417
Superseded by 09404-06036
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
09404-06403
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP(L:80)
09404-06404
Superseded by 09404-06036
|
$2.20 | ||
|
Unavailable |
|||
|
#6
CLAMP (L:67)
09404-05403
|
$1.51 | ||
|
Unavailable |
|||
|
#7
CLAMP(L:80)
09404-06415
Superseded by 09404-06036
|
$2.20 | ||
|
Unavailable |
|||
|
#8
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOX ASSY, FUSE
36740-17C00
Superseded by 36740-27A00
|
$93.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE (10A)
09481-10101
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SCREW
36721-17C00
Superseded by 03541-0420A
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
02142-05164
Superseded by 02142-0516A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
02142-05128
Superseded by 02142-05127
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#14
WIRE, HEADLAMP LEAD
36856-17C00
Superseded by 36856-17D00
|
$78.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
BREAKER ASSY, CIRCUIT
36750-05A00
|
$57.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
LOCK ASSY,STEER
37100-17C00
Superseded by 37100-26D04
|
$171.18 | ||
|
Unavailable |
|||
|
#17
BOLT
09139-06026
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
LOCK WASHER
08321-31066
Superseded by 08321-0106A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
SWITCH ASSY, STOP LAMP
37740-24A00
|
$23.50 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING
09443-06012
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET, SWITCH
43251-17C00
Superseded by 43251-17C01
|
$9.80 | ||
|
Unavailable |
|||
|
#22
BOLT
09139-06027
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
SWITCH ASSY,SID
37840-17C00
Superseded by 37840-32C02
|
$64.68 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
02112-06164
Superseded by 02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#25
LOCK WASHER
08321-21064
Superseded by 08321-0106A
|
$2.29 | ||
|
Unavailable |
|||
|
#26
RELAY ASSY, SIDE STAND
38740-24B10
Superseded by 38740-24X50
|
$58.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
HORN ASSY
38500-17C00
|
$50.25 | ||
|
Unavailable |
|||
|
#28
BOLT
01517-08128
Superseded by 01550-08127
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#29
KEY, BLANK
37146-03A80
Superseded by 37146-26D10
|
$56.10 | ||
|
Available to order. Add to View Price |
|||
