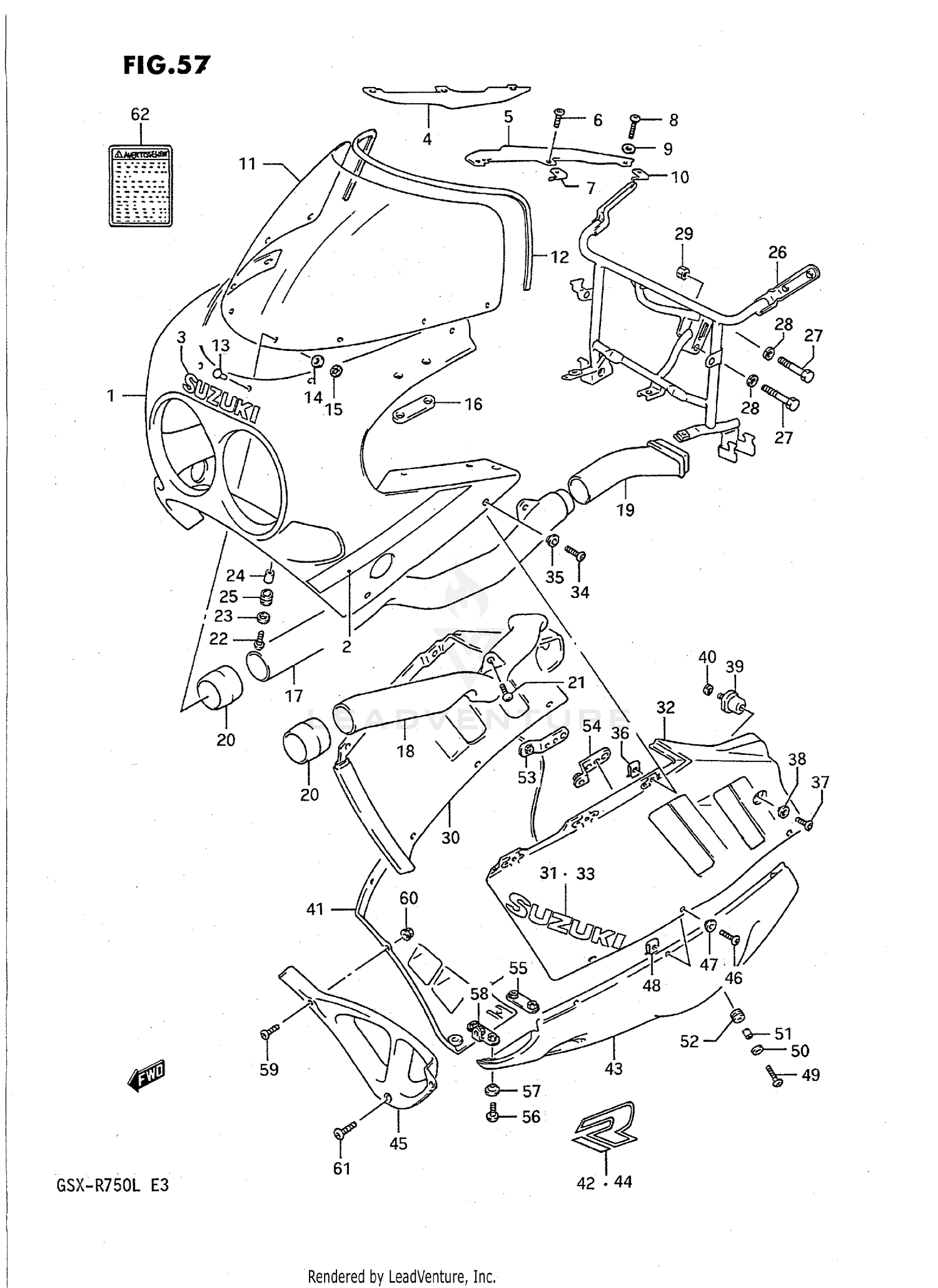

Cowling (model K 9sr) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY, COWLING
94400-18C00-9SR
|
$698.46 | ||
|
Unavailable |
|||
|
#1
BODY ASSY, COWLING
94400-18C01-9SR
Superseded by 94400-18C00-9SR
|
$698.46 | ||
|
Unavailable |
|||
|
#2
TAPE SET
68180-17C20-39K
|
$23.09 | ||
|
Unavailable |
|||
|
#3
EMBLEM
68271-04A00-22R
Superseded by 68271-04A10-22R
|
$18.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
PANEL, UPPER RH
94432-17C01
Superseded by 94432-17C02
|
$12.92 | ||
|
Available to order. Add to View Price |
|||
|
#5
PANEL, UPPER LH
94442-17C01
Superseded by 94442-17C02
|
$13.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, UPPER
09139-05033
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
09148-05023
Superseded by 09148-05021
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW (5X14)
09139-05025
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER (5.2X11.0X1.0)
09161-05010
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
09148-05023
Superseded by 09148-05021
|
$2.35 | ||
|
Unavailable |
|||
|
#11
SCREEN SET, WIND
94611-17C00
Superseded by 94610-17D02
|
$340.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREEN SET, WIND
94600-17830
|
$173.86 | ||
|
Unavailable |
|||
|
#12
MOLDING
94631-17C00
|
$15.27 | ||
|
Unavailable |
|||
|
#13
PIN, SCREEN (4X11)
94616-17C00
Superseded by 94616-22D00
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION
09320-04007
Superseded by 09320-04501
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
09148-04010
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION, MIRROR
94576-12C00
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE, AIR INTAKE FRONT RH
94451-17C01
|
$31.59 | ||
|
Unavailable |
|||
|
#18
PIPE, AIR INTAKE FRONT LH
94452-17C02
|
$43.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE, AIR INTAKE REAR RH
94453-17C00
|
$32.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
JOINT, AIR INTAKE
94454-17C01
|
$12.92 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
02142-06207
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, BODY FRONT
09139-06056
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (6.5X18X1)
09160-06056
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SPACER
09180-06152
Superseded by 09180-06262
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#25
CUSHION
09320-09016
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
NO DESCRIPTION AVAILABLE
94510-17C13
Superseded by 94510-17C14
|
$205.16 | ||
|
Unavailable |
|||
|
#27
BOLT
01107-08355
Superseded by 01500-0835B
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER,LOCK
08321-21084
Superseded by 08321-0108A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
08310-12085
Superseded by 08310-0008A
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, SIDE RH (BLUE/WHITE)
94430-17C30-9SR
|
$299.79 | ||
|
Unavailable |
|||
|
#30
COVER, SIDE RH (BLUE/WHITE)
94430-17C31-9SR
Superseded by 94430-17C30-9SR
|
$299.79 | ||
|
Unavailable |
|||
|
#31
EMBLEM
68111-32B10-22R
|
$17.29 | ||
|
Unavailable |
|||
|
#32
COVER, SIDE LH (BLUE/WHITE)
94440-17C30-9SR
|
$299.79 | ||
|
Unavailable |
|||
|
#32
COVER, SIDE LH (BLUE/WHITE)
94440-17C31-9SR
Superseded by 94440-17C30-9SR
|
$299.79 | ||
|
Unavailable |
|||
|
#33
EMBLEM
68111-32B10-22R
|
$17.29 | ||
|
Unavailable |
|||
|
#34
SCREW (5X18)
09139-05032
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER
09161-05017
|
$3.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
NUT,COWL
94484-32B00
Superseded by 94484-24F00
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW
09139-06027
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER
09161-06021
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#39
CUSHION, COVER
94570-04A00
|
$29.09 | ||
|
Available to order. Add to View Price |
|||
|
#40
LOCK WASHER
08321-21064
Superseded by 08321-0106A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#41
NO DESCRIPTION AVAILABLE
94470-18C60-2GZ
Superseded by 94470-17D00-13L
|
$473.41 | ||
|
Unavailable |
|||
|
#41
NO DESCRIPTION AVAILABLE
94470-18C61-2GZ
Superseded by 94470-17D00-13L
|
$473.41 | ||
|
Unavailable |
|||
|
#42
EMBLEM
68191-06B00-2GR
|
$22.05 | ||
|
Unavailable |
|||
|
#43
NO DESCRIPTION AVAILABLE
94480-18C60-2GZ
Superseded by 94480-17D00-13L
|
$496.91 | ||
|
Unavailable |
|||
|
#43
NO DESCRIPTION AVAILABLE
94480-18C61-2GZ
Superseded by 94480-17D00-13L
|
$496.91 | ||
|
Unavailable |
|||
|
#44
EMBLEM
68191-06B00-2GR
|
$22.05 | ||
|
Unavailable |
|||
|
#45
NO DESCRIPTION AVAILABLE
94498-17C00-22R
Superseded by 94498-17C02-019
|
$108.13 | ||
|
Unavailable |
|||
|
#45
NO DESCRIPTION AVAILABLE
94498-17C01
Superseded by 94498-17C02-019
|
$108.13 | ||
|
Unavailable |
|||
|
#46
SCREW (5X18)
09139-05032
|
$2.41 | ||
|
Unavailable |
|||
|
#47
WASHER
09161-05017
|
$3.47 | ||
|
Unavailable |
|||
|
#48
NUT,COWL
94484-32B00
Superseded by 94484-24F00
|
$5.12 | ||
|
Unavailable |
|||
|
#49
SCREW, UNDER LOWER
09139-06028
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#50
WASHER (6.5X18X1)
09160-06056
|
$2.09 | ||
|
Unavailable |
|||
|
#51
SPACER
09180-06152
Superseded by 09180-06262
|
$3.09 | ||
|
Unavailable |
|||
|
#52
CUSHION
09320-09016
|
$2.45 | ||
|
Unavailable |
|||
|
#53
BRACE, UNDER COWL RH
94580-17C01
Superseded by 94580-40C00
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#54
BRACE, UNDER COWL LH
94590-17C01
Superseded by 94590-40C00
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
|
#55
BRACE, LOWER
94493-06B00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#56
SCREW
09139-06039
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#57
WASHER
09161-06021
|
$3.38 | ||
|
Unavailable |
|||
|
#58
BRACE, LOWER FRONT
94490-06B00
|
$6.82 | ||
|
Available to order. Add to View Price |
|||
|
#59
SCREW (5X14)
09139-05025
|
$2.21 | ||
|
Unavailable |
|||
|
#60
NUT
08316-26055
Superseded by 08316-2005A
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#61
SCREW
09139-06030
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#62
LABEL,SCREEN
68612-48B00
Superseded by 68922-14F01
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
