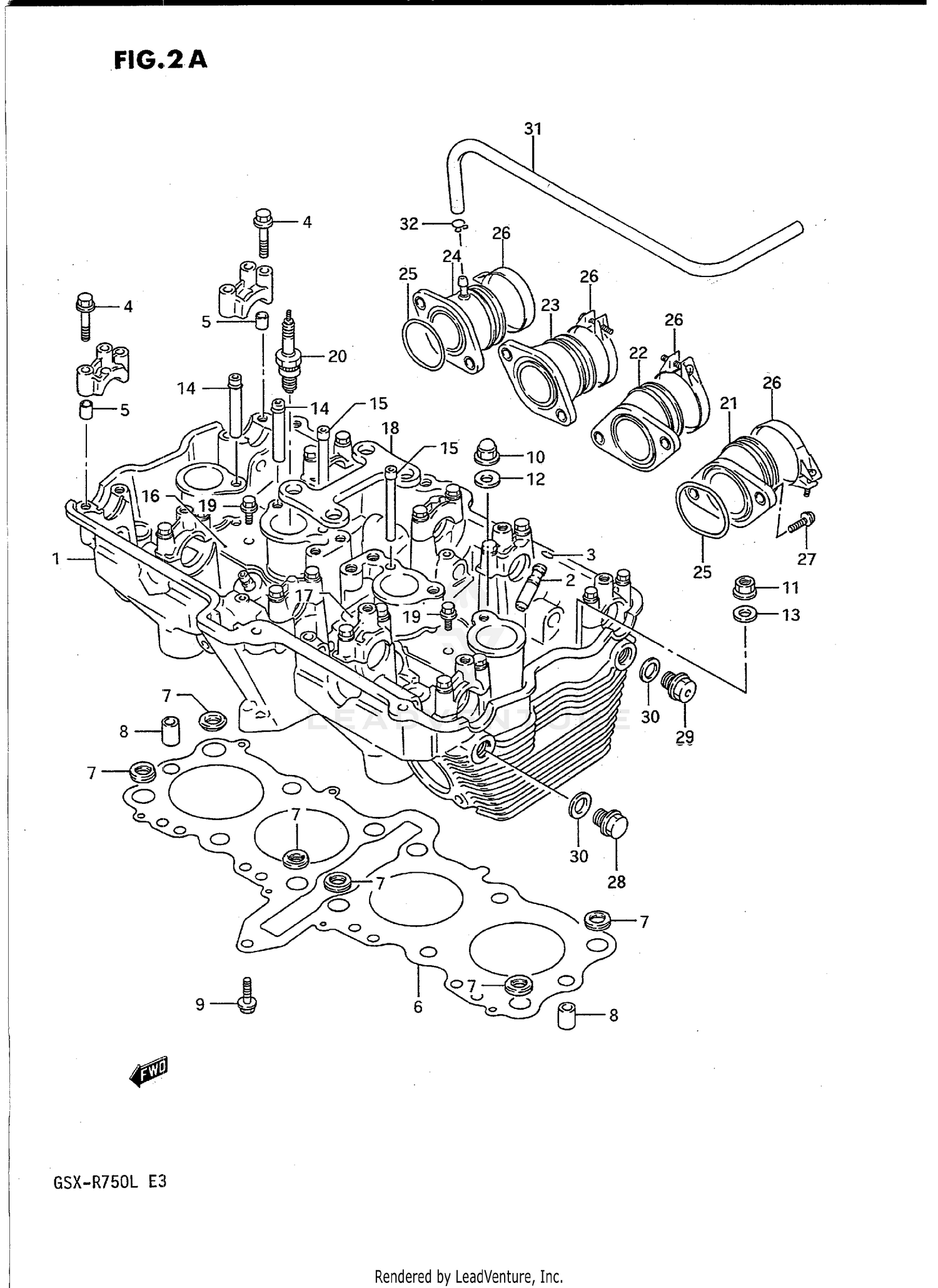

Cylinder Head (model L) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-17D00
|
$916.18 | ||
|
Unavailable |
|||
|
#1
HEAD ASSY, CYLINDER
11100-17D10
|
$790.18 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE
11116-06B70
|
$45.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
.RING,SNAP (10X85)
09381-10004
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X39)
09103-06026
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN
09206-08001
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD
11141-07D01
Superseded by 11141-17D10
|
$136.54 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD
11141-17D10
|
$136.54 | ||
|
Unavailable |
|||
|
#7
O RING
11143-06B00
|
$8.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
04211-11189
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01517-06305
Superseded by 01550-0630A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
09159-10069
|
$7.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08316-16106
Superseded by 08316-1010B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET (10.2X20X2.3)
09168-10031
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (10.5X22X2.3)
09160-10060
Superseded by 09160-10039
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE, OIL NO.1,2
11131-27A00
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE, OIL NO.3
11133-27A00
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, OIL PIPE,RH
11135-27A02
|
$2.87 | ||
|
Unavailable |
|||
|
#17
PLATE, OIL PIPE,LH
11136-27A02
|
$2.87 | ||
|
Unavailable |
|||
|
#18
PLATE, HEAD REINFORCEMENT
11138-40C00
|
$24.08 | ||
|
Unavailable |
|||
|
#19
BOLT
01517-06128
Superseded by 01550-06127
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPARK PLUG (NGK,CR10EK)
09482-00462
|
$13.63 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPARK PLUG (ND,U31ETR)
09482-00463
|
$16.81 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG,SPARK (CR9EK)
09482-00410
|
$14.86 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (DENSO,U27ESR-N)
09482-00411
Superseded by 09482-00459
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#21
NO DESCRIPTION AVAILABLE
13110-17D00
Superseded by 13101-17D01
|
$35.04 | ||
|
Available to order. Add to View Price |
|||
|
#21
NO DESCRIPTION AVAILABLE
13110-17D10
Superseded by 13101-17D10
|
$25.21 | ||
|
Unavailable |
|||
|
#22
PIPE,INTAKE #2
13120-17D00
Superseded by 13102-17D00
|
$43.94 | ||
|
Available to order. Add to View Price |
|||
|
#22
NO DESCRIPTION AVAILABLE
13120-17D10
Superseded by 13102-17D10
|
$25.21 | ||
|
Unavailable |
|||
|
#23
PIPE,INTAKE NO.
13130-17D00
Superseded by 13103-17D01
|
$32.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
NO DESCRIPTION AVAILABLE
13130-17D10
Superseded by 13103-17D10
|
$32.21 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIPE,INTAKE #4
13140-17D00
Superseded by 13104-17D00
|
$53.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
NO DESCRIPTION AVAILABLE
13140-17D10
Superseded by 13104-17D10
|
$48.62 | ||
|
Available to order. Add to View Price |
|||
|
#25
.O RING (D:2.4,ID:41.7)
09280-42003
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
09402-56208
Superseded by 09402-56901
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW
02152-06165
Superseded by 02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG, CYLINDER HEAD EX
09247-14034
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG, CYLINDER HEAD EX
09247-14032
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUG, CYLINDER HEAD IN
09247-14032
|
$5.75 | ||
|
Unavailable |
|||
|
#30
GASKET
09168-14004
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
HOSE,5X10X600
09352-50823-300
Superseded by 44421-13ER0
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
09401-08401
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
