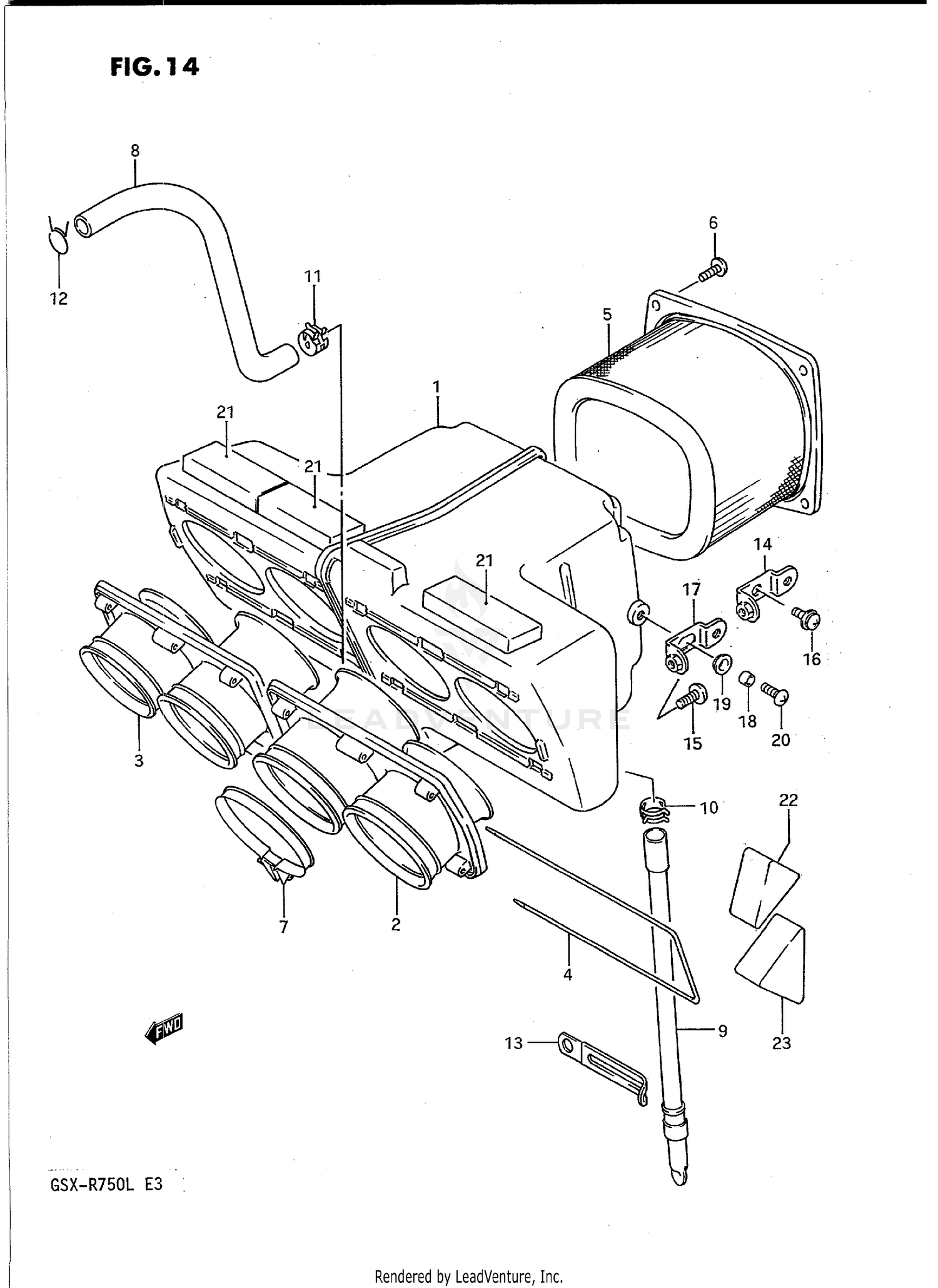

Air Cleaner (model J/k Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
13720-17C00
Superseded by 13720-17C10
|
$150.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTLET,LH
13880-17C00
|
$80.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, OUTLET,RH
13890-17C00
|
$80.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, OUTLET TUBE
13899-17C00
Superseded by 13899-17C01
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
FILTER
13780-17C00
|
$57.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02142-05164
Superseded by 02142-0516A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
09402-66208
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE, BREATHER
13854-17C01
|
$23.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE,DRAIN
13870-11417
Superseded by 13870-11459
|
$20.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
09401-13406
Superseded by 09401-13404
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
09401-16402
Superseded by 09401-16403
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
09401-14301
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
09404-10404
Superseded by 09404-10417
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, CLEANER CASE
13760-17C00
|
$4.07 | ||
|
Unavailable |
|||
|
#15
.SCREW
02142-06166
Superseded by 02142-0616A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
02112-76128
Superseded by 02112-76127
|
$1.89 | ||
|
Unavailable |
|||
|
#17
BRACKET, CLEANER CASE
13760-17C01
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER (6.5X9X5)
09180-06073
Superseded by 09180-06306
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#19
CUSHION, OUTER
09161-09003
Superseded by 09161-09006
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
.SCREW
02142-06166
Superseded by 02142-0616A
|
$1.70 | ||
|
Unavailable |
|||
|
#21
CUSHION, CASE
13848-17C00
|
$3.29 | ||
|
Unavailable |
|||
|
#22
CUSHION, AIR VENT HOSE, NO.1
13897-17C00
|
$3.31 | ||
|
Unavailable |
|||
|
#23
CUSHION, AIR VENT HOSE, NO.2
13898-17C00
|
$4.11 | ||
|
Unavailable |
|||
