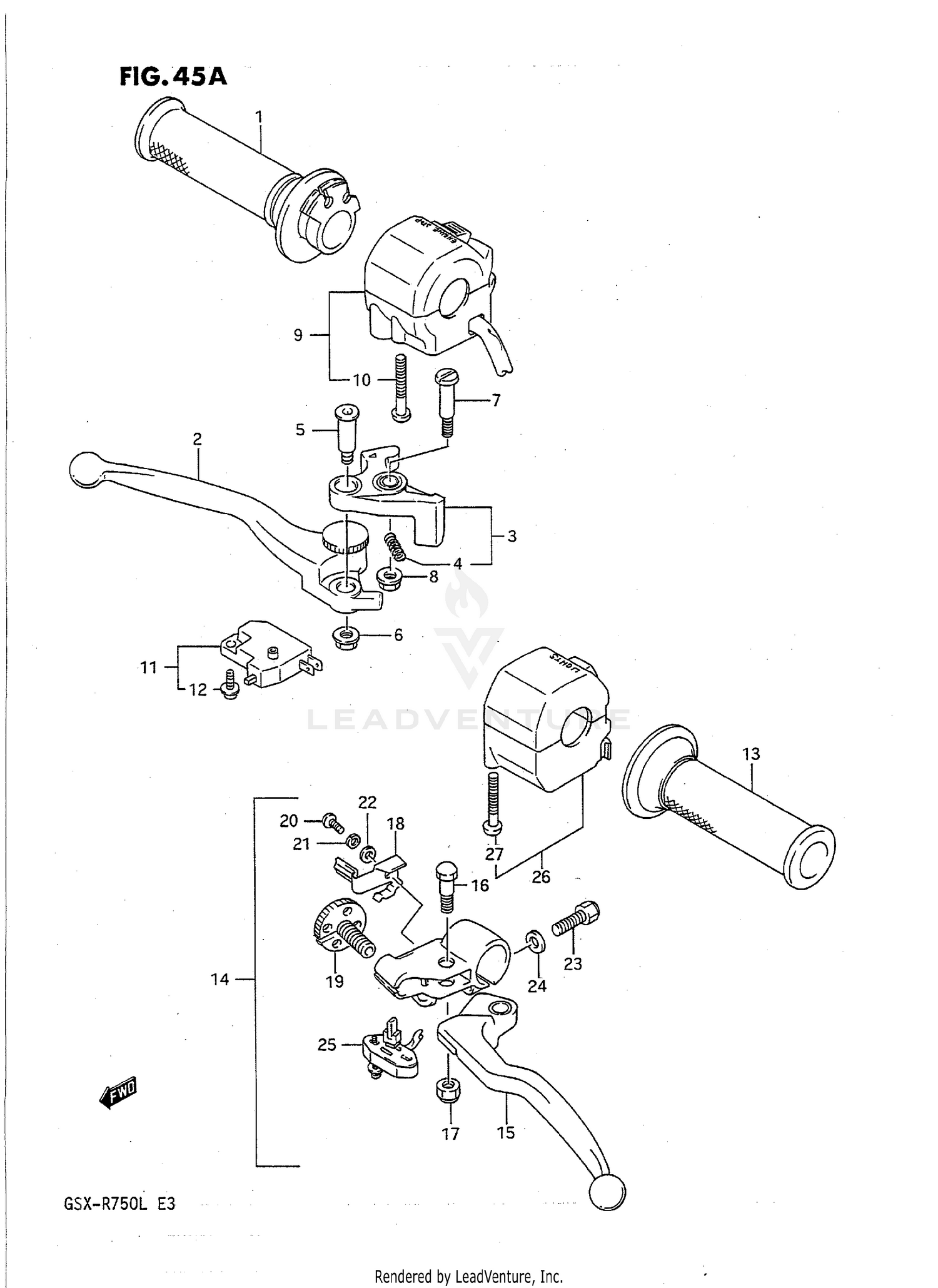

Handle Switch (model K/l) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRIP, THROTTLE
57110-05C01
|
$32.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER, ADJUST
57420-32C00
|
$37.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
KNOCKER
57430-40C00
Superseded by 57430-40C10
|
$66.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING
57438-32C00
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, LEVER
57437-32C00
Superseded by 57437-32C01
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
08319-31065
Superseded by 08319-3106A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, LEVER
57431-17C00
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08316-16064
Superseded by 08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SWITCH ASSY, RH
37200-17C31
Superseded by 37200-45C22
|
$119.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
.SCREW
02112-05455
Superseded by 02112-0545B
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWITCH ASSY,FR BRAKE
57460-17C00
Superseded by 57460-14J02
|
$49.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
.SCREW,WITH WASHER (4X12)
57465-17C00
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GRIP, LH
57211-05C00
|
$15.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER ASSY,CLUT
57500-17C01
Superseded by 57500-17C02
|
$44.62 | ||
|
Unavailable |
|||
|
#15
LEVER
57620-27A30
Superseded by 57620-27A31
|
$28.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
.BOLT, BRAKE LEVER PIVOT
57431-49110
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
.NUT
08319-21065
Superseded by 08319-2106B
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#18
ADJUSTER, CABLE
57644-20A02
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#19
.NUT, CABLE ADJUSTER
57641-20A03
Superseded by 57641-33E21
|
$46.39 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
02112-04068
Superseded by 02112-0406B
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#21
LOCK WASHER
08321-21047
Superseded by 08321-0104A
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
08322-21047
Superseded by 08322-01047
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
01204-06204
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#24
.WASHER
08322-21064
Superseded by 08322-0106B
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SWITCH, CLUTCH
57560-17C00
|
$17.26 | ||
|
Unavailable |
|||
|
#26
SWITCH ASSY,HAN
37400-17C11
Superseded by 37400-06B20
|
$179.56 | ||
|
Available to order. Add to View Price |
|||
|
#27
.SCREW
02112-05455
Superseded by 02112-0545B
|
$2.81 | ||
|
Unavailable |
|||
