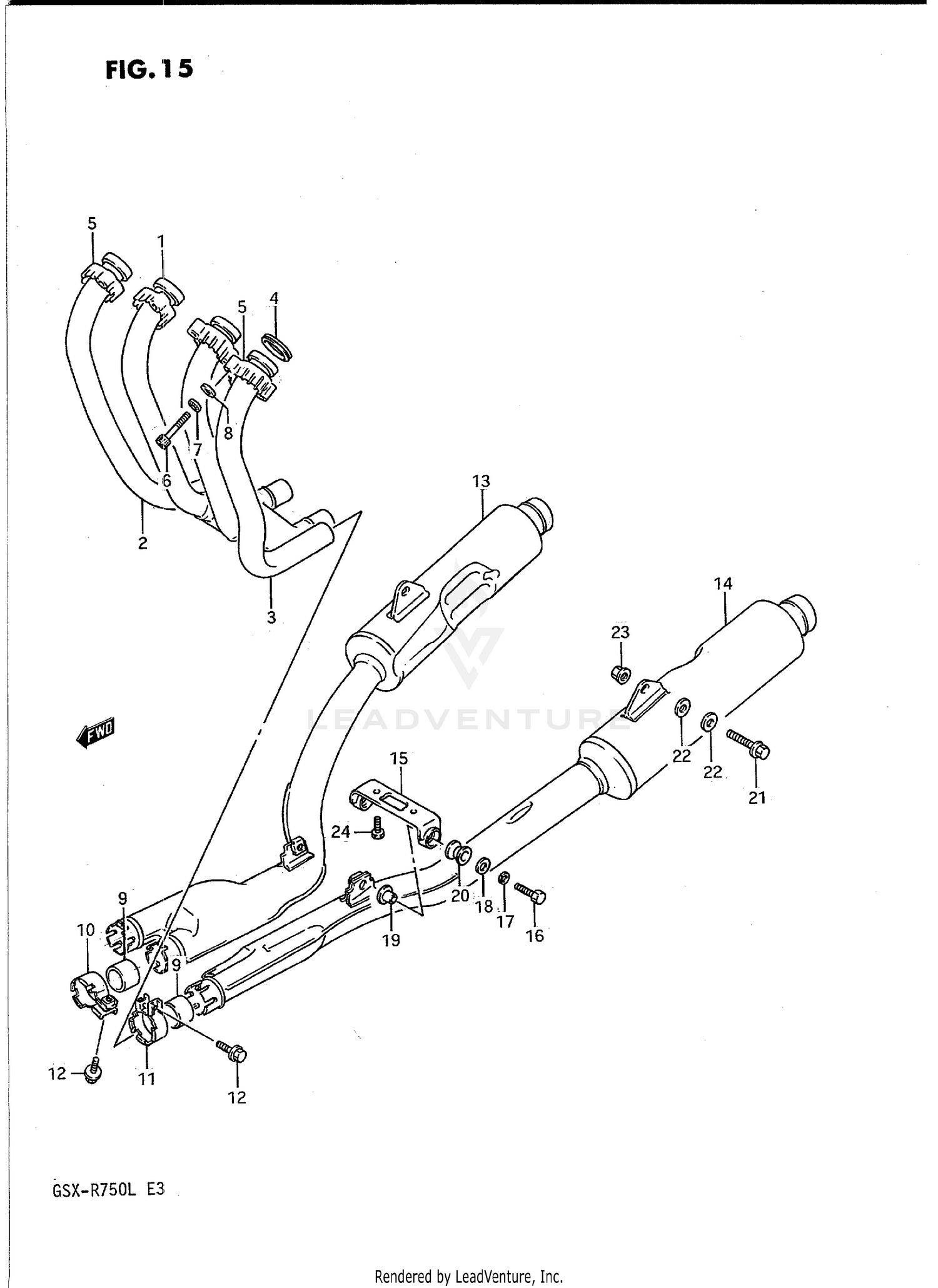

Muffler (model J/k) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST ASSY, CENTER
14100-17C02-H01
|
$158.31 | ||
|
Unavailable |
|||
|
#2
PIPE, EXHAUST RH
14150-17C01
|
$73.26 | ||
|
Unavailable |
|||
|
#3
PIPE, EXHAUST LH
14160-17C01
|
$76.61 | ||
|
Unavailable |
|||
|
#4
.GASKET,EXHAUST
14181-17C00
Superseded by 14181-18C00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
.GASKET,EXHAUST
14181-18C00
|
$9.32 | ||
|
Unavailable |
|||
|
#5
CLAMP, EXHAUST PIPE
14182-31302
|
$26.14 | ||
|
Unavailable |
|||
|
#6
BOLT
07110-08355
Superseded by 07130-0835B
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
LOCK WASHER
09164-08015
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,LOCK
08322-11084
Superseded by 08322-0108A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
CONNECTOR, MUFFLER
14771-17C00
|
$19.33 | ||
|
Unavailable |
|||
|
#10
CLAMP, MUFFLER CONNECTOR RH
14459-11540
|
$8.39 | ||
|
Unavailable |
|||
|
#11
CLAMP, MUFFLER CONNECTOR LH
14469-11540
|
$8.99 | ||
|
Unavailable |
|||
|
#12
.BOLT
01517-08254
Superseded by 01550-0825A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
NO DESCRIPTION AVAILABLE
14310-17C30-H01
Superseded by 14310-17C31-H01
|
$206.37 | ||
|
Unavailable |
|||
|
#13
MUFFLER, RH
14305-18C30-H01
|
$271.46 | ||
|
Unavailable |
|||
|
#14
NO DESCRIPTION AVAILABLE
14340-17C30-H01
Superseded by 14340-17C31-H01
|
$206.37 | ||
|
Unavailable |
|||
|
#14
MUFFLER, LH
14306-18C30-H01
|
$271.46 | ||
|
Unavailable |
|||
|
#15
DAMPER, MUFFLER SUPPORT
14770-17C10
|
$13.94 | ||
|
Unavailable |
|||
|
#16
BOLT
01107-08355
Superseded by 01500-0835B
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER,LOCK
08321-21084
Superseded by 08321-0108A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, EXHAUST SUPPORT
09160-08057
Superseded by 09160-08135
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER
09180-08151
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION
09320-12043
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (10X38)
09103-10206
|
$3.61 | ||
|
Unavailable |
|||
|
#22
WASHER, LOWER (10.5X24X2.3)
09160-10066
Superseded by 09160-10093
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
08316-16105
Superseded by 08316-1010B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
09100-08240
Superseded by 09100-08299
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
