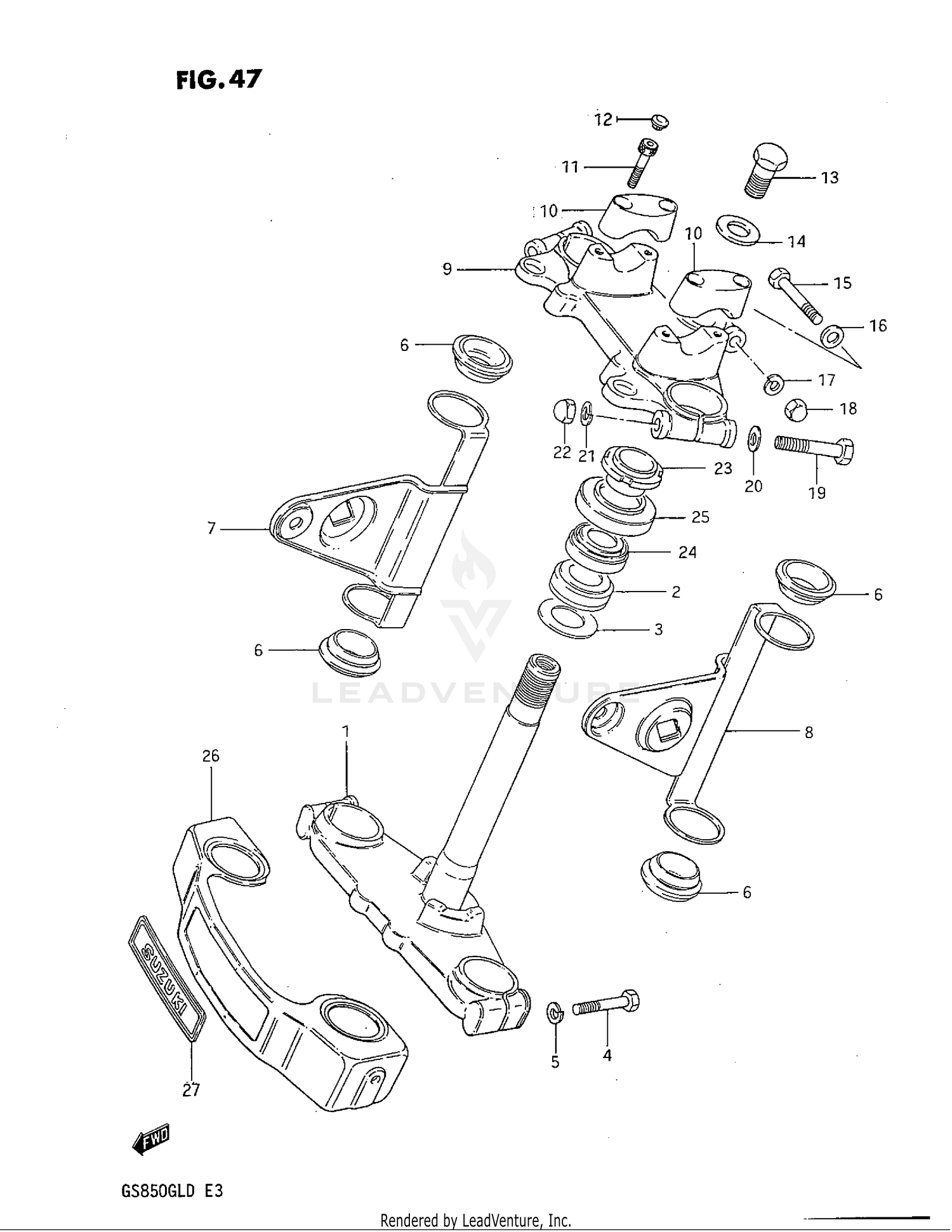

Steering Stem (model D) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STEERING STEM (BLACK)
51410-45380-291
|
$158.29 | ||
|
Unavailable |
|||
|
#2
RT 30X55X17 BEA
09265-30005
Superseded by 09265-30034
|
$72.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM, 30X40X1.5
08211-30402
Superseded by 09181-30184
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01107-08358
Superseded by 01500-0835B
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CUSHION, BRACKET
51553-49000
Superseded by 51553-34300
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, HEADLAMP RH
51530-45380
|
$43.08 | ||
|
Unavailable |
|||
|
#8
BRACKET, HEADLAMP LH
51540-45380
|
$48.46 | ||
|
Unavailable |
|||
|
#9
STEM HEAD, STEERING
51311-45380-291
|
$102.08 | ||
|
Unavailable |
|||
|
#10
NO DESCRIPTION AVAILABLE
56211-49500-291
Superseded by 56211-26D00
|
$23.41 | ||
|
Unavailable |
|||
|
#11
BOLT, STEERING DAMPER
09106-08013
Superseded by 07130-0830A
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP
09250-06004
|
$1.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT
51353-45380
Superseded by 51352-43530
|
$17.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
51356-45380
|
$3.59 | ||
|
Unavailable |
|||
|
#15
BOLT
01107-08508
Superseded by 01500-08507
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
08322-21088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
.WASHER
08321-31088
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#18
NUT
08313-11088
Superseded by 08313-10087
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01107-10558
Superseded by 01500-1055A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
08322-21108
Superseded by 08322-01107
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
LOCK WASHER
08321-31108
Superseded by 08321-01107
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
08313-11108
Superseded by 08313-10107
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, STEERING STEM
51631-34200
|
$19.97 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, UPPER
09265-25008
|
$28.88 | ||
|
Unavailable |
|||
|
#25
SEAL,DUST
51643-40502
Superseded by 51643-40503
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, FRONT FORK
51871-45301
|
$23.66 | ||
|
Unavailable |
|||
|
#27
EMBLEM, FRONT FORK COVER
68211-45310
|
$12.25 | ||
|
Unavailable |
|||
