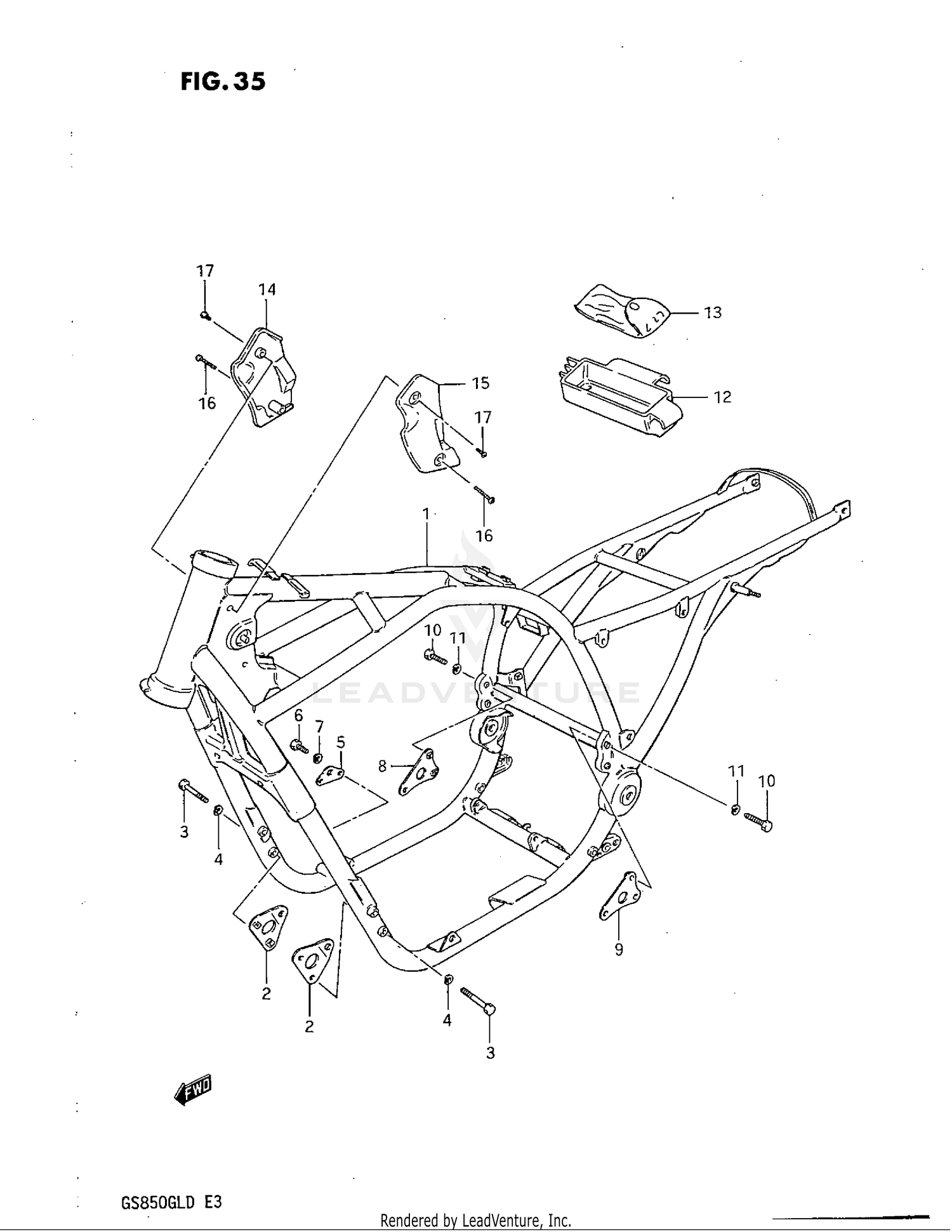

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
41100-45351-019
Superseded by 41100-45352-019
|
$806.00 | ||
|
Unavailable |
|||
|
#1
FRAME (BLACK)
41100-49251-019
|
$972.15 | ||
|
Unavailable |
|||
|
#2
PLATE, NO.1 (BLACK)
41910-45100-019
Superseded by 41910-45101-019
|
$10.01 | ||
|
Unavailable |
|||
|
#2
PLATE, NO.1 (BLACK)
41910-45101-019
|
$10.01 | ||
|
Unavailable |
|||
|
#3
BOLT
01107-08658
Superseded by 01500-0865B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
PLATE, NO.2 (BLACK)
41993-45000-019
|
$7.76 | ||
|
Unavailable |
|||
|
#6
PLUG, DRAIN
01107-08168
Superseded by 01500-0816B
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#8
PLATE, NO.4 RH (BLACK)
41970-45100-019
|
$7.37 | ||
|
Unavailable |
|||
|
#9
PLATE, NO.4 LH (BLACK)
41980-45350-019
|
$7.37 | ||
|
Unavailable |
|||
|
#10
BOLT
01107-08408
Superseded by 01500-0840A
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#12
HOLDER, TOOL
41551-45300
|
$8.36 | ||
|
Unavailable |
|||
|
#13
TOOL ASSY
09800-00231
Superseded by 09800-21025
|
$76.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, FRAME HEAD RH
51876-45300
|
$9.19 | ||
|
Unavailable |
|||
|
#15
COVER, FRAME HEAD LH
51886-45300
|
$9.24 | ||
|
Unavailable |
|||
|
#16
NO DESCRIPTION AVAILABLE
02142-05505
Superseded by 02142-05503
|
$1.57 | ||
|
Unavailable |
|||
|
#17
SCREW, UPPER
02142-05107
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
