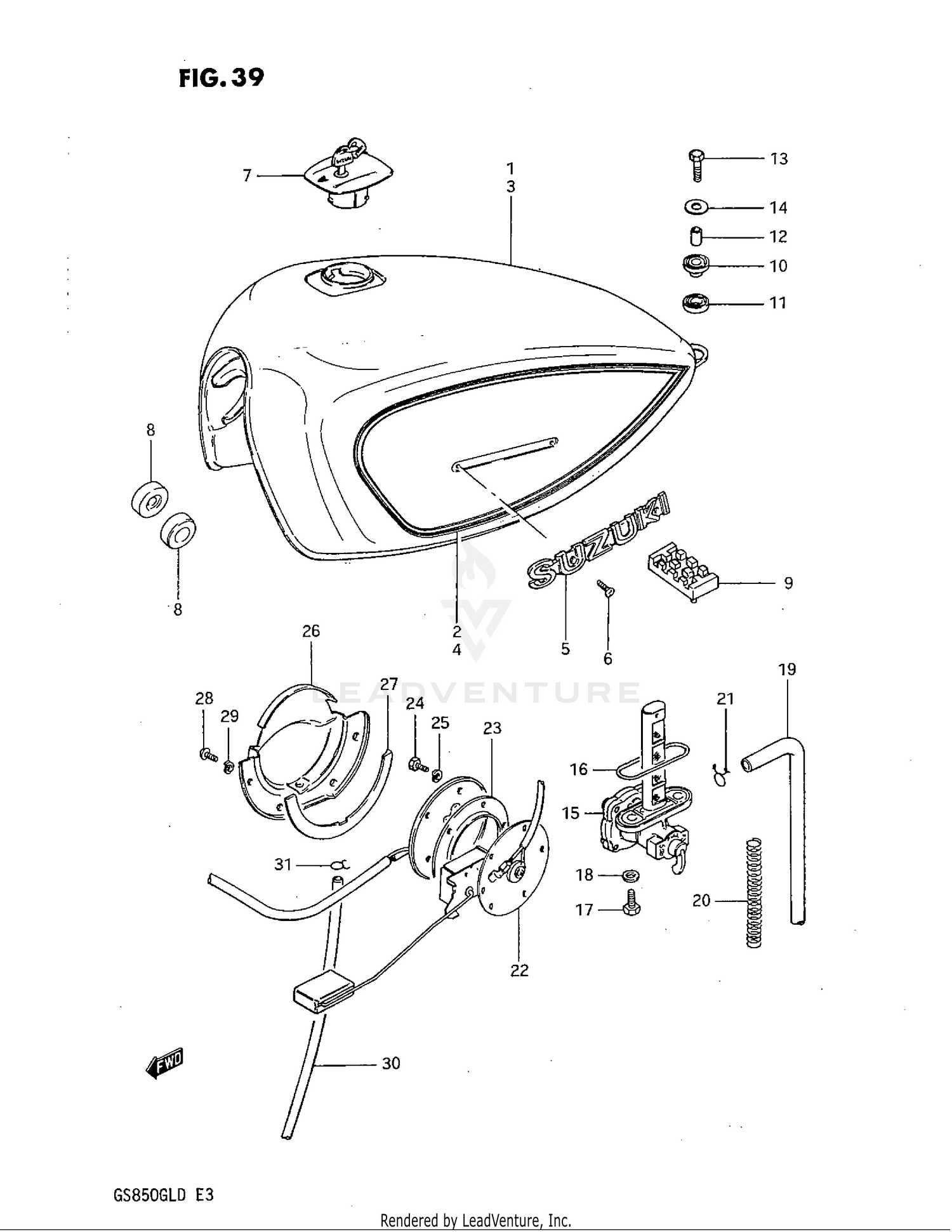

Fuel Tank (model D) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
44100-45330-86B
Superseded by 44110-45303-13L
|
$305.55 | ||
|
Unavailable |
|||
|
#2
TAPE SET
68110-45330-86A
|
$72.06 | ||
|
Unavailable |
|||
|
#3
NO DESCRIPTION AVAILABLE
44100-45330-81L
Superseded by 44110-45303-13L
|
$305.55 | ||
|
Unavailable |
|||
|
#4
TAPE SET
68110-45330-81N
|
$59.70 | ||
|
Unavailable |
|||
|
#5
EMBLEM
68111-11400
|
$31.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02132-03065
Superseded by 02122-0306B
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP SET,FUEL TA
44200-49017-KEY
Superseded by 44200-49811
|
$160.72 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION
09329-10007
Superseded by 09329-10026
|
$2.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CUSHION,FUEL TA
44541-34500
Superseded by 44541-34501
|
$17.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION (9X24X18)
09320-10020
Superseded by 09320-10071
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION, REAR NO.2
09320-14013
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
09180-06072
Superseded by 09180-06271
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, REAR
01107-06308
Superseded by 01500-06307
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, FRONT
09160-06004
Superseded by 09160-06134
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
COCK ASSY,FUEL
44300-45370
Superseded by 44300-45373
|
$92.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
O RING
44348-49170
Superseded by 44348-49171
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
09128-06006
Superseded by 09128-06057
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET (5.8X13X1.2)
09168-06010
Superseded by 09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HOSE(7X10.2X200
09343-07073
Superseded by 09352-70104-00B
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING
09440-13017
Superseded by 09440-13043
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
09401-10403
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
GAUGE ASSY, FUEL LEVEL
34810-45310
|
$51.57 | ||
|
Unavailable |
|||
|
#23
GASKET
34825-45100
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
01104-05108
Superseded by 01500-0510B
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#25
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE, FUEL DRAIN
34885-34500
|
$21.51 | ||
|
Unavailable |
|||
|
#27
GASKET,FUEL DRA
34888-34500
Superseded by 34888-34501
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW
02112-05088
Superseded by 02112-05087
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#29
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.29 | ||
|
Unavailable |
|||
|
#30
HOSE
09343-05165
Superseded by 09352-50005-00B
|
$17.48 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP
09401-08402
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
