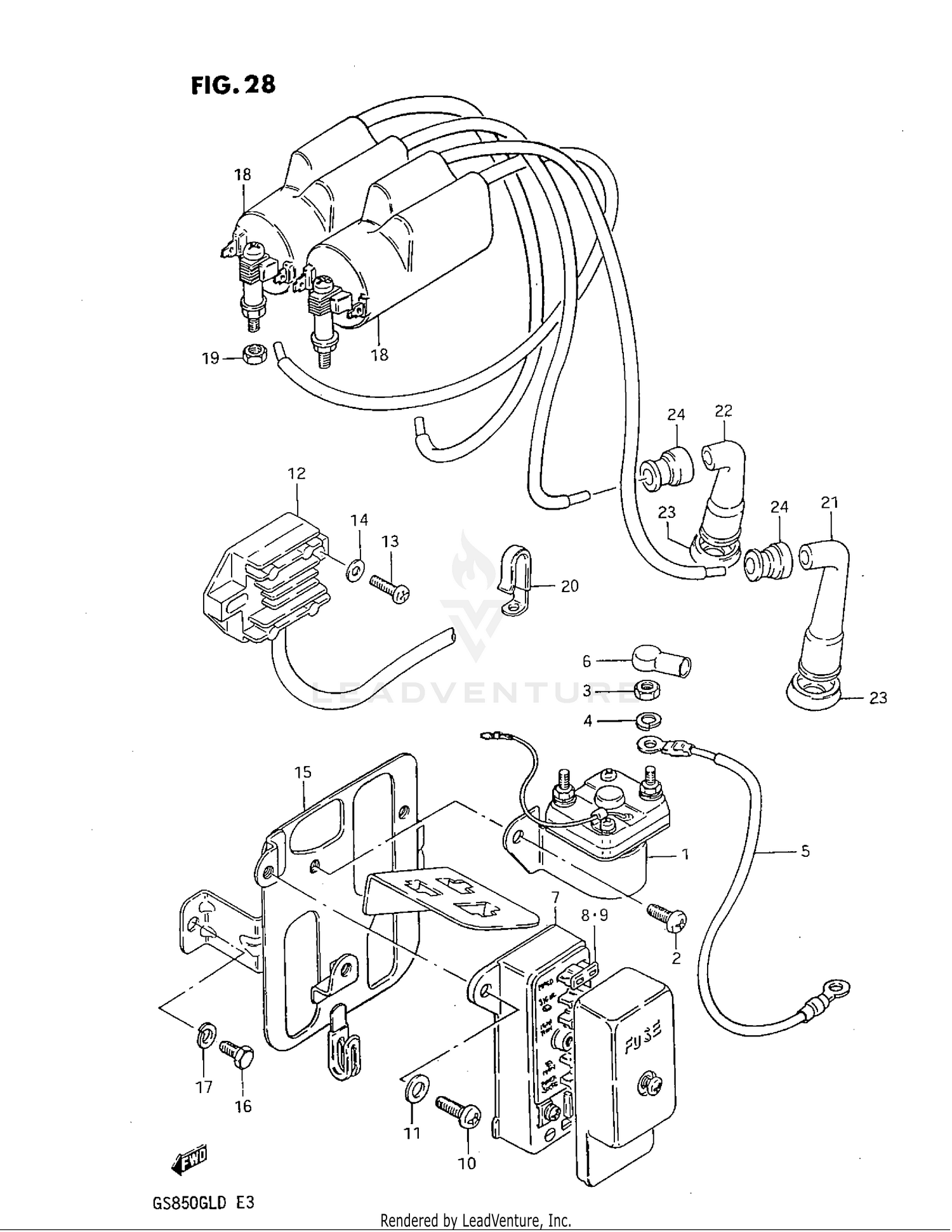

Electrical (model D) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STAR
31800-37020
Superseded by 31800-37021
|
$94.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
02112-06108
Superseded by 02112-06107
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
.NUT
08310-22068
Superseded by 08310-00067
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WIRE, STARTING LEAD
33850-49410
Superseded by 33850-00A01
|
$41.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
.CAP, STARTER MOTOR
31861-35100
Superseded by 31861-48B10
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, TERMINAL
31861-49400
|
$2.04 | ||
|
Unavailable |
|||
|
#7
BOX ASSY,FUSE
36740-49400
Superseded by 36740-45D00
|
$78.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE (10A)
09481-10101
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE (15A)
09481-15101
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02112-06128
Superseded by 02112-06127
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
08322-21068
Superseded by 08322-01067
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
RECTIFIER ASSY
32800-47120
Superseded by 32800-47121
|
$221.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
02112-06208
Superseded by 02112-06207
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER
08322-21068
Superseded by 08322-01067
|
$2.33 | ||
|
Unavailable |
|||
|
#15
PLATE, PARTS HOLDER
47410-49100
|
$9.84 | ||
|
Unavailable |
|||
|
#16
BOLT
01107-06108
Superseded by 01500-06107
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
Unavailable |
|||
|
#18
COIL ASSY, IGNI
33410-34210
Superseded by 33410-31311
|
$210.94 | ||
|
Available to order. Add to View Price |
|||
|
#19
.NUT
08310-11068
Superseded by 08310-00067
|
$2.30 | ||
|
Unavailable |
|||
|
#20
CLAMP
09403-06307
Superseded by 09403-06329
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP, SPARK PLUG (L)
33510-45010
|
$33.18 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, SPARK PLUG (S)
33510-43010
|
$32.26 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAL, SPARK PLUG
33541-69010
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL,HIGH TENSION CORD
33542-98000
Superseded by 33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
