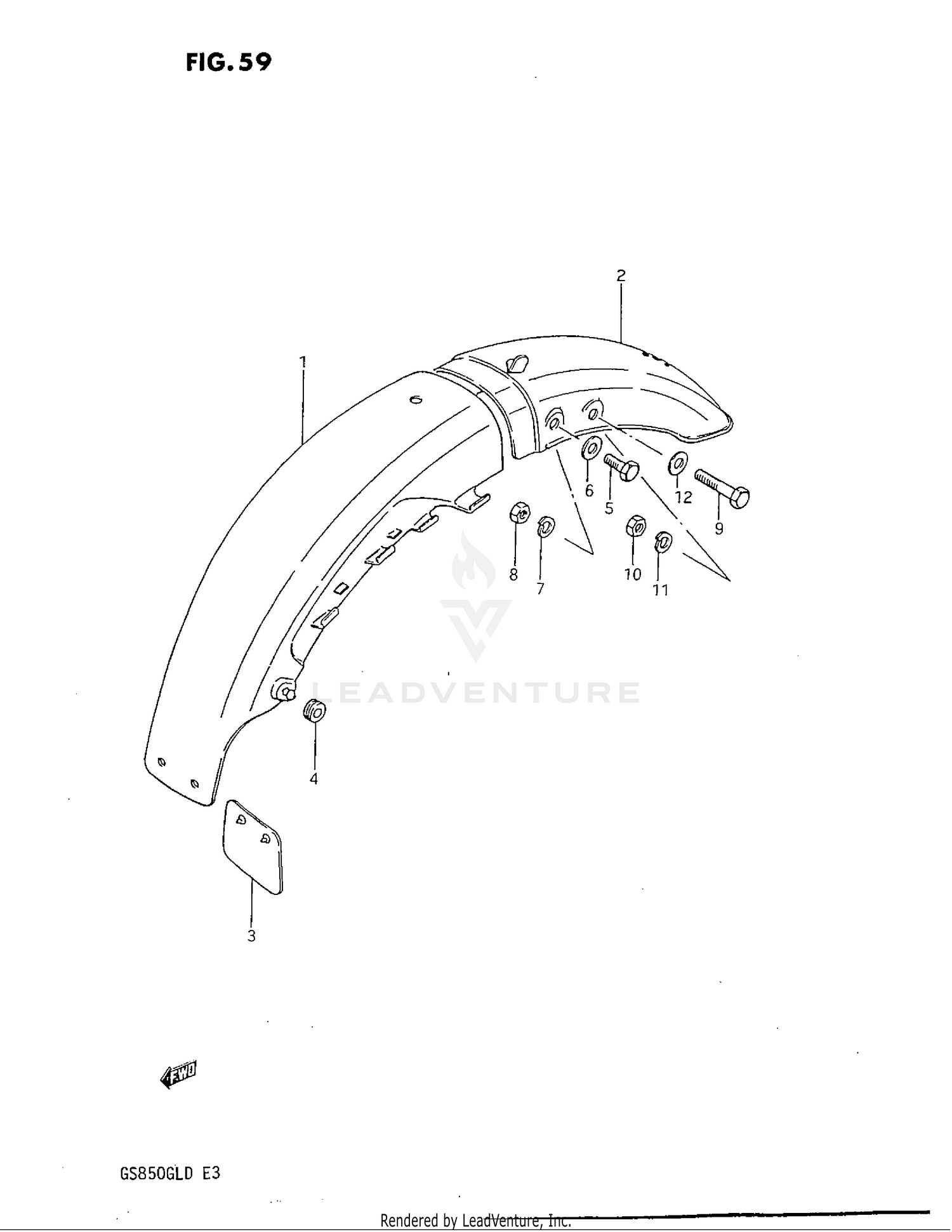

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY,RR FENDER
63112-49110
Superseded by 63112-49004
|
$75.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
FENDER, REAR
63110-45310
|
$74.28 | ||
|
Unavailable |
|||
|
#3
MUD GUARD, REAR FENDER
63411-31900
|
$11.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION,FUEL TANK COVER BRKT
09320-08013
Superseded by 09320-08509
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, DRAIN
01107-08168
Superseded by 01500-0816B
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
NUT
08310-22088
Superseded by 08310-00087
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT
01204-08257
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
08310-22088
Superseded by 08310-00087
|
$2.30 | ||
|
Unavailable |
|||
|
#11
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#12
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
Unavailable |
|||
