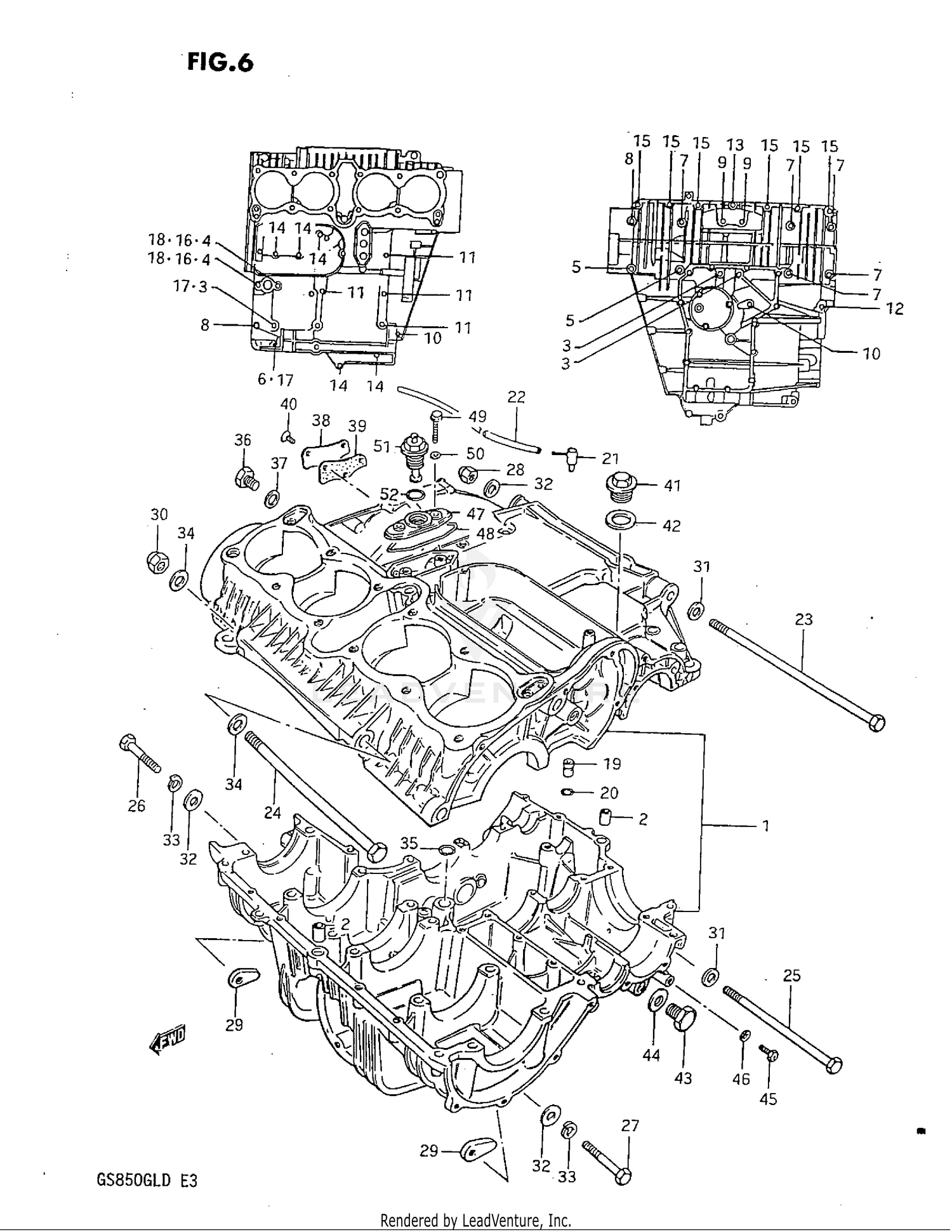

Crankcase (model D) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
11300-49860
Superseded by 11300-49861
|
$1,142.35 | ||
|
Unavailable |
|||
|
#2
PIN
09206-13001
Superseded by 04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT (8X125)
09103-08094
Superseded by 09103-08182
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (8X110)
09103-08092
|
$1.57 | ||
|
Unavailable |
|||
|
#5
BOLT (8X100)
09103-08061
Superseded by 09103-08230
|
$2.61 | ||
|
Unavailable |
|||
|
#6
BOLT (8X105)
09103-08093
Superseded by 09103-08179
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01517-08905
Superseded by 01550-0890B
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01517-08655
Superseded by 01550-0865A
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01517-08605
Superseded by 01550-0860A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01517-06905
Superseded by 01550-0690B
|
$4.23 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01517-06755
Superseded by 01550-0675A
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01517-06555
Superseded by 01550-0655B
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01517-06505
Superseded by 01550-0650A
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01517-06455
Superseded by 01550-0645A
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01517-06355
Superseded by 01550-0635A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
08313-11088
Superseded by 08313-10087
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
.NUT
08316-16085
Superseded by 08316-1008B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET (8.2X14X1)
09168-08008
Superseded by 09168-08016
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NOZZLE, OIL GALLERY
09364-05005
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#20
O RING
09280-03003
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG, BEVEL GEAR BREATHER
24821-45100
|
$10.17 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE(2X5X600)
09343-02009
Superseded by 09352-20504-600
|
$8.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NO DESCRIPTION AVAILABLE
09100-10144
Superseded by 09100-10074-XC0
|
$17.73 | ||
|
Unavailable |
|||
|
#24
SHAFT,RR SWNG P
61211-39000
Superseded by 61211-39002
|
$28.81 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT (10x165)
09100-10137
Superseded by 09100-10078
|
$13.81 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
01107-10605
Superseded by 01500-1060A
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
01107-10505
Superseded by 01500-1050A
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
09159-10028
|
$1.59 | ||
|
Unavailable |
|||
|
#29
NUT
09159-10020
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
08319-21125
Superseded by 08319-2112B
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER (10.5X20X3.2)
09160-10054
Superseded by 09160-10005
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER
08322-11105
Superseded by 08322-0110A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
LOCK WASHER
08321-21105
Superseded by 08321-0110A
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER
08322-11125
|
$0.41 | ||
|
Unavailable |
|||
|
#35
O RING
09280-13001
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#36
.PLUG (14X12)
09247-14012
Superseded by 09247-14026
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#37
GASKET
09168-14004
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
CAP, OIL GALLERY
11394-45000
|
$3.74 | ||
|
Unavailable |
|||
|
#39
GASKET,OIL GALL
11497-45000
Superseded by 11497-45000-H17
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW
02122-06168
Superseded by 02122-06167
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#41
PLUG
09247-20002
Superseded by 09248-20003
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#42
GASKET 20.1X27X
09168-20004
Superseded by 09168-20003
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#43
PLUG, OIL DRAIN
09247-14019
Superseded by 09247-14036
|
$7.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
GASKET
09168-14004
|
$1.98 | ||
|
Unavailable |
|||
|
#45
SCREW (6X10)
09128-06004
Superseded by 09128-06044
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#46
GASKET (5.8X13X1.2)
09168-06009
Superseded by 09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
HOUSING, OIL PRESSURE SWITCH
16445-45010
Superseded by 16445-45000
|
$29.10 | ||
|
Available to order. Add to View Price |
|||
|
#48
O RING
16448-45000
|
$11.81 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT
01517-06255
Superseded by 01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#50
GASKET (5.8X13X1.2)
09168-06009
Superseded by 09168-06023
|
$2.53 | ||
|
Unavailable |
|||
|
#51
SWITCH ASSY,OIL
37820-45060
Superseded by 37820-45061
|
$35.73 | ||
|
Available to order. Add to View Price |
|||
|
#52
O RING
09280-19001
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
