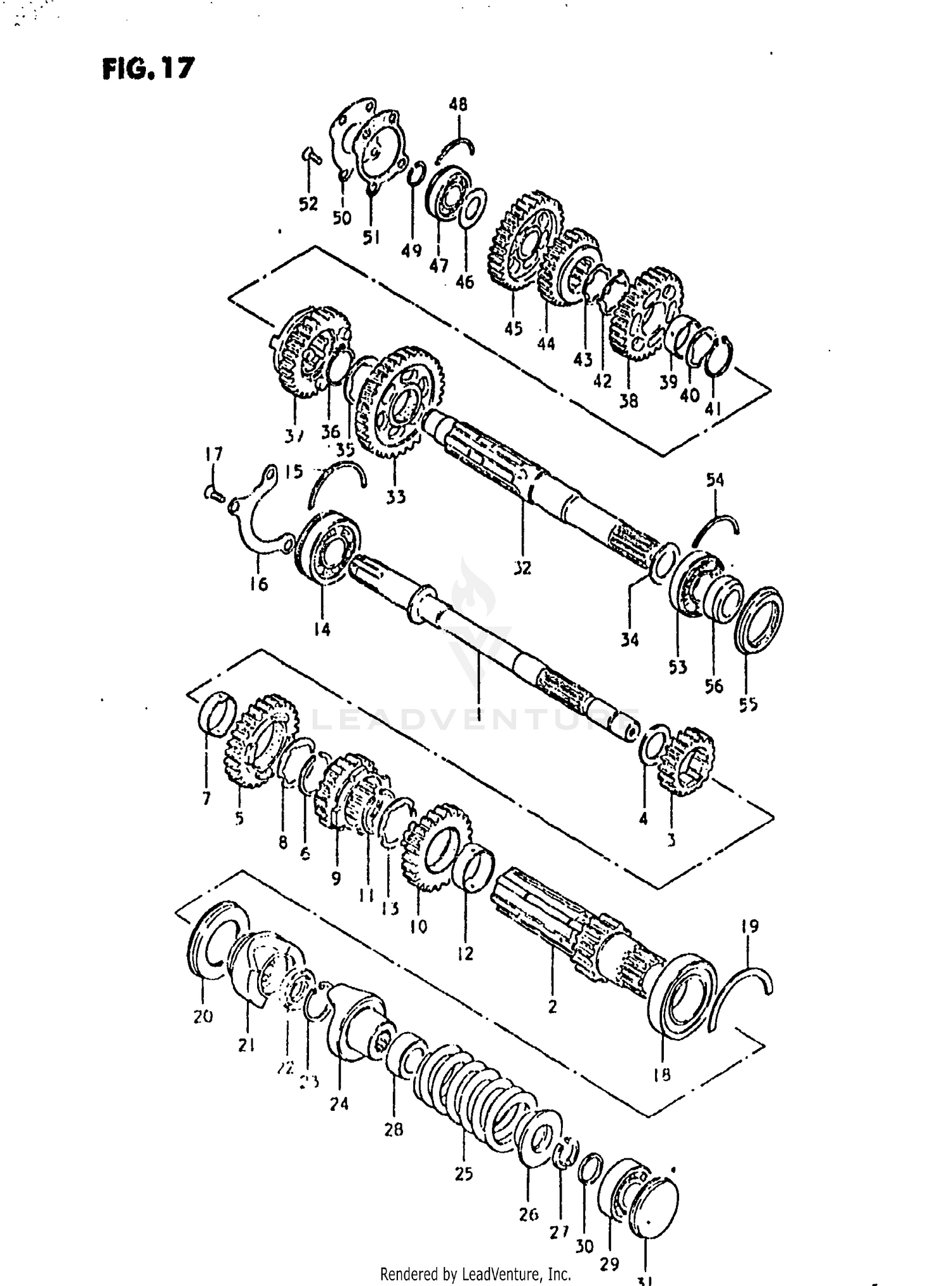

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
24121-45102
Superseded by 24121-45103
|
$199.91 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT, OUTER
24141-45102
|
$114.35 | ||
|
Unavailable |
|||
|
#3
GEAR, 2ND DRIVE (NT:18)
24221-45101
Superseded by 24221-45102
|
$71.25 | ||
|
Unavailable |
|||
|
#3
GEAR, 2ND DRIVE (NT:18)
24221-45110
|
$63.96 | ||
|
Unavailable |
|||
|
#4
WASHER
09160-21010
|
$6.70 | ||
|
Unavailable |
|||
|
#5
GEAR, 5TH DRIVE (NT:26)
24250-45102
|
$128.87 | ||
|
Unavailable |
|||
|
#6
RING
09380-32002
|
$2.54 | ||
|
Unavailable |
|||
|
#7
SPACER
24242-45100
|
$14.46 | ||
|
Unavailable |
|||
|
#8
LOCK WASHER
24243-45101
|
$5.50 | ||
|
Unavailable |
|||
|
#9
NO DESCRIPTION AVAILABLE
24231-45103
Superseded by 24231-45104
|
$76.75 | ||
|
Unavailable |
|||
|
#10
GEAR, 4TH DRIVE (NT:24)
24240-45100
|
$80.63 | ||
|
Unavailable |
|||
|
#11
RING
09380-32002
|
$2.54 | ||
|
Unavailable |
|||
|
#12
SPACER
24242-45100
|
$14.46 | ||
|
Unavailable |
|||
|
#13
LOCK WASHER
24243-45101
|
$5.50 | ||
|
Unavailable |
|||
|
#14
BEARING, LH
09262-25051
Superseded by 09262-25105
|
$74.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
C RING
09390-62006
Superseded by 09390-62012
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, BEARING
24741-45000
|
$8.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
02122-06168
Superseded by 02122-06167
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, MIDDLE
09262-32003
|
$56.32 | ||
|
Unavailable |
|||
|
#19
C RING
09390-52004
|
$1.62 | ||
|
Unavailable |
|||
|
#20
OIL SEAL
09283-40005
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
DOG, OUT PUT CAM
22521-45101
|
$51.17 | ||
|
Unavailable |
|||
|
#22
OIL SEAL
09283-20032
|
$11.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
08331-21329
Superseded by 08331-41329
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
DOG, INPUT CAM
22511-45102
|
$42.21 | ||
|
Unavailable |
|||
|
#25
SPRING
09440-35002
|
$20.20 | ||
|
Unavailable |
|||
|
#26
SLIDING STOPPER
22531-45100
Superseded by 22531-45101
|
$12.30 | ||
|
Unavailable |
|||
|
#27
STOPPER
22541-45100
|
$4.75 | ||
|
Unavailable |
|||
|
#28
GUIDE, SPRING
22551-45101
|
$4.54 | ||
|
Unavailable |
|||
|
#29
BEARING, DRIVE SHAFT RH
09262-17008
Superseded by 09262-17023
|
$21.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SPACER
09180-17052
|
$2.59 | ||
|
Unavailable |
|||
|
#31
PLUG
09241-40003
|
$9.11 | ||
|
Unavailable |
|||
|
#32
NO DESCRIPTION AVAILABLE
24131-45103
Superseded by 24131-45104
|
$157.80 | ||
|
Unavailable |
|||
|
#33
GEAR, 1ST DRIVEN (NT:35)
24310-45100
|
$74.14 | ||
|
Unavailable |
|||
|
#34
WASHER, LH
08211-25383
|
$1.63 | ||
|
Unavailable |
|||
|
#35
WASHER, RH (T:1)
09167-28001
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#36
CIRCLIP
08331-11289
Superseded by 08331-31289
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#37
GEAR, 4TH DRIVEN (NT:27)
24341-45100
|
$91.27 | ||
|
Unavailable |
|||
|
#38
GEAR 3RD DRIVEN
24331-45100
Superseded by 24331-49202
|
$161.78 | ||
|
Available to order. Add to View Price |
|||
|
#39
BUSHING
24332-49000
|
$19.96 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER (T:1)
09167-28001
|
$5.00 | ||
|
Unavailable |
|||
|
#41
CIRCLIP
08331-11289
Superseded by 08331-31289
|
$2.67 | ||
|
Unavailable |
|||
|
#42
LOCK WASHER, RH (T:1)
09169-28001
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, RH (T:1.5)
09167-28002
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#44
GEAR, 5TH DRIVEN (NT:25)
24351-45102
Superseded by 24351-45104
|
$80.63 | ||
|
Unavailable |
|||
|
#44
GEAR, 5TH DRIVEN (NT:25)
24351-45103
Superseded by 24351-45104
|
$80.63 | ||
|
Unavailable |
|||
|
#44
GEAR, 5TH DRIVEN (NT:25)
24351-45104
|
$80.63 | ||
|
Unavailable |
|||
|
#44
GEAR, 5TH DRIVEN (NT:24)
24351-45110
|
$103.79 | ||
|
Unavailable |
|||
|
#45
GEAR, 2ND DRIVEN (NT:32)
24320-45100
Superseded by 24320-45102
|
$80.63 | ||
|
Unavailable |
|||
|
#45
GEAR, 2ND DRIVEN (NT:32)
24320-45101
Superseded by 24320-45102
|
$80.63 | ||
|
Unavailable |
|||
|
#45
GEAR, 2ND DRIVEN (NT:32)
24320-45102
|
$80.63 | ||
|
Unavailable |
|||
|
#45
GEAR, 2ND DRIVEN (NT:31)
24320-45110
|
$68.33 | ||
|
Unavailable |
|||
|
#46
WASHER
08211-20341
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#47
BEARING, RH
09262-20049
|
$19.17 | ||
|
Unavailable |
|||
|
#48
C RING
09390-47003
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#49
CIRCLIP
09380-20007
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#50
PLATE, DRIVESHAFT
24761-45100
|
$6.32 | ||
|
Unavailable |
|||
|
#51
GASKET,DR SHFT
24762-45000
Superseded by 24762-45000-H17
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#52
SCREW
02122-06168
Superseded by 02122-06167
|
$1.82 | ||
|
Unavailable |
|||
|
#53
BEARING
09262-25055
Superseded by 09262-25030
|
$52.14 | ||
|
Available to order. Add to View Price |
|||
|
#54
C RING
09390-52002
|
$1.36 | ||
|
Unavailable |
|||
|
#55
OIL SEAL
09283-35015
|
$21.08 | ||
|
Available to order. Add to View Price |
|||
|
#56
SPACER
24136-45100
|
$11.49 | ||
|
Unavailable |
|||
