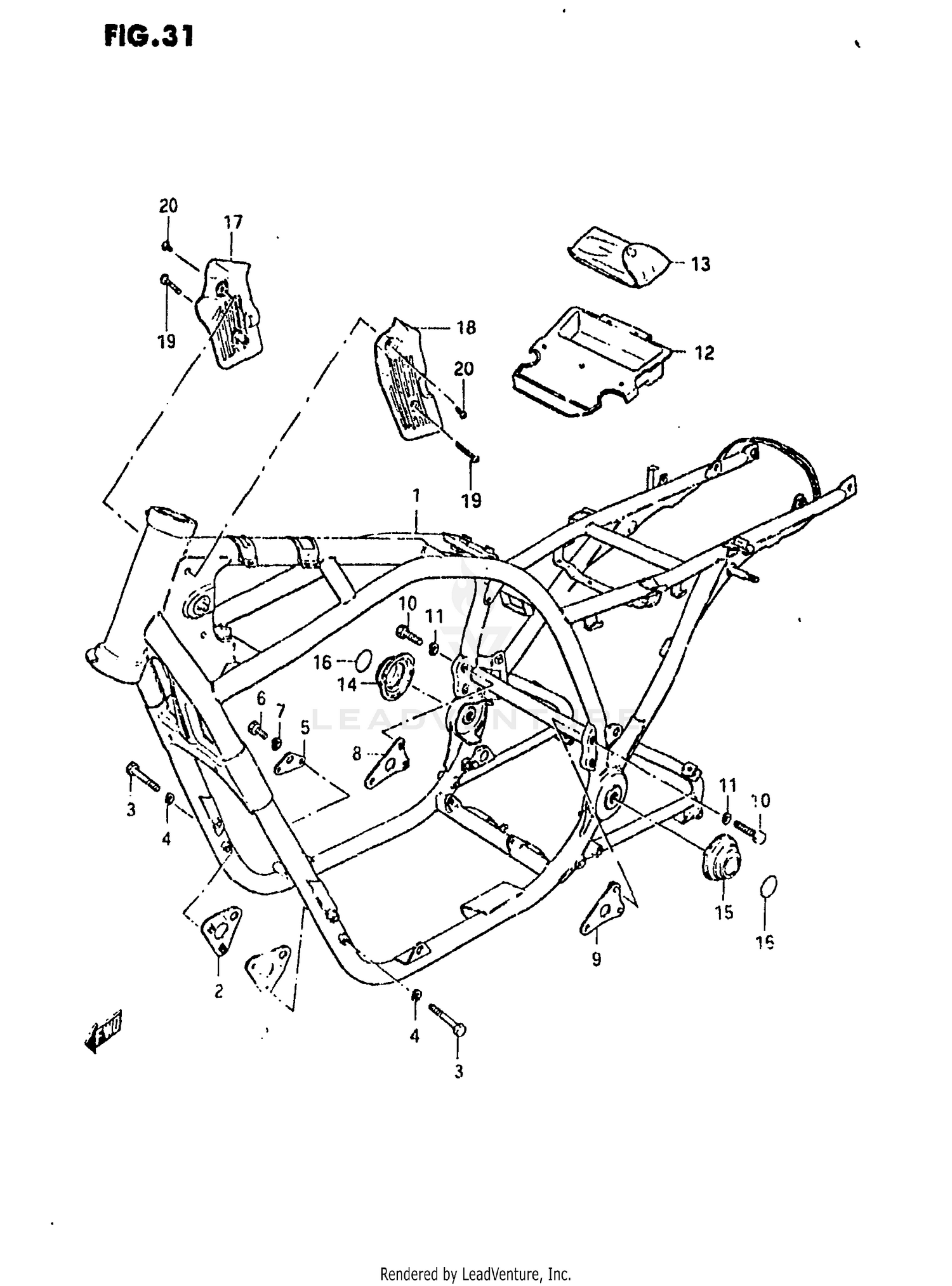

Frame (model T) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLACK)
41100-45300-019
|
$821.91 | ||
|
Unavailable |
|||
|
#2
PLATE, NO.1 (BLACK)
41910-45100-019
Superseded by 41910-45101-019
|
$10.01 | ||
|
Unavailable |
|||
|
#3
BOLT
01107-08658
Superseded by 01500-0865B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
PLATE, NO.2 (BLACK)
41993-45000-019
|
$7.76 | ||
|
Unavailable |
|||
|
#6
PLUG, DRAIN
01107-08168
Superseded by 01500-0816B
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#8
PLATE, NO.3 RH (BLACK)
41970-45100-019
|
$7.37 | ||
|
Unavailable |
|||
|
#9
PLATE, NO.3 LH (BLACK)
41980-45100-019
|
$8.37 | ||
|
Unavailable |
|||
|
#10
BOLT
01107-08408
Superseded by 01500-0840A
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#12
HOLDER, TOOL
41551-45102
|
$21.28 | ||
|
Unavailable |
|||
|
#13
TOOL ASSY
09800-00199
Superseded by 09800-21025
|
$76.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, RH
47191-45100
|
$9.75 | ||
|
Unavailable |
|||
|
#15
NO DESCRIPTION AVAILABLE
47291-45100
Superseded by 47291-45101
|
$13.74 | ||
|
Unavailable |
|||
|
#16
TAPE
68143-45101
|
$3.34 | ||
|
Unavailable |
|||
|
#17
COVER, FRAME HEAD RH
51876-45200
|
$6.00 | ||
|
Unavailable |
|||
|
#18
COVER, FRAME HEAD LH
51886-45200
|
$7.57 | ||
|
Unavailable |
|||
|
#19
NO DESCRIPTION AVAILABLE
02142-05505
Superseded by 02142-05503
|
$1.57 | ||
|
Unavailable |
|||
|
#20
SCREW
02142-05105
Superseded by 02142-0510B
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
