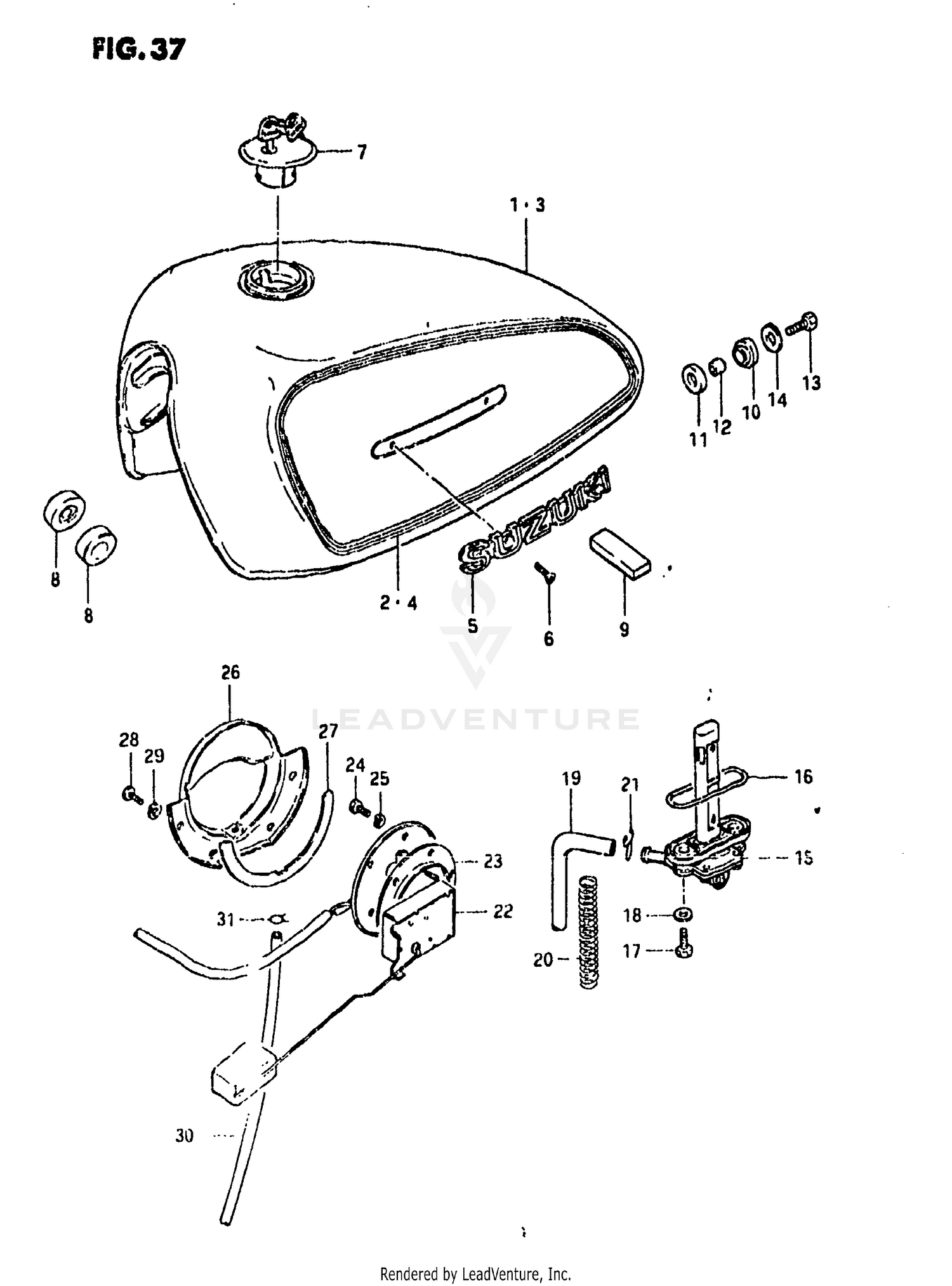

Fuel Tank (model T) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
44100-47200-10U
Superseded by 44110-47200-13L
|
$287.10 | ||
|
Unavailable |
|||
|
#2
TAPE SET
68110-47200-66Y
|
$43.66 | ||
|
Unavailable |
|||
|
#3
NO DESCRIPTION AVAILABLE
44100-47200-08E
Superseded by 44110-47200-13L
|
$287.10 | ||
|
Unavailable |
|||
|
#4
TAPE SET
68110-47200-67M
|
$28.04 | ||
|
Unavailable |
|||
|
#5
EMBLEM
68111-45200
Superseded by 68111-45010
|
$32.34 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02132-03065
Superseded by 02122-0306B
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP SET,FUEL TA
44200-30702
Superseded by 44200-30832
|
$105.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION
09329-10007
Superseded by 09329-10026
|
$2.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CUSHION FUEL TA
09329-01005
Superseded by 09329-01008
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION, REAR NO.1
09320-12010
Superseded by 09320-12013
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION, REAR NO.2
09320-12023
Superseded by 09320-12017
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SPACER
09180-08067
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01107-08308
Superseded by 01500-08307
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, EXHAUST SUPPORT
09160-08002
Superseded by 09160-08135
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
COCK ASSY, FUEL
44300-47270
|
$107.26 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
44348-47270
Superseded by 44348-47271
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, STARTING MOTOR
09128-06024
Superseded by 09103-06212
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET (5.8X13X1.2)
09168-06010
Superseded by 09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HOSE(7X10.2X200
09343-07026
Superseded by 09352-70104-00B
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING
09440-13017
Superseded by 09440-13043
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
09401-10403
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
GAUGE ASSY, FUEL LEVEL
34810-45300
|
$60.83 | ||
|
Unavailable |
|||
|
#23
GASKET
34825-45100
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
01104-05108
Superseded by 01500-0510B
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#25
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE
34885-49002
Superseded by 34885-49005
|
$23.81 | ||
|
Unavailable |
|||
|
#27
GASKET,FUEL DRA
34888-49000
Superseded by 34888-49001
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW
02112-05088
Superseded by 02112-05087
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#29
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.29 | ||
|
Unavailable |
|||
|
#30
HOSE
09343-05165
Superseded by 09352-50005-00B
|
$17.48 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP
09401-08402
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
