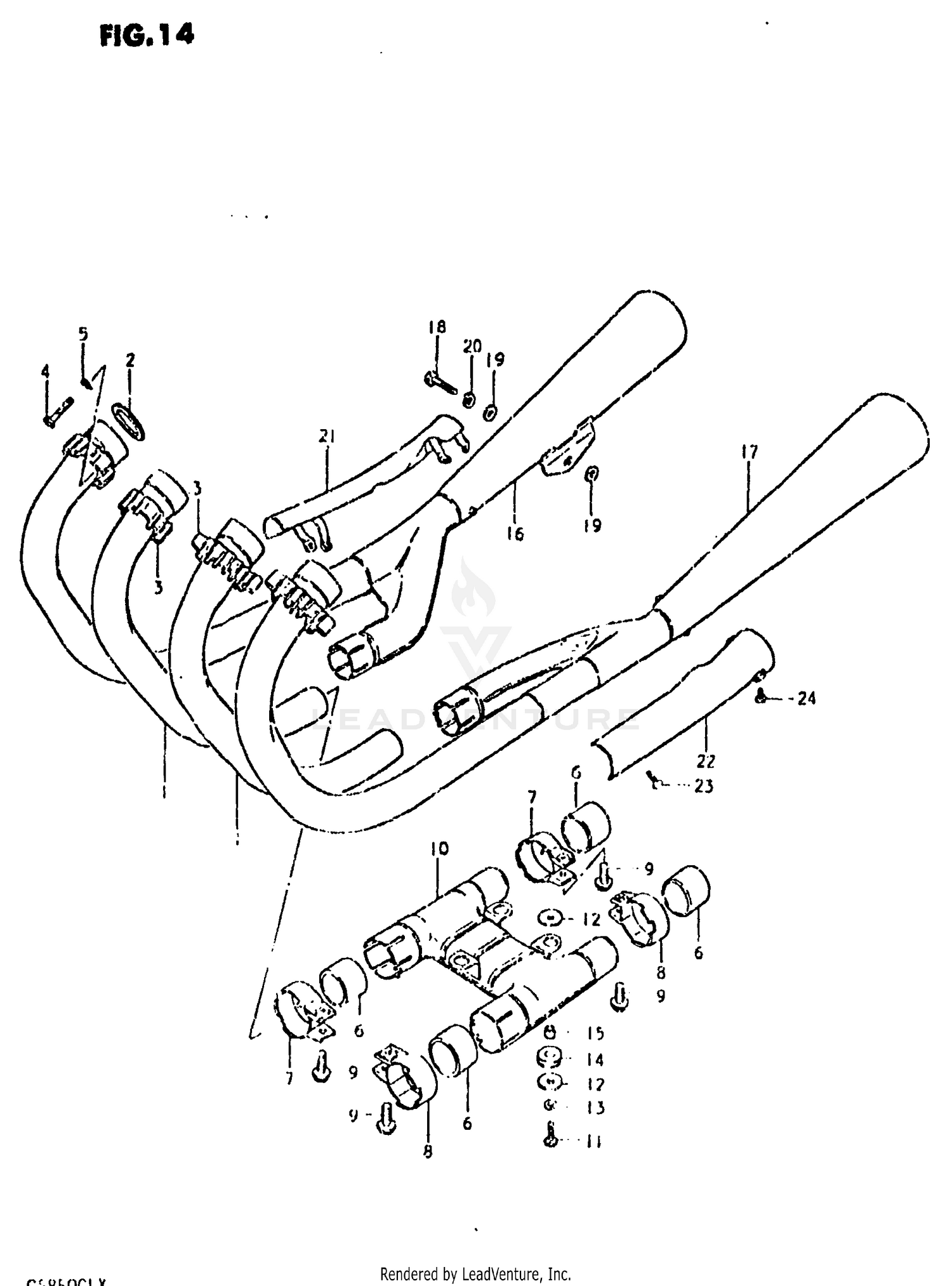

Muffler (model T) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST CENTER
14170-45200
Superseded by 14170-45201
|
$107.29 | ||
|
Unavailable |
|||
|
#2
GASKET, EXHAUST PIPE
14181-11010
Superseded by 14181-01D00
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP
14182-44000
|
$46.56 | ||
|
Unavailable |
|||
|
#4
BOLT
01107-08358
Superseded by 01500-0835B
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CONNECTOR,MUFFL
14771-44011
Superseded by 14771-44030
|
$25.96 | ||
|
Unavailable |
|||
|
#7
CLAMP, CONNECTOR RH
14459-44000
|
$12.66 | ||
|
Unavailable |
|||
|
#8
CLAMP, CONNECTOR LH
14459-44000
|
$12.66 | ||
|
Unavailable |
|||
|
#9
BOLT
01517-08258
Superseded by 01550-08257
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
PRE-MUFFLER
14210-45201
|
$152.67 | ||
|
Unavailable |
|||
|
#11
BOLT, REAR
01304-06308
Superseded by 01500-06307
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#13
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#12
WASHER (8.5X26X1.6)
09160-08004
Superseded by 09160-08134
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION
09320-10014
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
09180-06082
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
NO DESCRIPTION AVAILABLE
14310-45310
Superseded by 14305-45310-H01
|
$135.39 | ||
|
Unavailable |
|||
|
#17
NO DESCRIPTION AVAILABLE
14340-45310
Superseded by 14306-45310-H01
|
$212.14 | ||
|
Unavailable |
|||
|
#18
BOLT
01107-10308
Superseded by 01500-1030A
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
08322-21108
Superseded by 08322-01107
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, MUFFLER RH
14780-45201
Superseded by 14780-45202
|
$33.79 | ||
|
Unavailable |
|||
|
#22
COVER, MUFFLER LH
14790-45200
Superseded by 14790-45201
|
$33.12 | ||
|
Unavailable |
|||
|
#23
SCREW
02112-05168
Superseded by 02112-05167
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
02112-05068
Superseded by 09125-05122
|
$2.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
