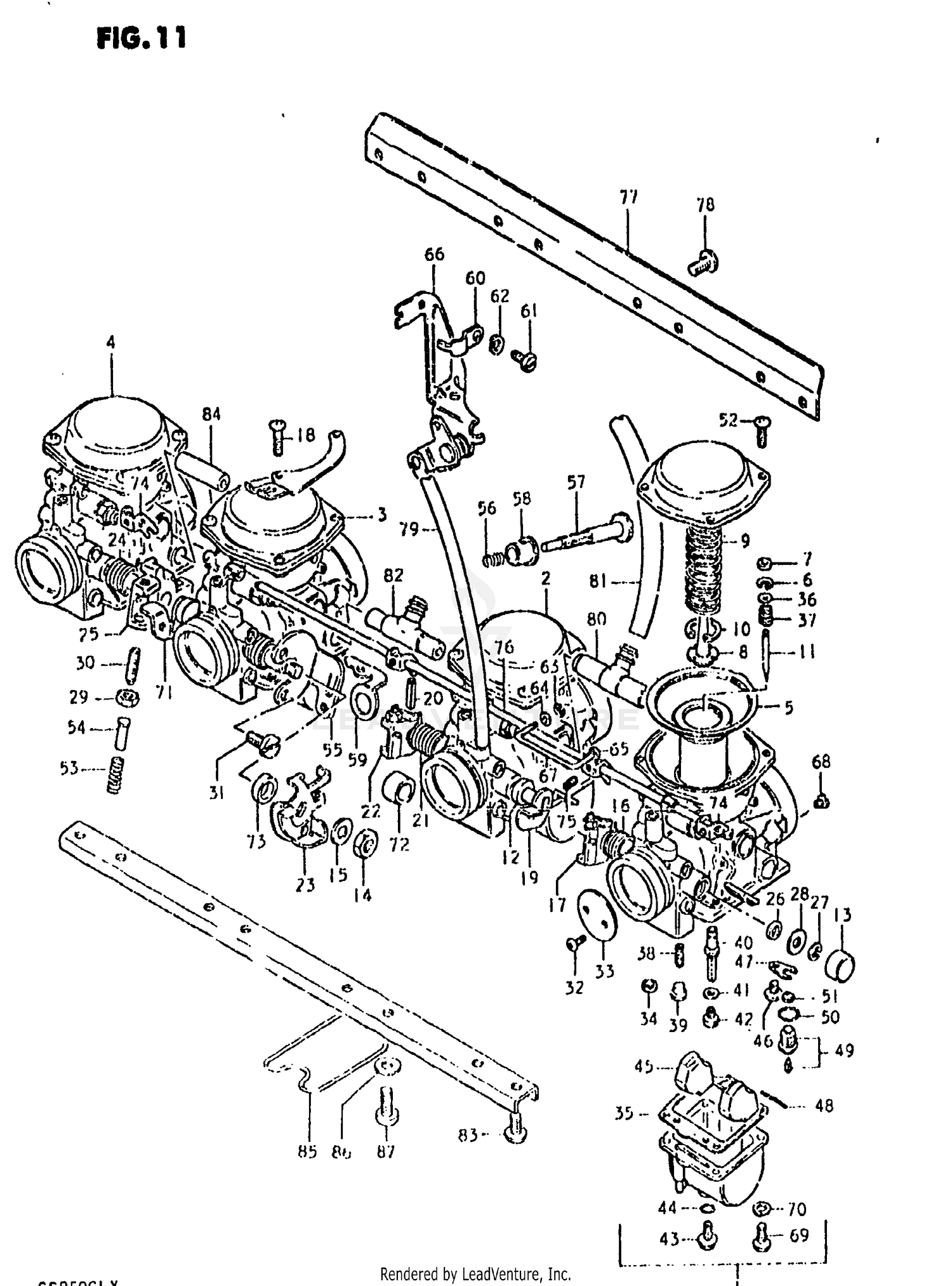

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#0
CARBURETOR ASSY
13200-45110
|
$593.81 | ||
|
Unavailable |
|||
|
#1
CARBURETOR, NO.1
13201-45110
|
$244.29 | ||
|
Unavailable |
|||
|
#2
CARBURETOR, NO.2
13202-45110
|
$212.21 | ||
|
Unavailable |
|||
|
#3
CARBURETOR, NO.3
13203-45110
|
$177.23 | ||
|
Unavailable |
|||
|
#4
CARBURETOR, NO.4
13204-45110
|
$247.39 | ||
|
Unavailable |
|||
|
#5
DIAPHRAGM
13500-45110
Superseded by 13500-45111
|
$150.37 | ||
|
Unavailable |
|||
|
#6
E RING
13394-31210
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING
13387-44030
|
$7.74 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE HOLDER
13389-44030
|
$11.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING
13503-44080
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
13581-44030
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLE, JET (5D50)
13383-45110
|
$15.73 | ||
|
Unavailable |
|||
|
#12
GASKET
13557-95210
|
$1.36 | ||
|
Unavailable |
|||
|
#13
CAP
13578-47070
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
08310-12088
Superseded by 08310-00087
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER
13606-47070
|
$1.70 | ||
|
Unavailable |
|||
|
#16
SPRING
13573-47070
|
$3.82 | ||
|
Unavailable |
|||
|
#17
SHAFT
13550-47070
|
$44.63 | ||
|
Unavailable |
|||
|
#18
SCREW
02111-05158
Superseded by 02112-05167
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT
13550-45110
|
$37.51 | ||
|
Unavailable |
|||
|
#20
PIN
13563-47070
|
$3.40 | ||
|
Unavailable |
|||
|
#21
SPRING
13573-45110
|
$4.64 | ||
|
Unavailable |
|||
|
#22
LEVER
13553-47070
|
$19.84 | ||
|
Unavailable |
|||
|
#23
LEVER
13555-47070
|
$22.78 | ||
|
Unavailable |
|||
|
#24
SPRING
13573-47080
|
$4.00 | ||
|
Unavailable |
|||
|
#25
SHAFT
13550-47090
|
$40.48 | ||
|
Unavailable |
|||
|
#26
SEAL
13556-31210
Superseded by 13651-51011
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#27
E RING
13617-44080
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET
13557-47070
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
13607-47070
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW
13605-47070
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW
13605-45110
|
$1.63 | ||
|
Unavailable |
|||
|
#32
SCREW
13604-44080
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#33
VALVE, THROTTLE (130)
13551-45110
|
$28.89 | ||
|
Unavailable |
|||
|
#34
GASKET
13258-44080
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET,FLOAT CH
13251-44080
Superseded by 13251-44081-H17
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER
13382-44030
|
$4.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
SPRING
13388-44030
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#38
JET, PILOT (40)
09492-40007
|
$10.26 | ||
|
Available to order. Add to View Price |
|||
|
#39
PLUG
13357-44080
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#40
JET, NEEDLE (X-5)
09494-00263
|
$31.68 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, NEEDLE JET
13332-44080
Superseded by 13382-03110
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#42
JET, MAIN
09491-23011
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW
13247-44080
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#44
O RING
13246-44080
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#45
FLOAT
13250-44080
|
$37.83 | ||
|
Available to order. Add to View Price |
|||
|
#46
SCREW
02111-04067
Superseded by 02112-0406B
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#47
PLATE
13373-39110
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#48
PIN
13254-92311
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#49
.NEEDLE VALVE
13370-44080
Superseded by 13370-44500
|
$65.82 | ||
|
Available to order. Add to View Price |
|||
|
#50
.O RING,NEEDLE VALVE SEAT
66263-99050
Superseded by 13374-35C00
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#51
FILTER
13376-44080
Superseded by 13376-19F00
|
$13.28 | ||
|
Available to order. Add to View Price |
|||
|
#52
SCREW
02112-05128
Superseded by 02112-05127
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#53
SPRING
13268-44010
|
$2.55 | ||
|
Unavailable |
|||
|
#54
PIN
13575-47070
|
$1.41 | ||
|
Available to order. Add to View Price |
|||
|
#55
BRACKET
13627-45110
|
$10.73 | ||
|
Unavailable |
|||
|
#56
SPRING
13271-93011
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#57
ADJUSTER
13267-47070
|
$23.03 | ||
|
Available to order. Add to View Price |
|||
|
#58
BUSH
13276-31210
|
$8.03 | ||
|
Available to order. Add to View Price |
|||
|
#59
BRACKET
13627-44090
|
$5.30 | ||
|
Unavailable |
|||
|
#60
PLATE
13421-47070
|
$7.08 | ||
|
Unavailable |
|||
|
#61
BOLT
01104-05108
Superseded by 01500-0510B
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#62
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#63
CLIP, NEEDLE
13415-47070
Superseded by 13394-10010
|
$6.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#64
WASHER
13523-98010
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#65
LEVER
13422-47070
|
$12.49 | ||
|
Unavailable |
|||
|
#66
BRACKET
13624-45110
|
$27.15 | ||
|
Unavailable |
|||
|
#67
ROD
13425-45110
|
$8.87 | ||
|
Unavailable |
|||
|
#68
JET, PILOT AIR (190)
09493-38001
|
$18.02 | ||
|
Available to order. Add to View Price |
|||
|
#69
SCREW
02112-05168
Superseded by 02112-05167
|
$2.45 | ||
|
Unavailable |
|||
|
#70
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.29 | ||
|
Unavailable |
|||
|
#71
SHAFT
13550-45120
|
$37.51 | ||
|
Unavailable |
|||
|
#72
RING
13574-45110
|
$3.00 | ||
|
Unavailable |
|||
|
#73
RING
13574-45120
|
$3.51 | ||
|
Unavailable |
|||
|
#74
LEVER
13422-44080
|
$10.96 | ||
|
Available to order. Add to View Price |
|||
|
#75
SCREW
13605-47070
|
$5.62 | ||
|
Unavailable |
|||
|
#76
SHAFT
13410-45110
|
$31.98 | ||
|
Unavailable |
|||
|
#77
PLATE
13628-45110
|
$18.99 | ||
|
Unavailable |
|||
|
#78
SCREW
13605-47090
Superseded by 02142-05127
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#79
HOSE(4.5X8.5X60
13683-45110
Superseded by 09355-45001-600
|
$11.89 | ||
|
Available to order. Add to View Price |
|||
|
#80
NIPPLE
13685-47070
|
$32.34 | ||
|
Available to order. Add to View Price |
|||
|
#81
HOSE(6X10X600)
13683-47070
Superseded by 09352-60104-600
|
$11.50 | ||
|
Available to order. Add to View Price |
|||
|
#82
NIPPLE
13685-45110
|
$38.91 | ||
|
Available to order. Add to View Price |
|||
|
#83
SCREW
02112-06128
Superseded by 02112-06127
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#84
NIPPLE
13685-47090
|
$18.03 | ||
|
Unavailable |
|||
|
#85
CLIP
13619-45110
|
$6.50 | ||
|
Unavailable |
|||
|
#86
WASHER
13615-49200
|
$1.41 | ||
|
Unavailable |
|||
|
#87
SCREW
02112-06168
Superseded by 02112-06167
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
