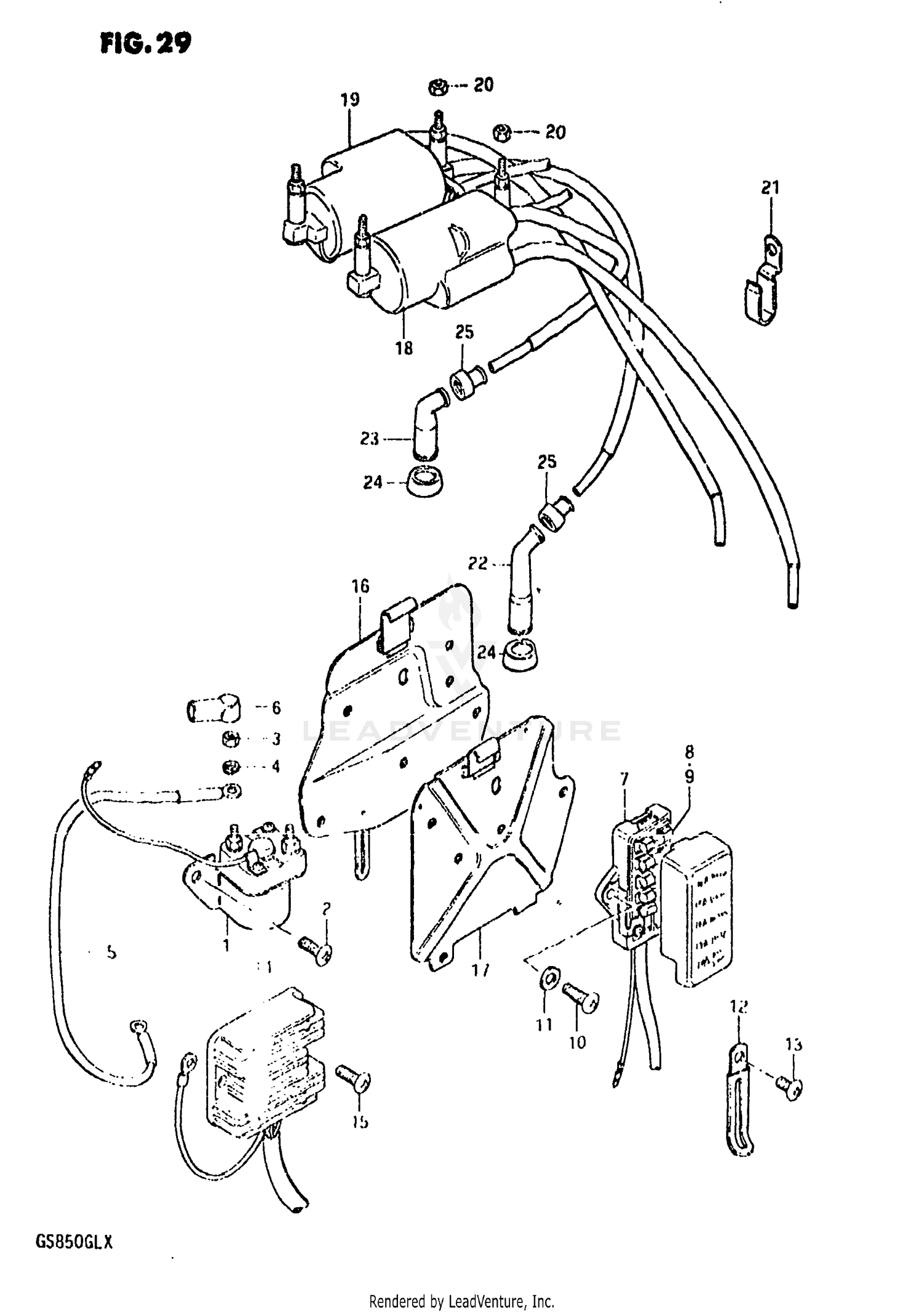

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STAR
31800-37020
Superseded by 31800-37021
|
$94.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
02112-06108
Superseded by 02112-06107
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
.NUT
08310-22068
Superseded by 08310-00067
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WIRE, STARTING LEAD
33850-10300
Superseded by 33850-00A01
|
$41.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
.CAP, STARTER MOTOR
31861-35100
Superseded by 31861-48B10
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
FUSE BOX ASSY
36740-49200
Superseded by 36740-49X02
|
$102.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
NO DESCRIPTION AVAILABLE
36740-49100
Superseded by 36740-49X01
|
$47.15 | ||
|
Unavailable |
|||
|
#8
FUSE (10A)
09481-10001
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE (15A)
09481-15001
|
$2.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW
02112-06168
Superseded by 02112-06167
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02112-06128
Superseded by 02112-06127
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
08322-21068
Superseded by 08322-01067
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CLAMP
09404-06401
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
02112-06088
Superseded by 02112-06087
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
RECTIFIER ASSY
32800-45210
Superseded by 32800-49X50
|
$313.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02112-06128
Superseded by 02112-06127
|
$2.29 | ||
|
Unavailable |
|||
|
#16
PLATE, PARTS HOLDER
47410-45101
|
$8.40 | ||
|
Unavailable |
|||
|
#17
PLATE, PARTS HOLDER
47410-45300
|
$8.40 | ||
|
Unavailable |
|||
|
#18
COIL ASSY,IGNIT
33410-45110
Superseded by 33410-45112
|
$158.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
COIL ASSY,IGNIT
33420-45110
Superseded by 33410-45112
|
$158.62 | ||
|
Unavailable |
|||
|
#20
.NUT
08310-11068
Superseded by 08310-00067
|
$2.30 | ||
|
Unavailable |
|||
|
#21
CLAMP
09403-06307
Superseded by 09403-06329
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, SPARK PLUG (L)
33510-45010
|
$33.18 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, SPARK PLUG (S)
33510-43010
|
$32.26 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL, SPARK PLUG
33541-69010
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL,HIGH TENSION CORD
33542-98000
Superseded by 33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
