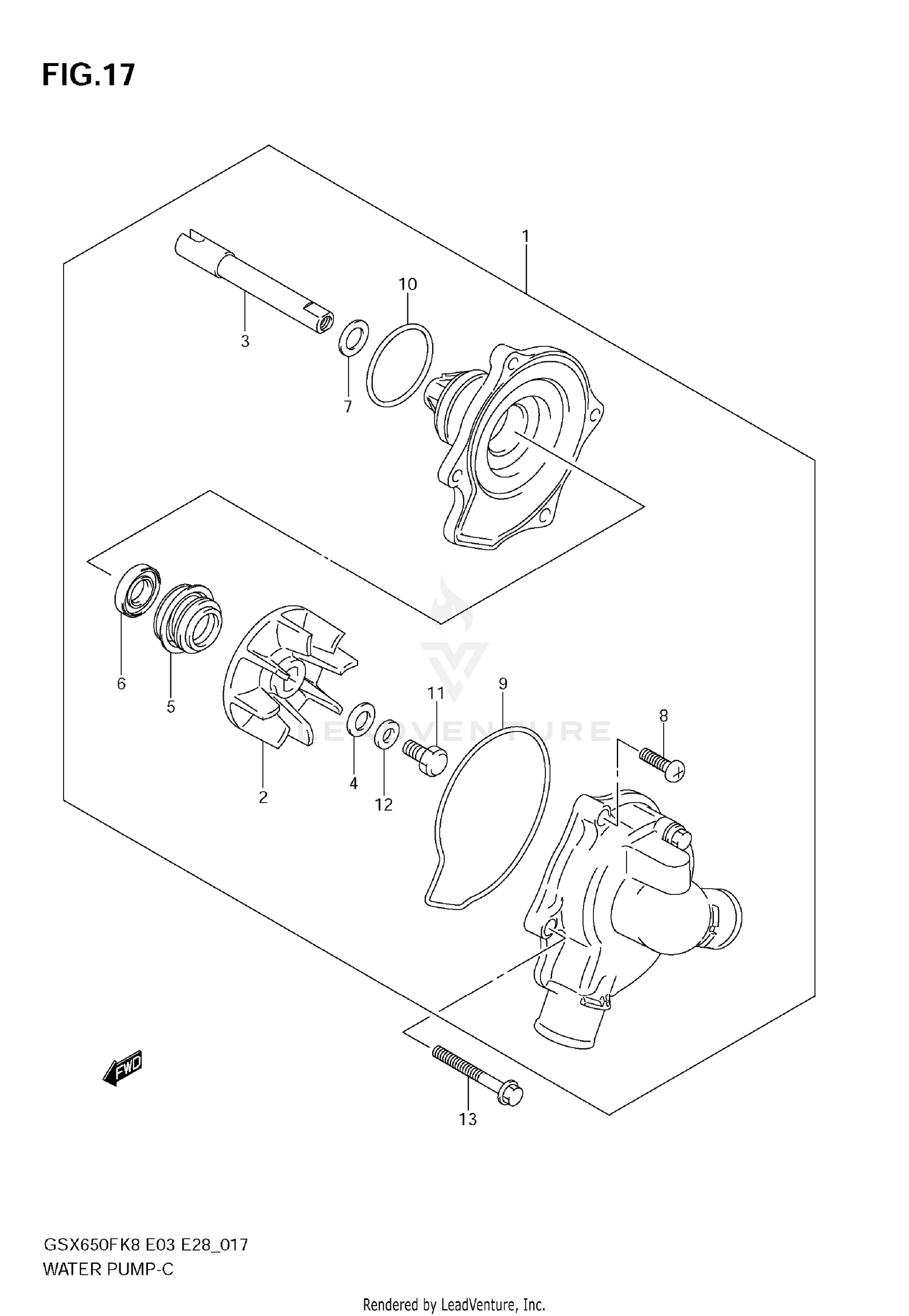

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,WATER
17400-18H00
Superseded by 17400-18H01
|
$291.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
IMPELLER
17491-01H00
|
$39.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT
17511-41G00
|
$44.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
09168-06025
|
$3.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
.SEAL,MECHANICAL
17470-02F10
Superseded by 17470-02F11
|
$36.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
.OIL SEAL
17461-01H00
|
$21.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
17432-07G00
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
02112-0616A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING
17418-18H00
Superseded by 17418-18H01
|
$15.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
.O RING
17435-33400
|
$18.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X13)
09100-06099
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
LOCK WASHER
09164-06006
|
$3.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT
01547-0635A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
