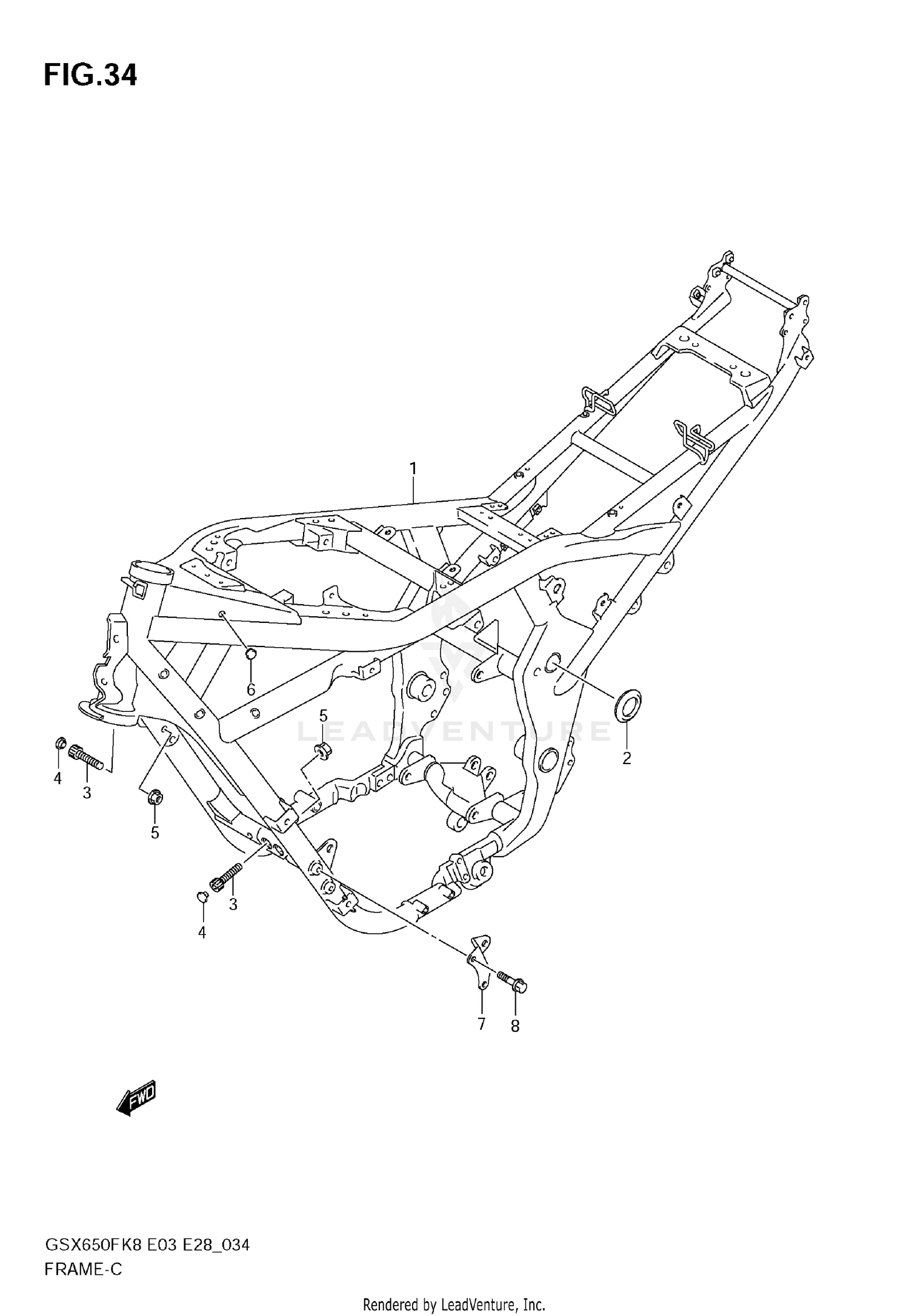

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLACK)
41100-17H10-019
|
$2,811.62 | ||
|
Unavailable |
|||
|
#2
CAP, FRAME PIVOT
43585-38G00
Superseded by 43585-38G01
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (10X37)
09106-10068
|
$3.68 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RH
09250-08012
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
08319-3110B
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP
09250-12014
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, FRONT (BLACK)
41942-18H00-019
|
$41.47 | ||
|
Unavailable |
|||
|
#8
BOLT (8X20)
01550-0820A
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
