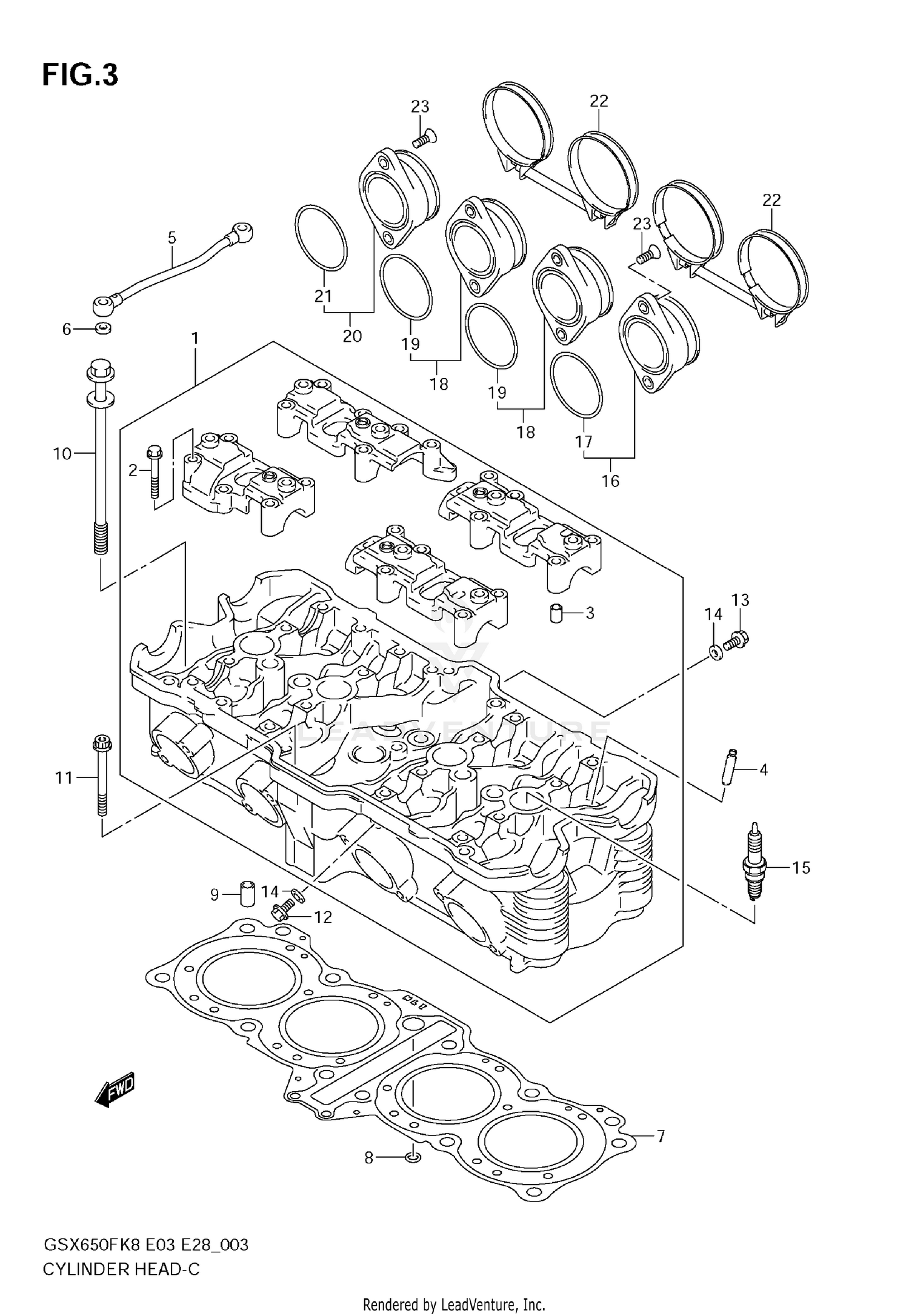

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-17H00
|
$1,605.50 | ||
|
Unavailable |
|||
|
#2
BOLT
09103-06293
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
09206-08001
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, VALVE (OS 0.3)
11115-17E70
|
$27.98 | ||
|
Unavailable |
|||
|
#5
PIPE, OIL
11131-18H00
|
$45.60 | ||
|
Unavailable |
|||
|
#6
WASHER
08322-0106B
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, CYLINDER HEAD
11141-17H01
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O RING
11143-32F00
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
.PIN
04211-11169
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
11117-18H00
|
$15.36 | ||
|
Unavailable |
|||
|
#11
BOLT
07120-0665B
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, OIL GALLERY
01550-0612A
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, OIL GALLERY
07120-0612B
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
09168-06023
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SPARK PLUG (NGK,CR8E)
09482-00456
|
$8.08 | ||
|
Unavailable |
|||
|
#15
SPARK PLUG (DENSO,U24ESR-N)
09482-00457
|
$7.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPARK PLUG (NGK,CR7E)
09482-00516
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPARK PLUG (CR9E)
09482-00458
|
$7.76 | ||
|
Unavailable |
|||
|
#15
SPARK PLUG (DENSO,U22ESR-N)
09482-00515
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPARK PLUG (DENSO,U27ESR-N)
09482-00459
|
$7.52 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE, INTAKE NO.1
13101-17H00
|
$55.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
.O RING (D:2.4,ID:41.7)
09280-42003
|
$10.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE, INTAKE NO.2
13102-17H00
|
$39.49 | ||
|
Unavailable |
|||
|
#19
.O RING (D:2.4,ID:41.7)
09280-42003
|
$10.53 | ||
|
Unavailable |
|||
|
#20
PIPE, INTAKE NO.4
13104-17H00
|
$39.49 | ||
|
Unavailable |
|||
|
#21
.O RING (D:2.4,ID:41.7)
09280-42003
|
$10.53 | ||
|
Unavailable |
|||
|
#22
CLAMP, INTAKE PIPE
13170-18H10
|
$31.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
02122-0616B
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
