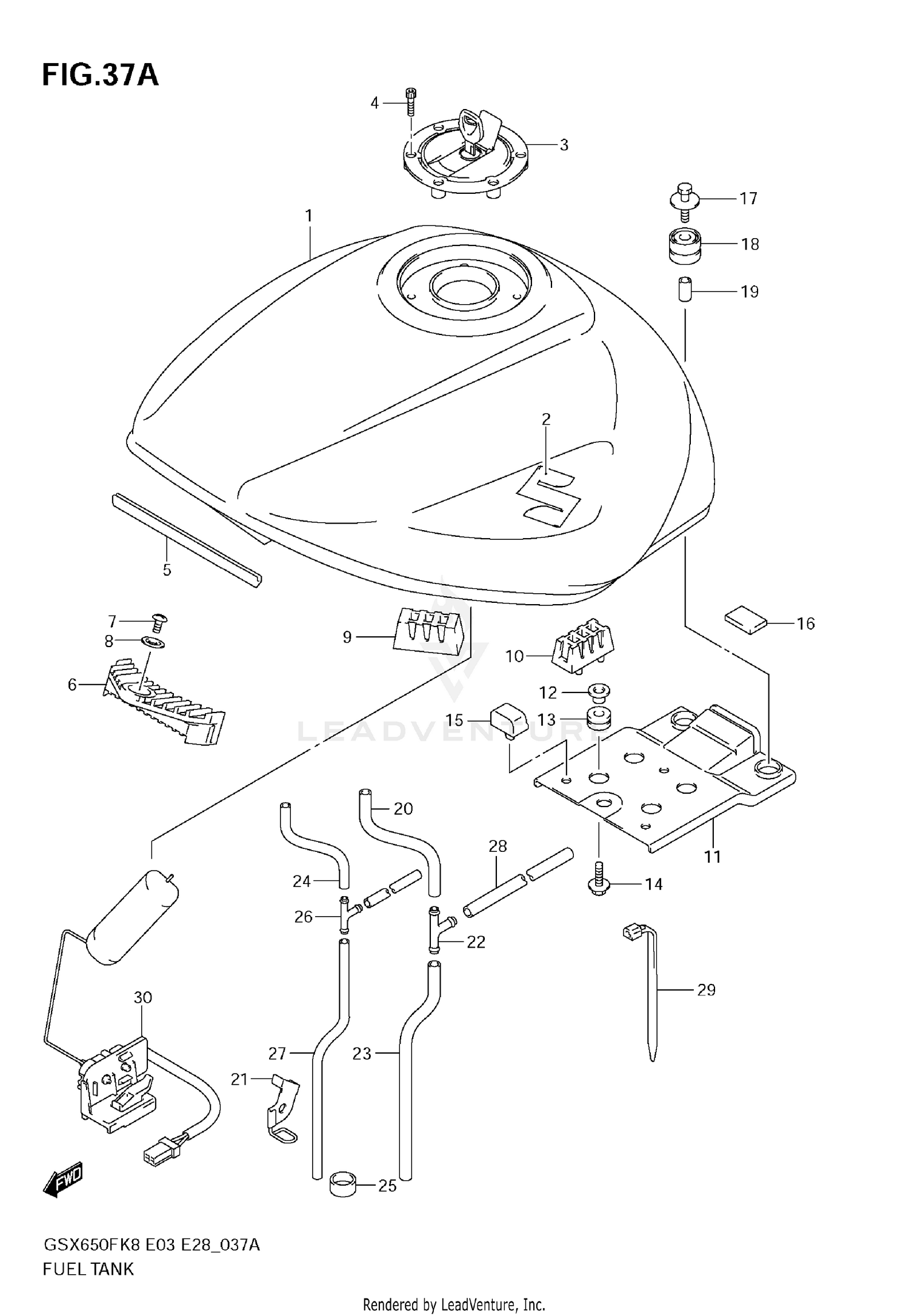

Fuel Tank (model K9) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL (ORANGE)
44100-18H00-YME
|
$1,030.75 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (BLACK)
44100-18H00-YAY
|
$930.15 | ||
|
Unavailable |
|||
|
#1
TANK ASSY,FUEL(
44100-18H00-YSF
Superseded by 44100-18H31-YSF
|
$990.11 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (ORANGE)
44100-18H20-YME
|
$1,030.75 | ||
|
Unavailable |
|||
|
#1
TANK ASSY,FUEL(
44100-18H20-YAY
Superseded by 44100-18H51-YAY
|
$1,488.38 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY,FUEL(
44100-18H20-YSF
Superseded by 44100-18H50-YSF
|
$932.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM, "S"
68111-18G20
|
$39.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP SET,FUEL TA
44200-16850
Superseded by 44200-16852
|
$146.03 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP SET,FUEL TA
44200-16870
Superseded by 44200-16872
|
$166.31 | ||
|
Unavailable |
|||
|
#4
BOLT (5X20)
09106-05017
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#5
MOLDING (L:300)
68241-04X50-300
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION, FRONT
44511-27E00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
02142-0510B
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
09169-05012
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION, SIDE
45149-45330
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION, FUEL TANK SIDE
44541-31F00
|
$12.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, REAR
44141-38G00
|
$23.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
09169-06062
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION (8X18X10)
09320-08001
Superseded by 09320-08527
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
09116-06192
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
45149-21G00
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION
47163-10FA0
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
09116-06172
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
CUSHION,FUEL TA
44541-38G00
Superseded by 44541-38G01
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER
09180-06271
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
HOSE,WATER DRAI
44423-16G10
Superseded by 44423-16G11
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
GUIDE, DRAIN HOSE
44480-17H00
|
|||
|
Unavailable |
|||
|
#22
3 WAY, DRAIN HOSE
09367-08004
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE(7X10.2X600
09352-70103-600
Superseded by 09352-70104-600
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE,VACUUM
44424-38G00
Superseded by 44425-09E01
|
$12.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE, JOINT
09352-13162-010
|
$1.97 | ||
|
Unavailable |
|||
|
#26
.JOINT,3 WAY
09367-06002
|
$2.94 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE
09352-50823-00B
Superseded by 09352-50005-00B
|
$16.97 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
09407-14403
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
GAUGE ASSY,FUEL
34810-18H00
Superseded by 34810-18H01
|
$141.88 | ||
|
Unavailable |
|||
