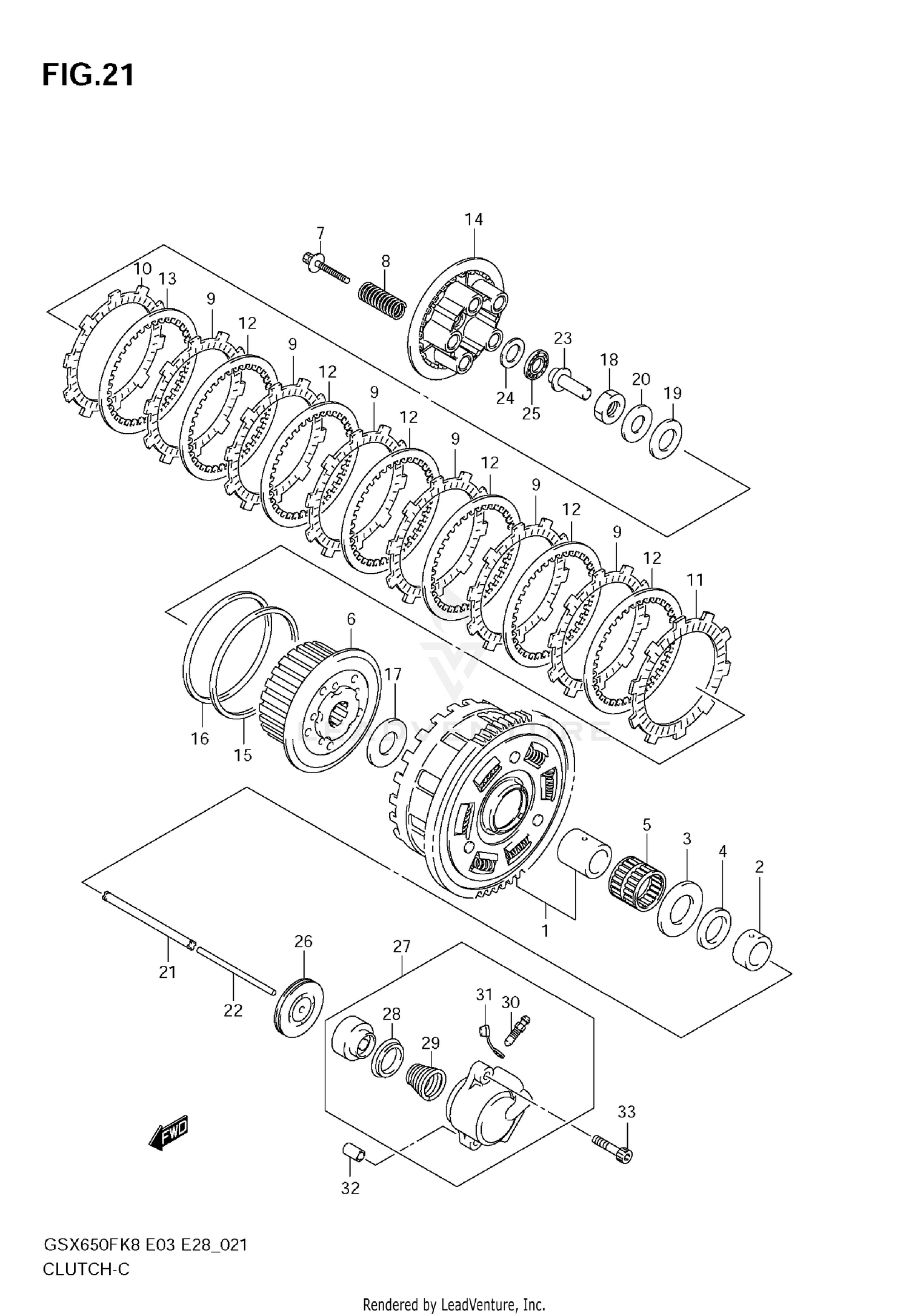

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR ASSY, PRIMARY DRIVEN
21200-17870
|
$518.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER, OIL PUMP DRIVE
21253-01H00
|
$44.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER (25X54X2.4)
09160-25073
|
$15.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER (25X30X3.0)
09160-25036
|
$3.98 | ||
|
Unavailable |
|||
|
#5
BEARING (35X40X26.8)
09263-35015
|
$29.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
HUB, CLUTCH SLEEVE
21410-44G00
|
$95.85 | ||
|
Unavailable |
|||
|
#7
BOLT, CLUTCH SPRING
21412-35F00
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, CLUTCH
21413-17H00
|
$9.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH DRIVE NO.1
21441-31E90
|
$37.74 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH DRIVE NO.2
21441-31E60
|
$28.97 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, CLUTCH DRIVE NO.3
21442-31E21
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, CLUTCH DRIVEN NO.1
21451-31E50
|
$18.68 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, CLUTCH DRIVEN NO.2
21451-31E40
|
$15.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
DISK, CLUTCH PRESSURE
21462-35F00
|
$66.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAT, WAVE WASHER
21471-31E20
|
$18.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, CLUTCH PLATE WAVE
21472-31E01
|
$19.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (25X50X2.5)
09160-25056
|
$14.34 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, CLUTCH SLEEVE HUB
09159-24010
|
$16.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, CLUTCH SLEEVE NUT
09181-25223
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (24.2X35X2)
09164-24006
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROD, CLUTCH PUSH RH
23110-27A00
|
$26.79 | ||
|
Available to order. Add to View Price |
|||
|
#22
ROD, CLUTCH PUSH LH
23111-42F00
|
$20.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIECE, CLUTCH PUSH
23121-31E20
|
$42.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, CLUTCH PUSH
09160-15045
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, CLUTCH PUSH
09263-15003
|
$10.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAL, CLUTCH PUSH ROD
09283-06011
|
$24.22 | ||
|
Available to order. Add to View Price |
|||
|
#27
CYLINDER,CLUTCH
23160-18H00
Superseded by 23160-18H01
|
$136.09 | ||
|
Available to order. Add to View Price |
|||
|
#28
CUP
23163-05A00
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING
23164-05A00
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#30
BLEEDER
59121-01A00
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP, BLEEDER
59122-01A00
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#32
KNOCK PIN
04211-09129
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT (6X30)
09103-06251
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
