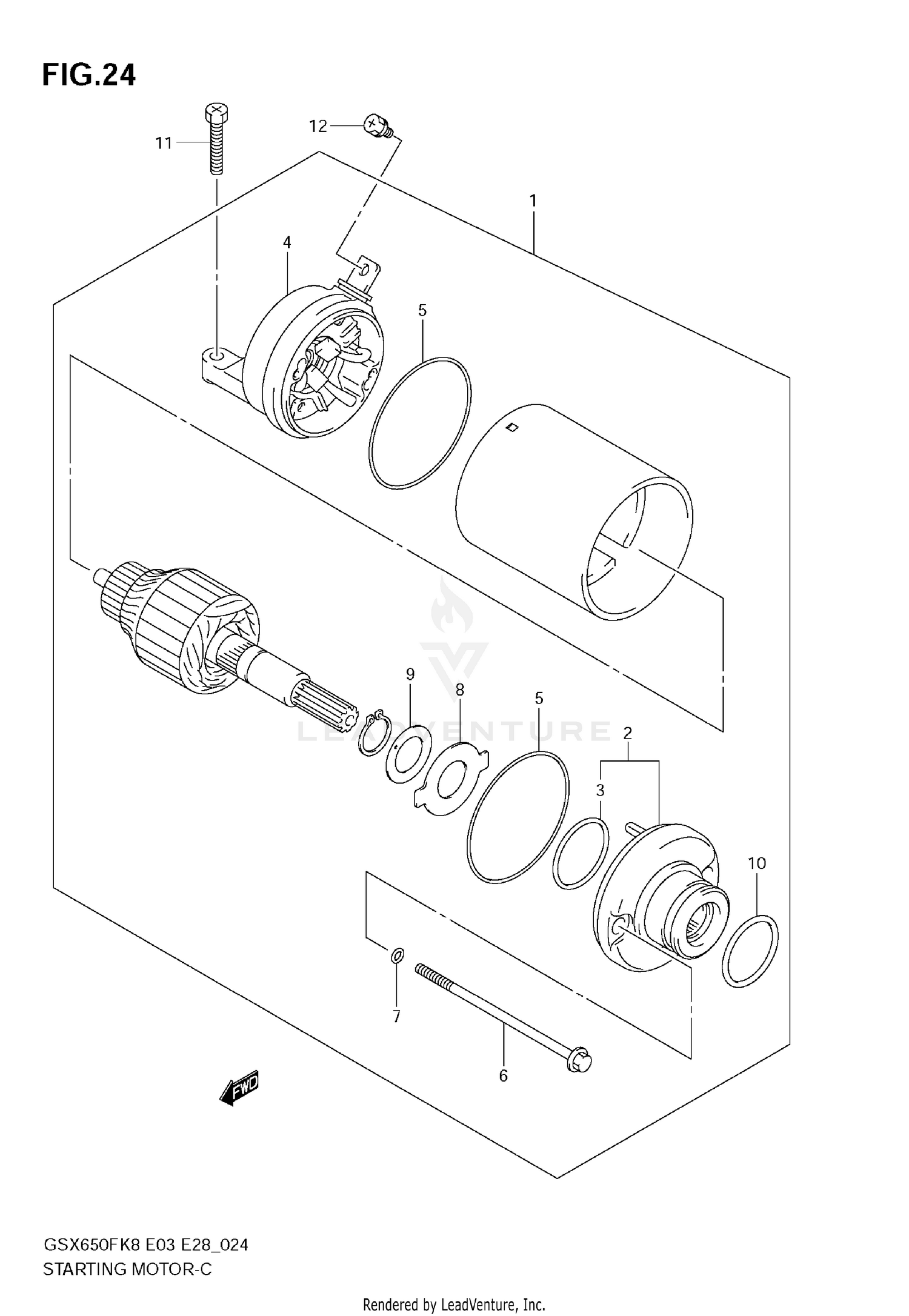

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY, STARTING
31100-17H00
|
$591.18 | ||
|
Unavailable |
|||
|
#2
HOUSING ASSY
31150-08F00
|
$82.34 | ||
|
Unavailable |
|||
|
#3
..OIL SEAL
31153-49210
|
$26.14 | ||
|
Available to order. Add to View Price |
|||
|
#4
FRAME ASSY, COMMUTATOR END
31175-34E01
|
$101.76 | ||
|
Unavailable |
|||
|
#5
.O-RING
31264-32C10
|
$15.34 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
31281-08F00
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING
31156-08F00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, LOCK
31361-32C10
|
$2.41 | ||
|
Unavailable |
|||
|
#9
SHIM
31361-38300
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
.O RING (D:3,ID:24.5)
09280-24003
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STARTING (6X25)
09103-06212
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW (5X8)
09137-05004
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
