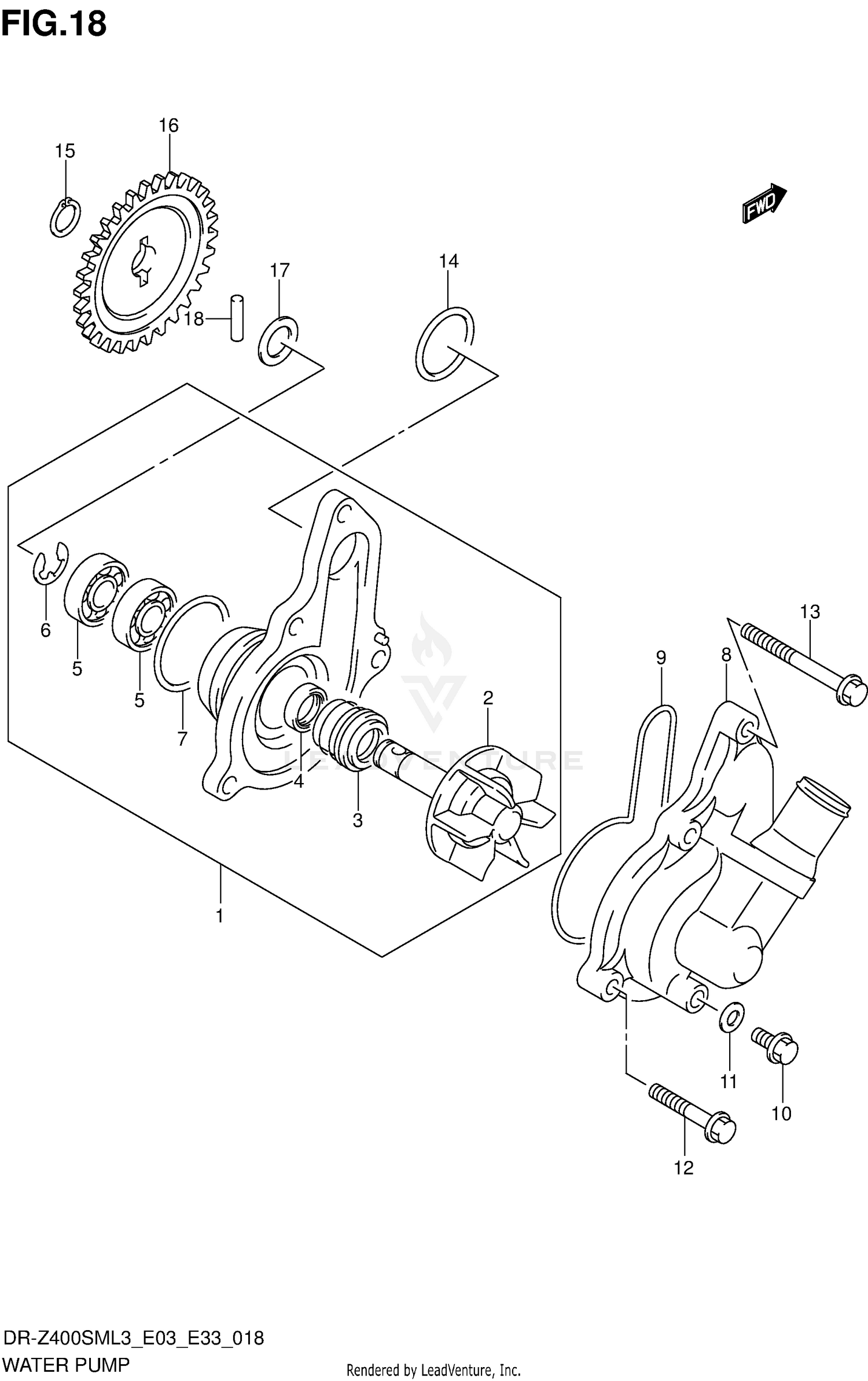

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,WATER
17400-29F10
Superseded by 17400-29F11
|
$151.32 | ||
|
Unavailable |
|||
|
#2
.IMPELLER SHAFT COMP
17491-29F10
|
$62.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SEAL,MECHANICAL
17470-02F10
Superseded by 17470-02F11
|
$37.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
.OIL SEAL (10X21X5)
09283-10004
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
08110-69000
|
$24.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
.E RING
08332-1108A
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
.O RING
17435-33400
|
$19.74 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE,WATER PUMP
17410-29F21
|
$114.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING,WATER PUMP CASE
17435-29F00
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01547-0610A
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET (6.4X11.5X0.8)
09168-06026
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT (6X30)
09103-06204
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (6X45)
09103-06209
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING (D:2.4,ID:21.8)
09280-22001
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
08331-31109
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR,WATER PUMP DRIVEN (NT:30
17461-29F00
|
$47.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM (10X18X0.5)
09181-10158
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN
09261-04001
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
