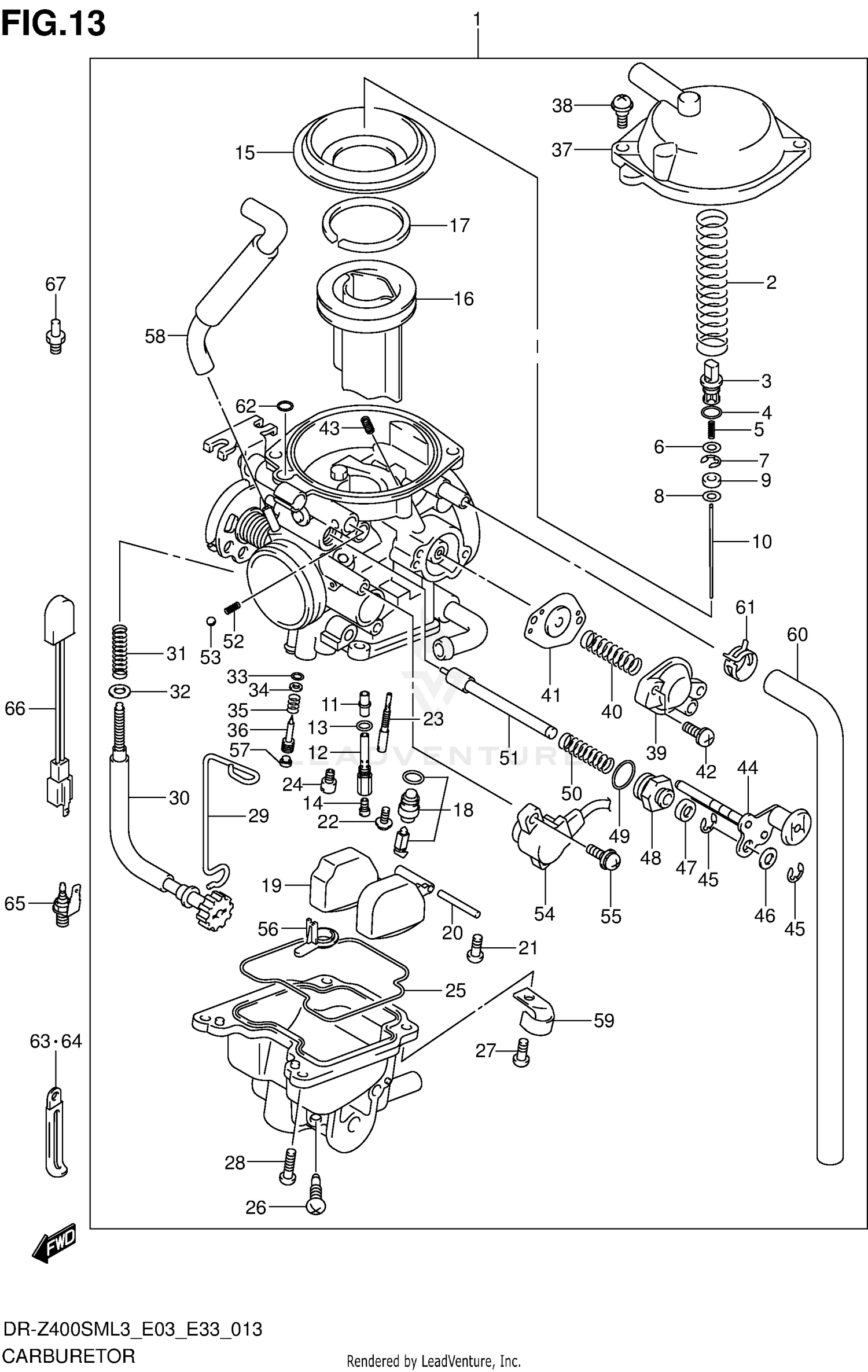

Carburetor (dr-z400sml3 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
13200-29FC3
|
$871.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING
13573-07F00
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER
13418-33E00
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#4
O RING (D:1.9,ID:4.8)
09280-05004
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
13481-04F00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
13382-19E00
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
.E RING,MULTIPLE JET NOZZLE
13394-17E60
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING
13387-13F00
|
$10.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
13291-29FA0
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE, JET (5DH37-1)
13383-29FB0
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET, NEEDLE (P-0M)
09494-00939
|
$54.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
.HOLDER,JET
13385-29FA0
|
$36.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
.O RING
13246-43010
Superseded by 13246-43011
|
$5.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
JET, MAIN (142.5)
09491-28012
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
.DIAPHRAGM
13507-17C01
Superseded by 13507-17C02
|
$36.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
.VALVE,PISTON
13501-29FA0
|
$89.52 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING
13504-14E00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
.VALVE ASSY NEEDLE
13370-29FA0
Superseded by 13370-29FA1
|
$68.06 | ||
|
Available to order. Add to View Price |
|||
|
#19
FLOAT ASSY
13250-04F00
|
$42.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
.PIN,FLOAT
13254-01010
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
02112-0408A
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
13602-05A10
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
.JET,PILOT (22.5)
09492-22014
|
$17.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
JET, MAIN AIR (62.5)
09491-62006
|
$11.97 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET
13258-04F00
|
$12.23 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, DRAIN
13247-13A00
Superseded by 13247-02340
|
$6.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SCREW
02112-04107
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW
02112-0412A
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP
13671-29FA0
|
$20.09 | ||
|
Available to order. Add to View Price |
|||
|
#30
.SCREW,ADJUST
13267-29FA0
|
$67.32 | ||
|
Available to order. Add to View Price |
|||
|
#31
.SPRING,THROTTLE SCREW
13268-37420
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER
13615-43010
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#33
.O-RING
13295-29900
Superseded by 13295-29901
|
$5.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
.WASHER (14X17)
13291-29900
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#35
.SPRING,THROTTLE SCREW
13268-48700
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#36
ADJUSTER (3,1/2)
13279-33E00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
.COVER ASSY,DIAPHRAGM
13502-29FA0
|
$54.40 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW
13247-33E00
|
$3.63 | ||
|
Available to order. Add to View Price |
|||
|
#39
.COVER,DIAPHRAGM
13502-08F00
|
$55.43 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPRING
13481-41F20
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#41
.DIAPHRAGM ASSY
13480-10F00
Superseded by 13480-10F01
|
$20.74 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW
13601-04148
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#43
JET, PILOT AIR (135)
09492-27010
|
$18.92 | ||
|
Available to order. Add to View Price |
|||
|
#44
PLATE ASSY
13420-29FA0
|
$78.65 | ||
|
Available to order. Add to View Price |
|||
|
#45
.E RING
13415-38300
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER
13427-38300
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#47
.CAP,STARTER VALVE
13682-31210
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#48
.HOLDER,GUIDE
13418-44080
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#49
.O RING (16)
13278-47090
Superseded by 13278-47091
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#50
.SPRING,STARTER VALVE
13417-43010
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#51
PLUNGER ASSY
13411-29FA0
|
$33.72 | ||
|
Available to order. Add to View Price |
|||
|
#52
SPRING
13434-43010
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#53
BALL
13596-93010
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#54
.SENSOR ASSY
13580-21F00
Superseded by 13580-21F01
|
$107.13 | ||
|
Available to order. Add to View Price |
|||
|
#55
SCREW
13602-19B50
|
$4.23 | ||
|
Available to order. Add to View Price |
|||
|
#56
RING
13387-29FA1
|
$15.02 | ||
|
Available to order. Add to View Price |
|||
|
#57
PLUG
13281-05A00
|
$5.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#58
HOSE ASSY, BOOST (4X8)
13683-29FB0
|
$29.50 | ||
|
Available to order. Add to View Price |
|||
|
#59
.PLATE
13671-14D00
Superseded by 13671-14D01
|
$4.51 | ||
|
Available to order. Add to View Price |
|||
|
#60
.HOSE AIR VENT (6.5X10.5)
13684-29FB0
Superseded by 13684-29FB1
|
$33.32 | ||
|
Unavailable |
|||
|
#61
CLIP
13671-19F00
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#62
.O-RING
13295-33010
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#63
CLAMP (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
|
#64
CLAMP (L:120)
09404-08420
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#65
HEATER ASSY,CARBURETOR (15W)
13650-25E01
|
$48.05 | ||
|
Available to order. Add to View Price |
|||
|
#66
THERMO SWITCH COMP,CARB HEATE
13655-16F00
|
$71.29 | ||
|
Available to order. Add to View Price |
|||
|
#67
SCREW,STOP
13296-29F00
|
$18.03 | ||
|
Unavailable |
|||
