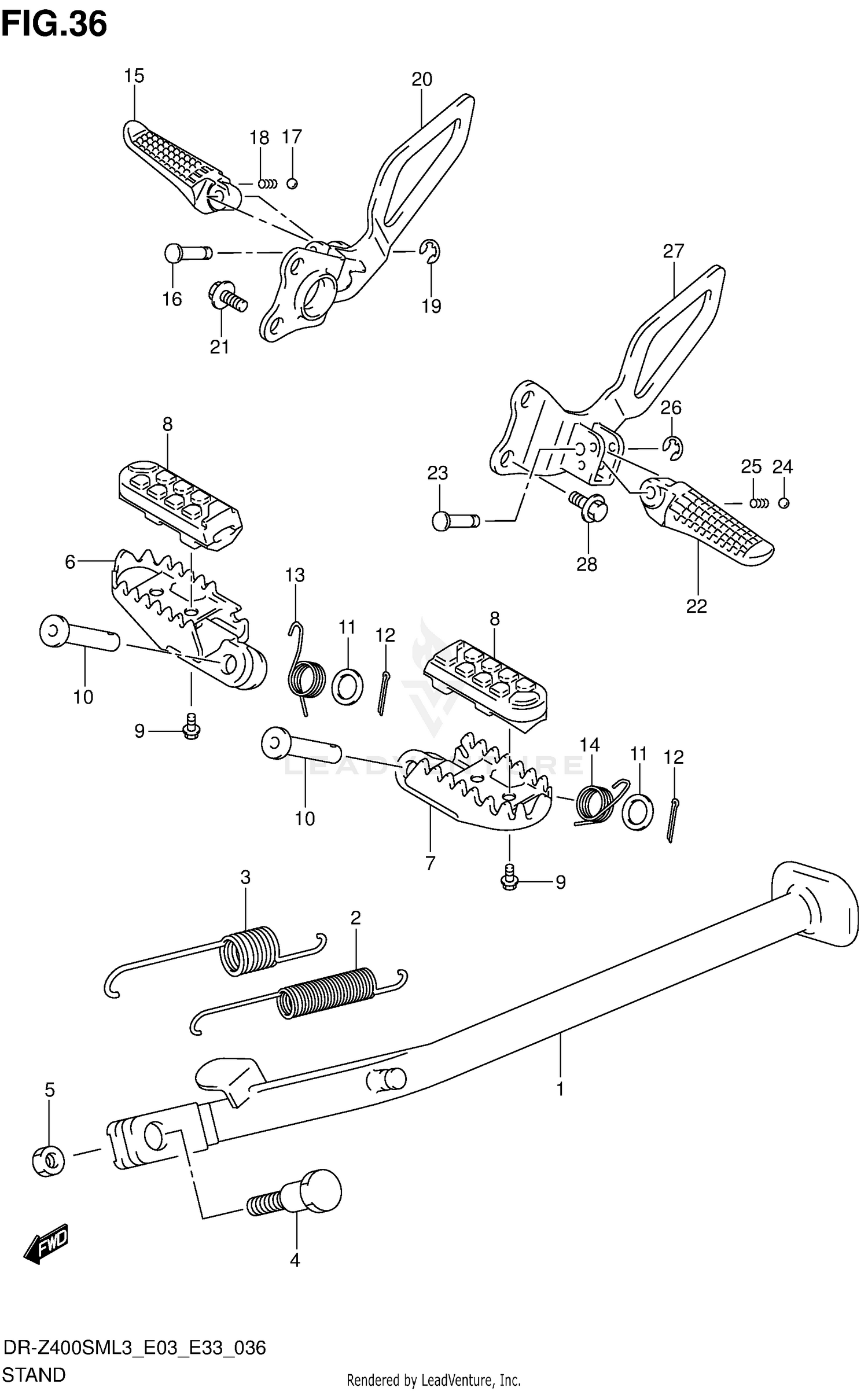

Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND,PROP
42310-29F20
|
$159.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING
09443-15046
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING
09443-22017
|
$9.43 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (10X33)
09111-10060
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT,PROP STAND
42321-03FK0
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
FOOTREST RH
43550-29E01
|
$120.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
FOOTREST LH
43560-29E01
|
$118.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER,FOOTREST
43530-29F00
|
$27.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01547-0510A
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
09200-10019
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
08322-0110B
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
COTTER PIN
04111-2520A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING
09448-18030
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING
09448-18029
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAR,PILLION FOOTREST RH
43611-33E11
|
$60.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN
87259-85510
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
BALL
06111-07004
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING
09440-05005
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
E RING
08332-1104B
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET,PILLION RH
43650-29F20
|
$93.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
01550-0816B
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAR,PILLION FOOTREST LH
43621-33E11
|
$60.10 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN
87259-85510
|
$6.60 | ||
|
Unavailable |
|||
|
#24
BALL
06111-07004
|
$1.48 | ||
|
Unavailable |
|||
|
#25
SPRING
09440-05005
|
$1.65 | ||
|
Unavailable |
|||
|
#26
E RING
08332-1104B
|
$2.18 | ||
|
Unavailable |
|||
|
#27
BRACKET,PILLION LH
43750-29F00
|
$83.78 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
01550-0816B
|
$3.33 | ||
|
Unavailable |
|||
