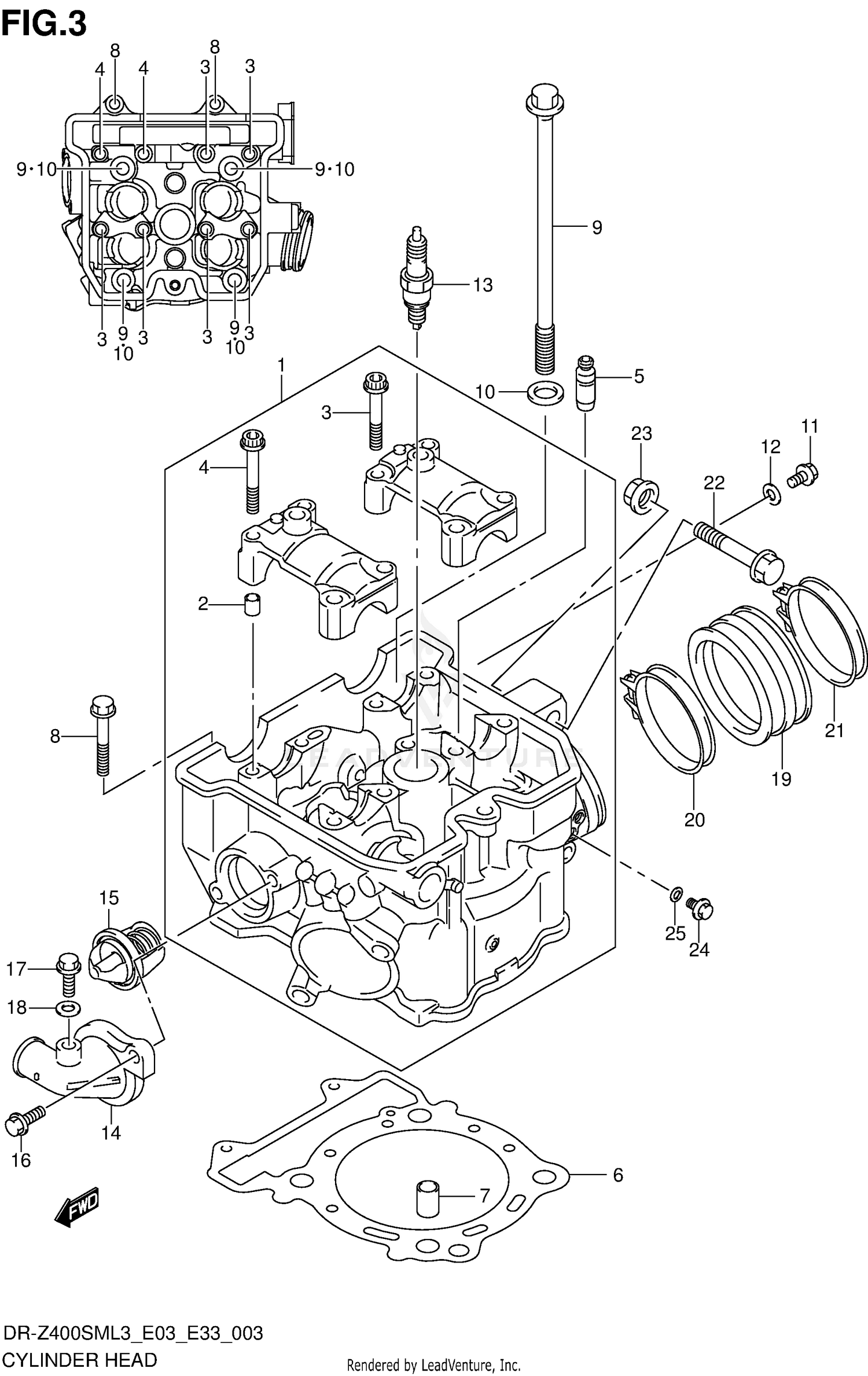

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-29F11
|
$1,161.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN (8X11)
09206-08001
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
07120-0640B
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
07120-0645B
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE,VALVE (OS:0.3)
11115-20E70
|
$40.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET,CYLINDER HEAD
11141-29F01
|
$51.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN
04211-13189
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT (6X39)
09103-06026
|
$2.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT (10X175)
09103-10276
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (10.5X19X2)
09160-10082
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG
01550-0610A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET (5.8X13X1.2)
09168-06023
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SPARK PLUG (NGK,CR8E)
09482-00456
|
$8.08 | ||
|
Unavailable |
|||
|
#13
SPARK PLUG (DENSO,U24ESR-N)
09482-00457
|
$7.52 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (NGK,CR7E)
09482-00516
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (CR9E)
09482-00458
|
$7.76 | ||
|
Unavailable |
|||
|
#13
SPARK PLUG (NGK,CR10E)
09482-00460
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (DENSO,U22ESR-N)
09482-00515
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (DENSO,U27ESR-N)
09482-00459
|
$7.52 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (DENSO,U31ESR-N)
09482-00461
|
$15.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, THERMOSTAT
17661-29F10
|
$49.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
.THERMOSTAT,WATER
17670-33400
Superseded by 17670-33401
|
$43.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01547-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
UNION,AIR VENT
17568-50F00
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET (6.4X11.5X0.8)
09168-06026
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PIPE INTAKE
13111-29F10
Superseded by 13111-29F11
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
.CLAMP
09402-58208
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
.CLAMP
09402-52208
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT (10X50)
09103-10235
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
09159-10115
|
$4.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT (8X9.5)
09103-08421
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET (8.2X14X1)
09168-08016
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
