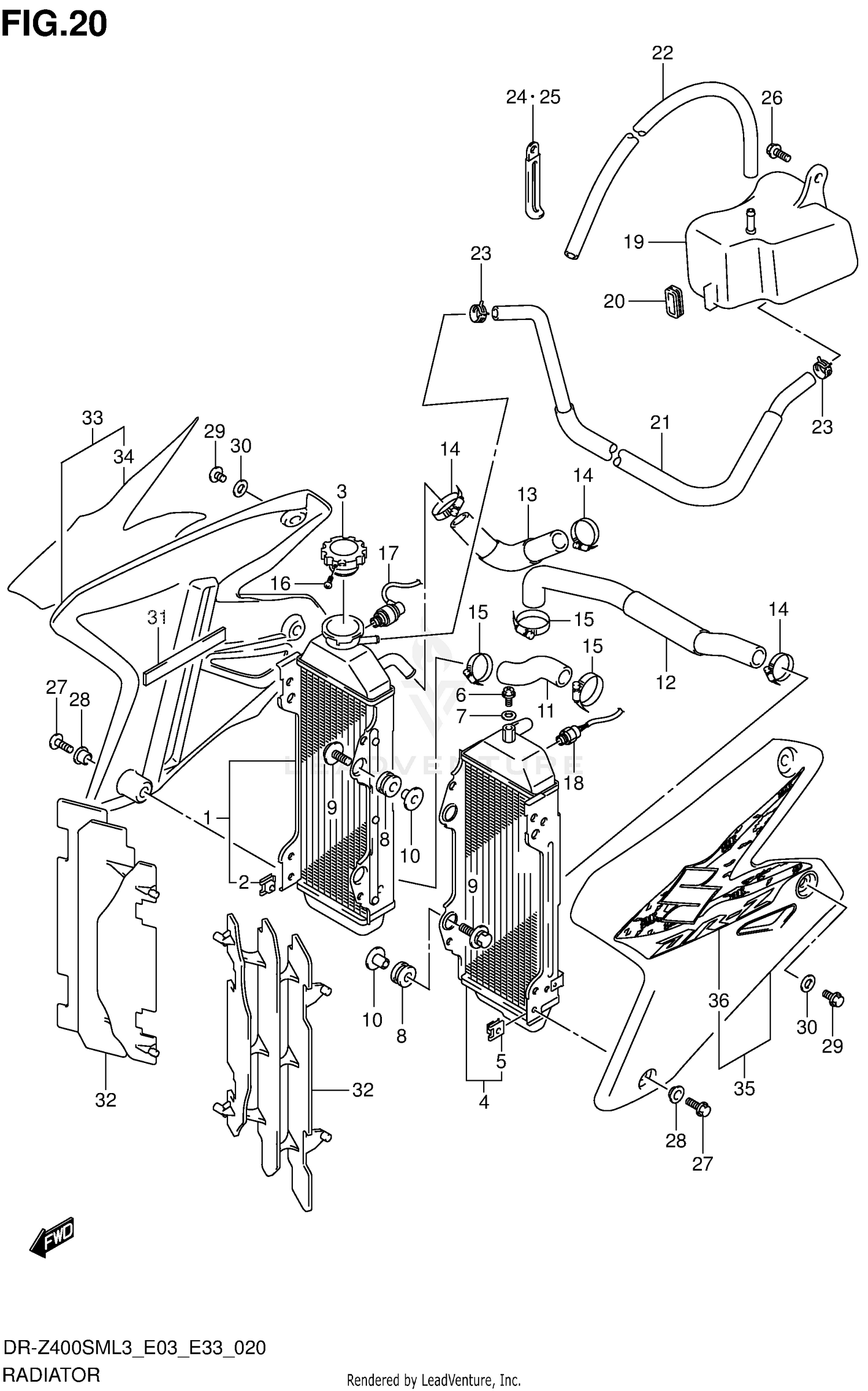

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR,WATER RH
17710-29F40
|
$630.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
.NUT
09148-06015
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP,RADIATOR (1.1)
17730-19D11
|
$52.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
RADIATOR,WATER LH
17720-29F40
|
$655.34 | ||
|
Available to order. Add to View Price |
|||
|
#5
.NUT
09148-06015
|
$3.70 | ||
|
Unavailable |
|||
|
#6
UNION,AIR VENT
17568-50F00
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET (6.4X11.5X0.8)
09168-06026
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CUSHION,RADIATOR,LOWER
17787-19A00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X25)
09116-06147
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER (6.5X10.5X14.1)
09180-06243
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE,RDTR INLET
17851-29F10
|
$17.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE,RADIATOR OUTLET
17852-29F30
|
$54.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE,RDTR JOINT
17853-29F10
|
$28.83 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
09402-28513
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
09402-32512
|
$13.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,RADIATOR CAP
17733-03D10
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH ASSY, WATER TEMP
34850-29F00
|
$134.23 | ||
|
Available to order. Add to View Price |
|||
|
#18
SWITCH,FAN
17680-24A30
|
$133.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
TANK,RESERVOIR
17911-29F11
|
$61.63 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION,RESERVOIR TANK
17913-29F00
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE,RESERVOIR TANK,INLET
17981-29F01
|
$22.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE (5X9X2000)
09352-50901-00B
|
$33.28 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
09401-08411
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP (L:45)
09404-08205
Superseded by 09404-08211
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
|
#26
BOLT
01550-0612A
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT (6X16)
09103-06274
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
09169-06053
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT (6X8)
09103-06275
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER (6.5X14X1.6)
09160-06125
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#31
CUSHION,TOOL HOLDER
47451-38A01
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#32
LOUVER,RADIATOR
17831-37E11
|
$23.56 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, RADIATOR RH (BLACK)
17760-29FJ0-019
|
$196.75 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, RADIATOR RH (WHITE)
17760-29FJ0-30H
|
$204.37 | ||
|
Available to order. Add to View Price |
|||
|
#34
TAPE, RADIATOR COVER RH
68665-29FJ0-HMU
|
|||
|
Unavailable |
|||
|
#34
TAPE, RADIATOR COVER RH
68665-29FJ0-HMV
|
$82.75 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER, RADIATOR LH (BLACK)
17770-29FJ0-019
|
$196.75 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER, RADIATOR LH (WHITE)
17770-29FJ0-30H
|
$204.37 | ||
|
Available to order. Add to View Price |
|||
|
#36
TAPE, RADIATOR COVER LH
68675-29FJ0-HMU
|
$78.75 | ||
|
Available to order. Add to View Price |
|||
|
#36
TAPE, RADIATOR COVER LH
68675-29FJ0-HMV
|
$78.75 | ||
|
Available to order. Add to View Price |
|||
