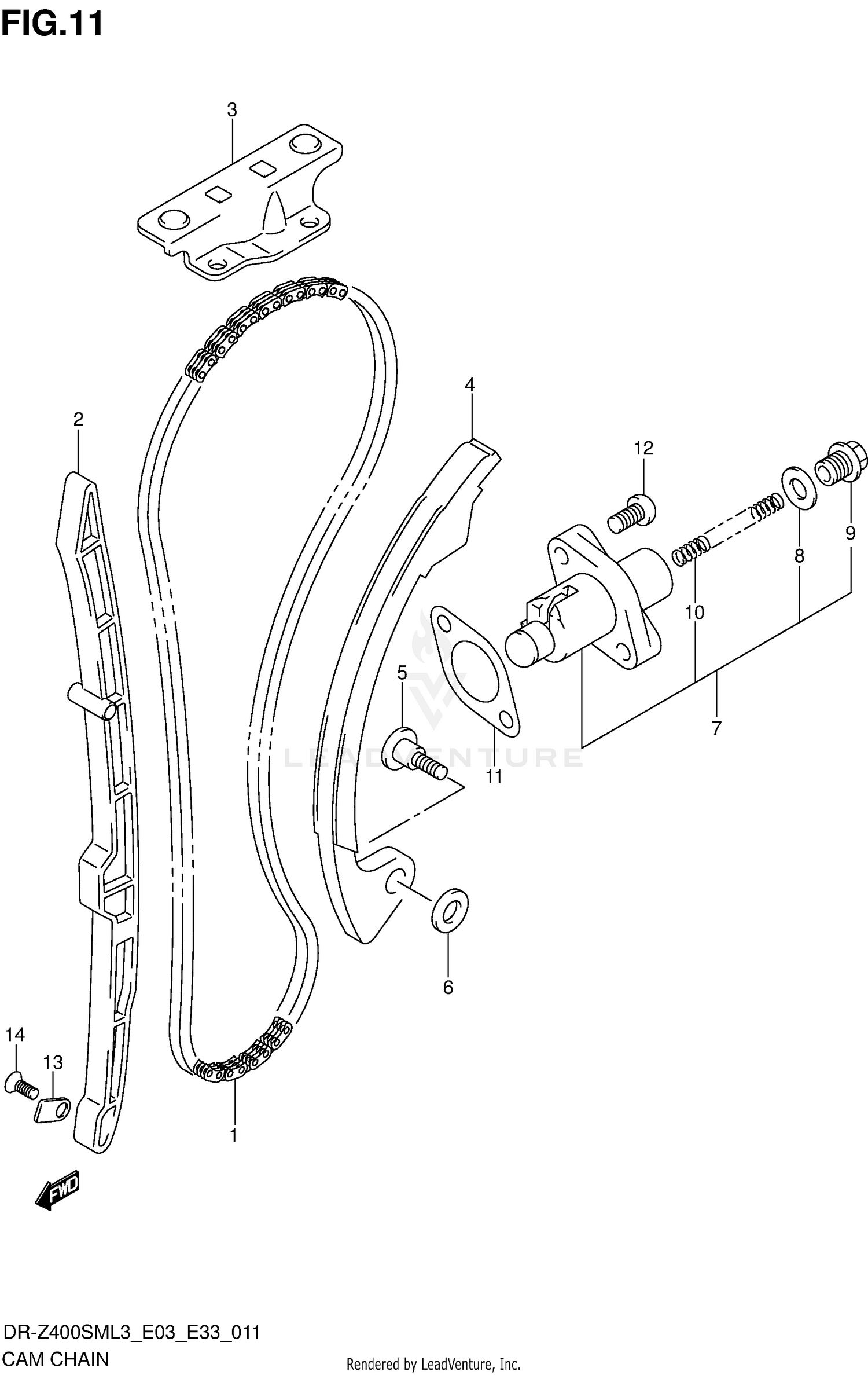

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN,CAMSHAFT DRIVE
12760-29F01
|
$120.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE,CAM CHAIN NO.1
12771-29F00
|
$41.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE,CAM CHAIN NO.2
12782-29F00
|
$36.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
TENSIONER,CAM CHAIN
12811-29F10
Superseded by 12811-29F11
|
$43.84 | ||
|
Unavailable |
|||
|
#5
BOLT,CAM CHAIN TENSIONER
12812-35C00
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
08211-06181
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
ADJUSTER ASSY,TENSIONER
12830-29F10
|
$172.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, TENSIONER ADJUSTER
12837-24F10
|
$5.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG
12833-05A00
|
$20.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
12831-39F00
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
.GASKET, TENSIONER ADJUSTER
12837-24A10
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
07130-0625A
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
RETAINER,CAM CHAIN GUIDE NO,1
12773-24F00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (6X12)
09126-06011
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
