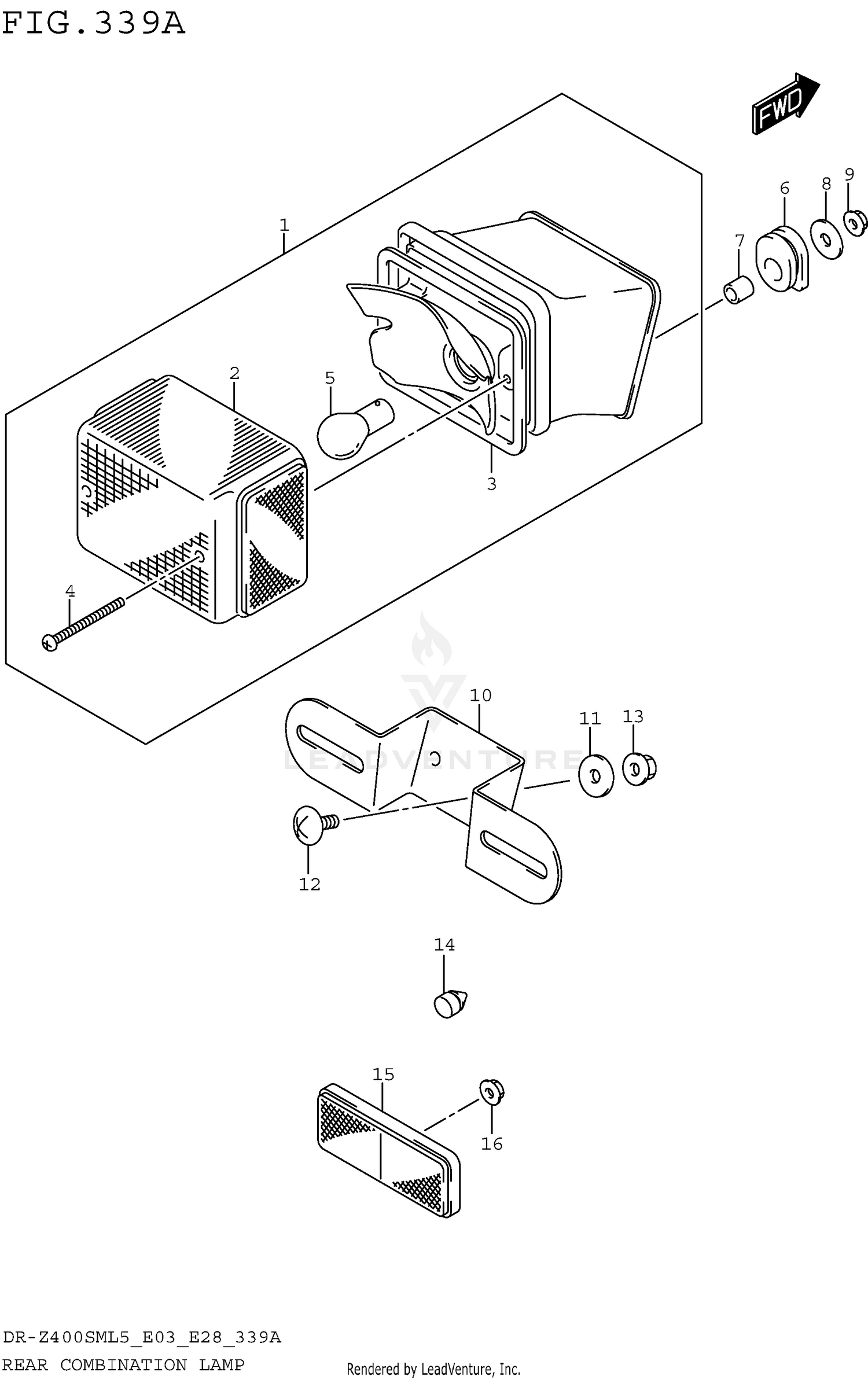

Rear Combination Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY,REAR COMB
35710-29F30
|
$148.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS
35712-42A30
|
$68.03 | ||
|
Available to order. Add to View Price |
|||
|
#3
.GASKET,LENS
35713-14D30
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (4X45)
09125-04501
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB (12V,21/5W)
09471-12083
Superseded by 09471-12128
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION,REAR COMB
35781-29F00
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER (6.5X10X10)
09180-06310
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER (6.5X20X1.6)
09160-06088
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BRACKET,LICENSE PLATE
35927-29F10
|
$18.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (6.5X20X1.6)
09160-06088
|
$2.09 | ||
|
Unavailable |
|||
|
#12
.SCREW
02142-0616A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
08316-1006A
|
$2.72 | ||
|
Unavailable |
|||
|
#14
CUSHION,LICENSE PLATE
09321-06013
Superseded by 09321-06036
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
REFLEX REFLECTOR ASSY, REAR
35970-07F01
|
$26.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
