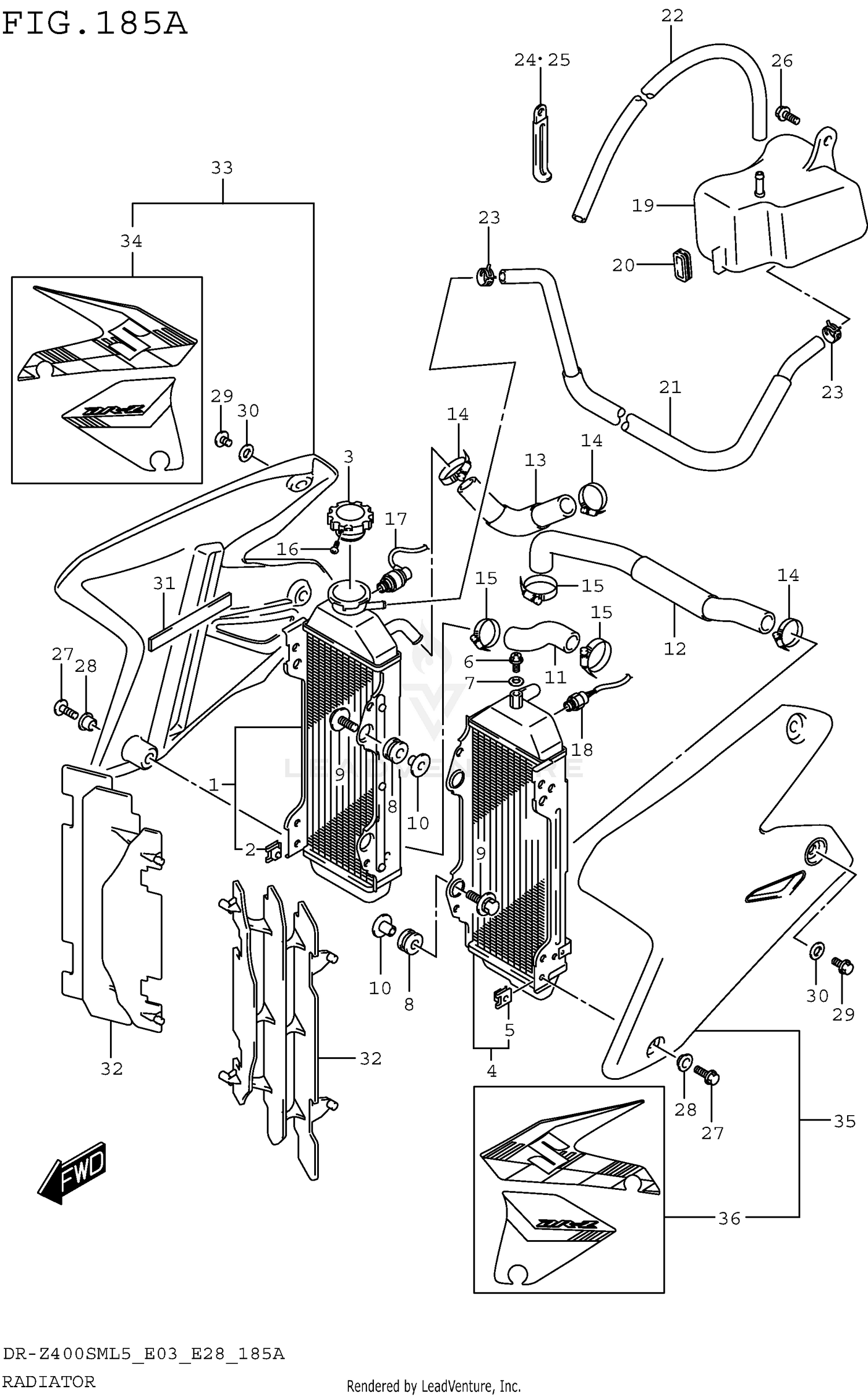

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR,WATER RH
17710-29F40
|
$649.37 | ||
|
Available to order. Add to View Price |
|||
|
#2
.NUT
09148-06015
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP,RADIATOR (1.1)
17730-19D11
|
$54.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
RADIATOR,WATER LH
17720-29F40
|
$675.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
.NUT
09148-06015
|
$3.81 | ||
|
Unavailable |
|||
|
#6
UNION,AIR VENT
17568-50F00
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET (6.4X11.5X0.8)
09168-06026
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CUSHION,RADIATOR,LOWER
17787-19A00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X25)
09116-06147
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER (6.5X10.5X14.1)
09180-06243
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE,RDTR INLET
17851-29F10
|
$18.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE,RADIATOR OUTLET
17852-29F30
|
$56.79 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE,RDTR JOINT
17853-29F10
|
$30.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
09402-28513
|
$8.81 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
09402-32512
|
$13.97 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,RADIATOR CAP
17733-03D10
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH ASSY, WATER TEMP
34850-29F00
|
$140.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
SWITCH,FAN
17680-24A30
|
$139.27 | ||
|
Available to order. Add to View Price |
|||
|
#19
TANK,RESERVOIR
17911-29F11
|
$64.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION,RESERVOIR TANK
17913-29F00
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE,RESERVOIR TANK,INLET
17981-29F01
|
$23.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE (5X9X2000)
09352-50901-00B
|
$34.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
09401-08411
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP (L:45)
09404-08205
Superseded by 09404-08211
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#26
BOLT
01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT (6X16)
09103-06274
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
09169-06053
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT (6X8)
09103-06275
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER (6.5X14X1.6)
09160-06125
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#31
CUSHION,TOOL HOLDER
47451-38A01
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#32
LOUVER,RADIATOR
17831-37E11
|
$24.62 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, RADIATOR RH (WHITE)
17760-29FS0-30H
|
$232.69 | ||
|
Available to order. Add to View Price |
|||
|
#34
TAPE, RADIATOR COVER RH
68660-29FS0
|
|||
|
Unavailable |
|||
|
#35
COVER, RADIATOR LH (WHITE)
17770-29FS0-30H
|
$232.69 | ||
|
Available to order. Add to View Price |
|||
|
#36
TAPE, RADIATOR COVER LH
68670-29FS0
|
|||
|
Unavailable |
|||
