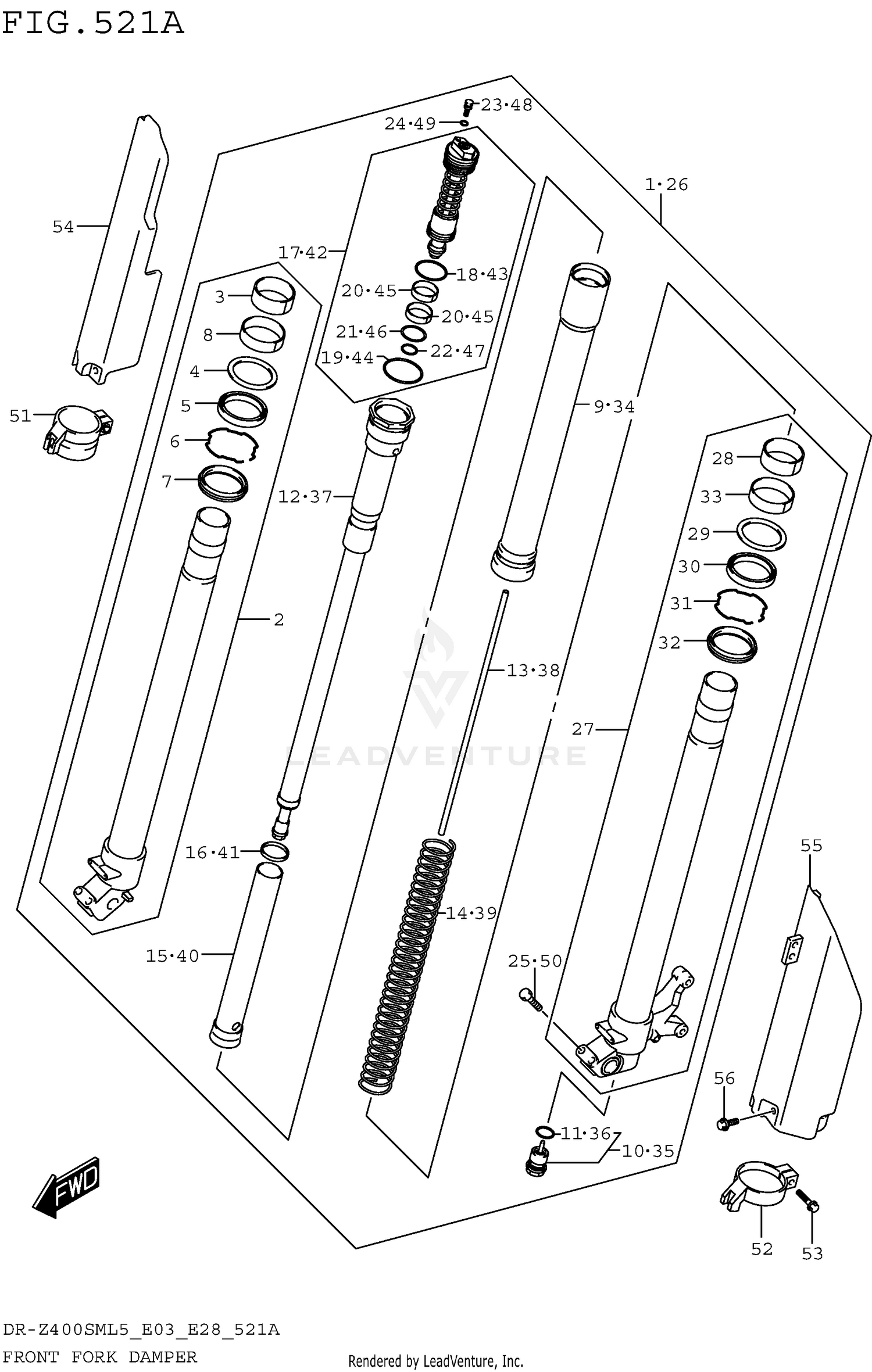

Front Fork Damper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY,FRONT FORK RH
51103-29F70
|
$2,069.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
.TUBE,INNER RH
51110-29F70
|
$929.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
..BUSH,GUIDE
51167-36F00
|
$26.92 | ||
|
Available to order. Add to View Price |
|||
|
#4
..SPACER,SEAL
51158-36F00
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
..OIL SEAL
51153-37F80
|
$38.06 | ||
|
Available to order. Add to View Price |
|||
|
#6
..RING,OIL SEAL STOPPER
51156-27C40
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
..SEAL,DUST
51173-37F80
|
$34.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
..BUSH,SLIDE
51121-36F00
|
$31.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
.TUBE,OUTER
51130-29F70
|
$906.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
.BOLT,CENTER
51170-37F70
|
$248.52 | ||
|
Available to order. Add to View Price |
|||
|
#11
O RING
51177-36E20
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD, FRONT DAMPER
51190-29F70
|
$813.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
.ROD,PUSH
51191-29F70
|
$19.08 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SPRING,FRONT
51171-29F70
|
$97.77 | ||
|
Unavailable |
|||
|
#15
.COLLAR,SPRING
51198-37F70
|
$86.01 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAT, SPRING
51178-29F70
|
$9.91 | ||
|
Unavailable |
|||
|
#17
.BOLT,FORK
51351-29F70
|
$397.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
..O RING
51117-37F80
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#19
O RING
51118-37F80
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
..BUSH,FORK BOLT SLIDE
51123-28E30
|
$17.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
O RING
51174-36E40
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#22
O RING
51175-36E20
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
.BOLT,PLUG
51357-36F20
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#24
..O RING,PLUG
51358-28E30
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
51166-35F00
|
$9.68 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER ASSY,FRONT FORK LH
51104-29F70
|
$2,722.29 | ||
|
Available to order. Add to View Price |
|||
|
#27
.TUBE,INNER LH
51120-29F70
|
$929.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
..BUSH,GUIDE
51167-36F00
|
$26.92 | ||
|
Unavailable |
|||
|
#29
..SPACER,SEAL
51158-36F00
|
$10.59 | ||
|
Unavailable |
|||
|
#30
..OIL SEAL
51153-37F80
|
$38.06 | ||
|
Unavailable |
|||
|
#31
..RING,OIL SEAL STOPPER
51156-27C40
|
$6.90 | ||
|
Unavailable |
|||
|
#32
..SEAL,DUST
51173-37F80
|
$34.32 | ||
|
Unavailable |
|||
|
#33
..BUSH,SLIDE
51121-36F00
|
$31.18 | ||
|
Unavailable |
|||
|
#34
.TUBE,OUTER
51130-29F70
|
$906.55 | ||
|
Unavailable |
|||
|
#35
.BOLT,CENTER
51170-37F70
|
$248.52 | ||
|
Unavailable |
|||
|
#36
O RING
51177-36E20
|
$5.45 | ||
|
Unavailable |
|||
|
#37
ROD, FRONT DAMPER
51190-29F70
|
$813.33 | ||
|
Unavailable |
|||
|
#38
.ROD,PUSH
51191-29F70
|
$19.08 | ||
|
Unavailable |
|||
|
#39
.SPRING,FRONT
51171-29F70
|
$97.77 | ||
|
Unavailable |
|||
|
#40
.COLLAR,SPRING
51198-37F70
|
$86.01 | ||
|
Unavailable |
|||
|
#41
SEAT, SPRING
51178-29F70
|
$9.91 | ||
|
Unavailable |
|||
|
#42
.BOLT,FORK
51351-29F70
|
$397.76 | ||
|
Unavailable |
|||
|
#43
..O RING
51117-37F80
|
$7.84 | ||
|
Unavailable |
|||
|
#44
O RING
51118-37F80
|
$7.84 | ||
|
Unavailable |
|||
|
#45
..BUSH,FORK BOLT SLIDE
51123-28E30
|
$17.19 | ||
|
Unavailable |
|||
|
#46
O RING
51174-36E40
|
$5.64 | ||
|
Unavailable |
|||
|
#47
O RING
51175-36E20
|
$5.84 | ||
|
Unavailable |
|||
|
#48
.BOLT,PLUG
51357-36F20
|
$15.78 | ||
|
Unavailable |
|||
|
#49
..O RING,PLUG
51358-28E30
|
$4.85 | ||
|
Unavailable |
|||
|
#50
BOLT
51166-35F00
|
$9.68 | ||
|
Unavailable |
|||
|
#51
GUIDE,PROTECTOR RH
51220-36E61
|
$66.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
GUIDE,PROTECTOR LH
51210-36E61
|
$66.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
BOLT
01547-06207
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#54
PROTECTOR,FRONT FORK RH(BLACK
51501-29F70-019
|
$167.07 | ||
|
Available to order. Add to View Price |
|||
|
#55
PROTECTOR,FRONT FORK LH(BLACK
51511-29F70-019
|
$170.22 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT (6X10)
09103-06256
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
