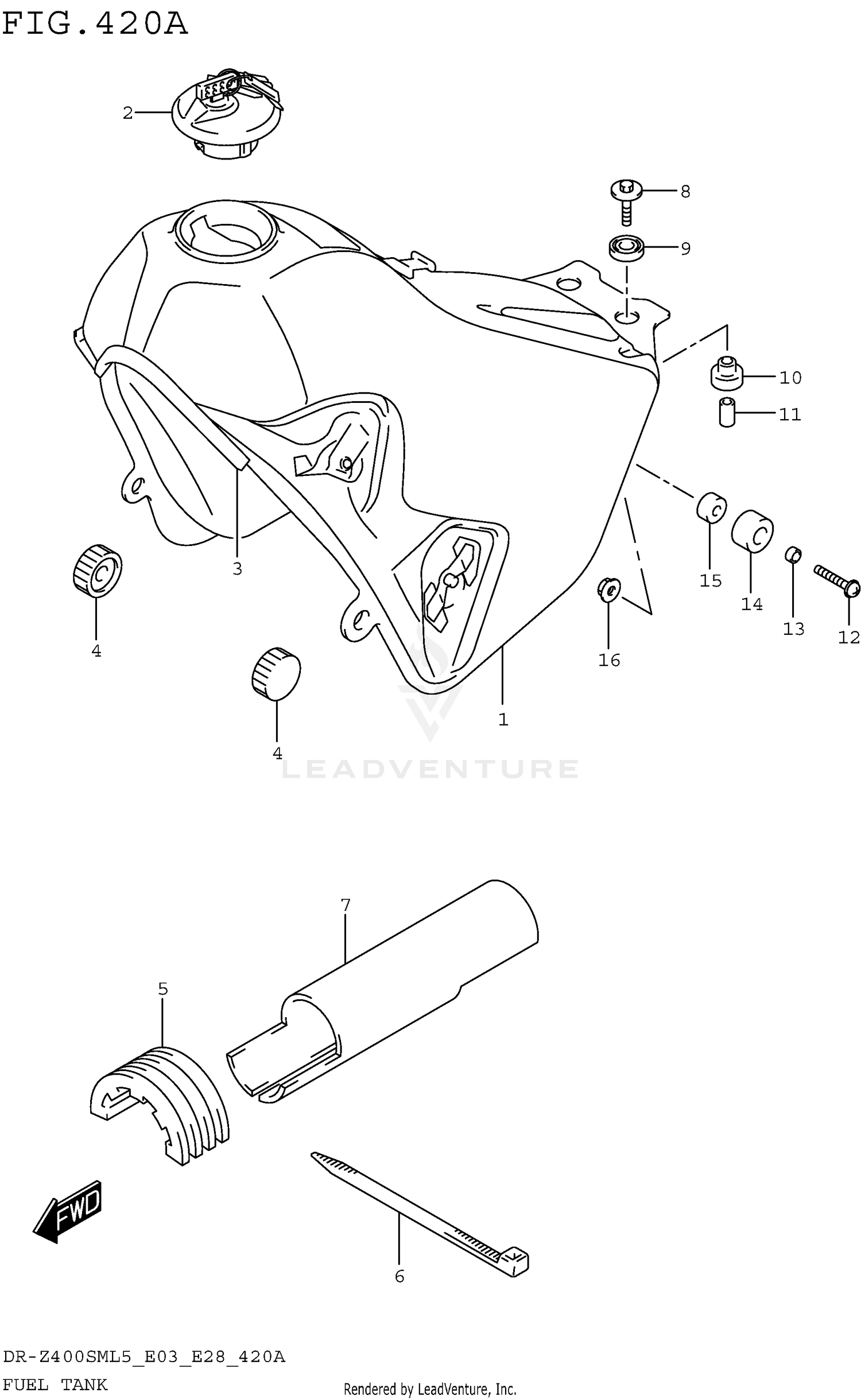

Fuel Tank (dr-z400sml5 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY,FUEL
49200-29FE0-019
Superseded by 49200-29FE1-019
|
$1,020.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP SET FUEL TANK FILLER
44200-29820
Superseded by 44200-29821
|
$156.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
MOLDING (L:300)
68241-04X50-300
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION
09329-10016
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION,FUEL TANK
44541-29F00
|
$39.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP (L:300)
09407-30402
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIELD,FUEL TANK
44194-29F00
|
$37.52 | ||
|
Unavailable |
|||
|
#8
BOLT (6X30)
09116-06214
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
09320-14022
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION (9X24X18)
09320-10020
Superseded by 09320-10071
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER (6.5X9X18)
09180-06271
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCREW
02112-1630B
|
$3.37 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER (6.5X20X9)
09180-06215
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION, SIDE
45149-14D00
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER (6.5X9X5)
09180-06306
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
08319-3106B
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
