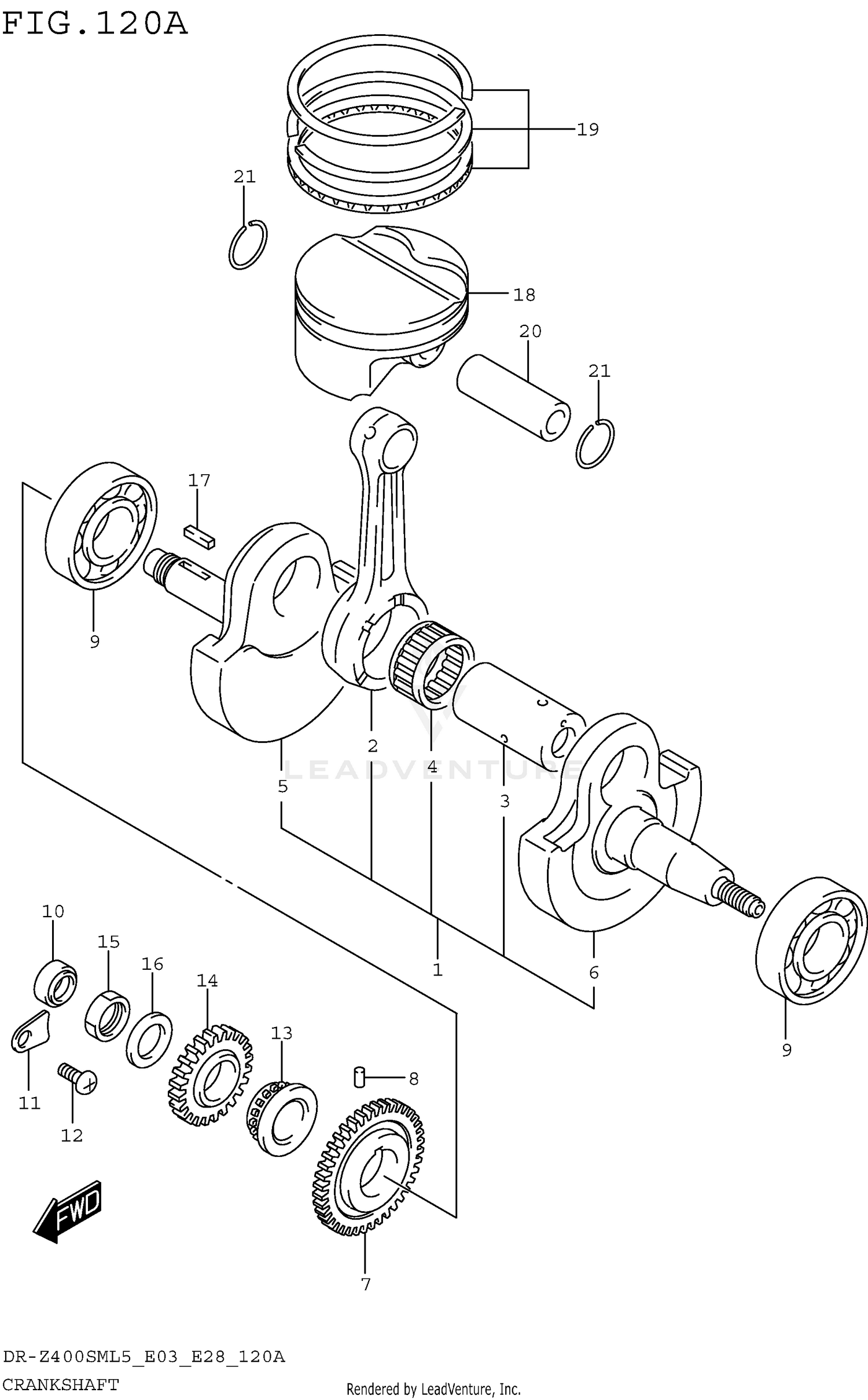

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
12200-07G02
Superseded by 12200-33H00
|
$1,017.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
.CONNECTING ROD
12160-29F02-0B0
Superseded by 12160-29F10-0B0
|
$235.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
.PIN,CRANK
12210-29F11
Superseded by 12210-29F20
|
$112.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BEARING (35X43X22)
09263-35044-0B0
Superseded by 09263-35047-0B0
|
$116.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
.CRANKSHAFT RH
12221-07G01
|
$219.68 | ||
|
Unavailable |
|||
|
#6
.CRANKSHAFT LH
12261-07G00
|
$219.68 | ||
|
Unavailable |
|||
|
#7
GEAR,CRANK BALANCER DRIVE (NT
12661-29F00
|
$162.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN (5X8)
09261-05005
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING (30X72X18)
09262-30100
|
$95.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL (14X24X6)
09282-14003
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#11
RETAINER,BEARING
24742-18A00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
02112-0612A
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SPROCKET,CAM CHAIN DRIVE (NT:
12731-29F10
|
$70.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR,PRIMARY DRIVE (NT:25)
21111-29F10
|
$91.68 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
09140-18012
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
09164-18008
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
KEY
09421-05002
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#18
PISTON
12111-29F00-0F0
|
$205.76 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING SET,PISTON
12140-29F00
|
$74.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN,PISTON
12151-24F10
|
$25.64 | ||
|
Available to order. Add to View Price |
|||
|
#21
SNAP RING
09381-20004
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
