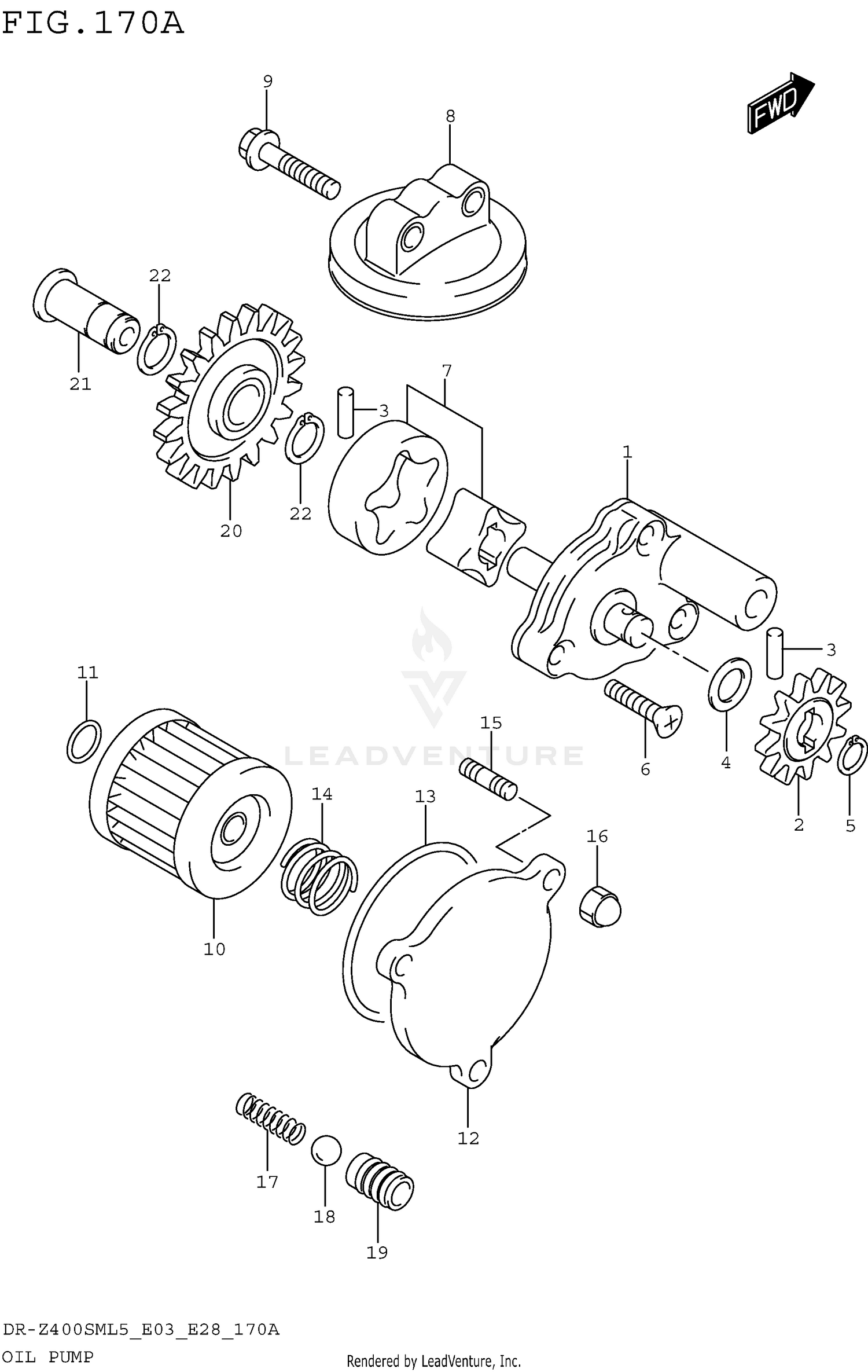

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,ENGINE OIL,NO.1
16400-29F00
|
$200.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR,OIL PUMP DRIVEN (NT:12)
16331-29F01
|
$45.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN (4X15.8)
09261-04009
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM (10X18X0.5)
09181-10158
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
08331-31109
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02122-0625A
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROTOR SET,OIL PUMP,NO.2
16410-29F00
|
$57.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
STRAINER,OIL PUMP NO.2
16520-29F01
|
$24.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
FILTER ASSY,ENG OIL
16510-29F00
|
$9.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
.O RING (D:1.9,ID:13)
09280-13004
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CAP,OIL FILTER
16512-47E00
|
$44.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
.O RING (D:2.4,ID:52.6)
09280-54001
|
$4.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SPRING
09440-18002
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT,STUD
09108-06123
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
08313-1006A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
09440-07073
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALL
06111-12004
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAT,OIL CHECK VALVE
16442-29F00
|
$36.07 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR,OIL PUMP IDLE (NT:20)
16321-29F00
|
$34.24 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHAFT,OIL PUMP IDLE GEAR
16322-29F00
|
$22.44 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
08331-3112A
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
