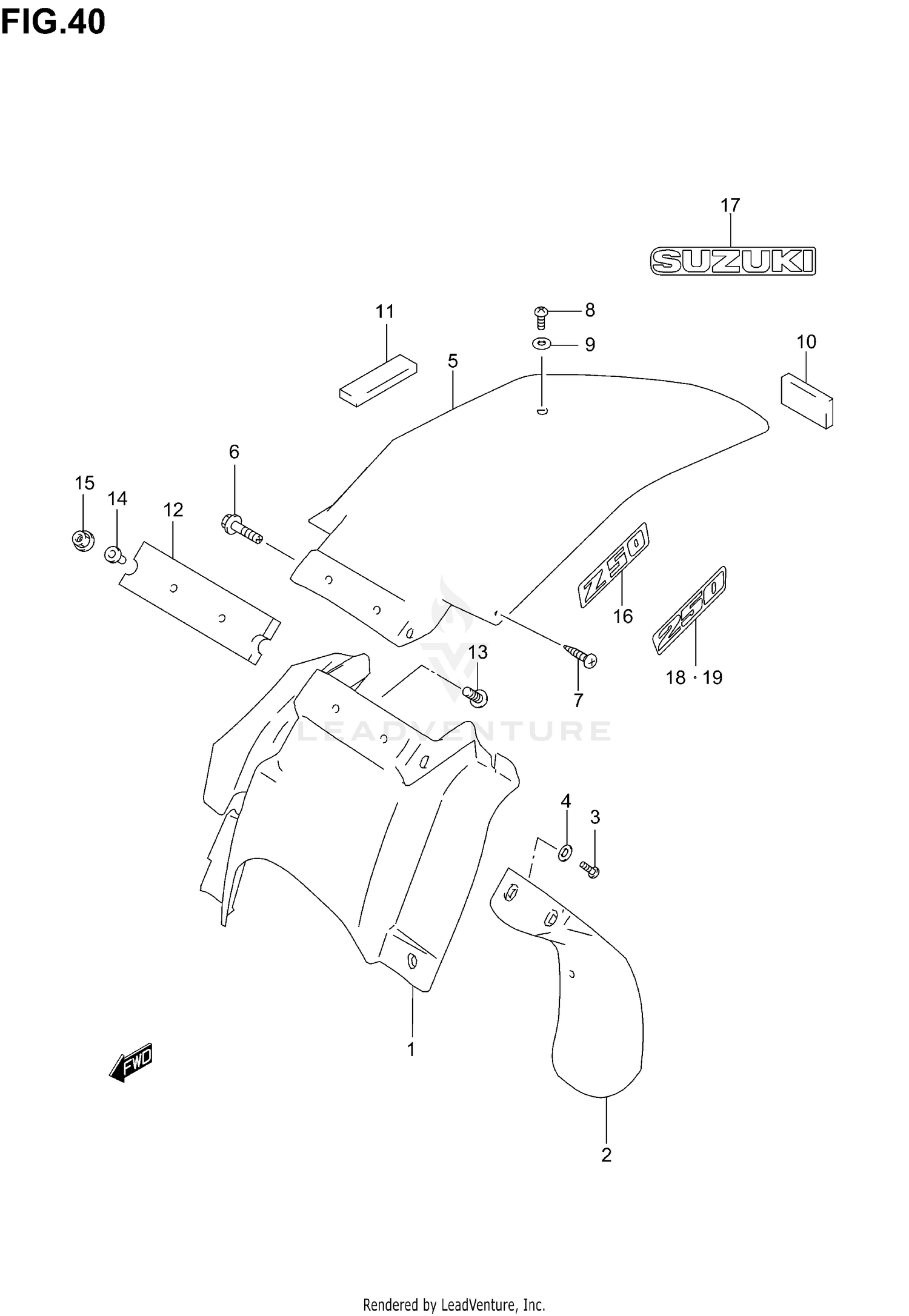

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY, REAR FENDER FRONT
63112-13E10
|
$40.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUARD, REAR FENDER MAD
63114-13E00
|
$35.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
02142-06123
Superseded by 02142-0612A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
09169-06045
Superseded by 09169-06055
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
BODY, RR FENDER RR (YELLOW)
63113-13E00-YR1
Superseded by 63113-13E10-YU1
|
$119.54 | ||
|
Available to order. Add to View Price |
|||
|
#5
BODY, RR FENDER RR (YELLOW)
63113-13E00-YU1
Superseded by 63113-13E10-YU1
|
$119.54 | ||
|
Unavailable |
|||
|
#6
BOLT
09116-06002
Superseded by 09116-06109
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW (6X16)
09139-06083
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW (6X20)
09139-06050
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
09169-06016
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION
56314-48B10
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
PROTECTOR
63193-13E00
|
$8.31 | ||
|
Unavailable |
|||
|
#12
CUSHION, FRONT
63115-13E00
|
$17.77 | ||
|
Unavailable |
|||
|
#13
SCREW, REAR
02142-05203
Superseded by 02142-0520B
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
09169-06062
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
09159-05043
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
EMBLEM, "250"
68171-13E00-GY8
|
$12.17 | ||
|
Unavailable |
|||
|
#17
EMBLEM SUZUKI (YELLOW BLACK)
68721-13A00-GY8
Superseded by 68721-13A01-GY8
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
EMBLEM, "250" RH
68171-13E10-GY8
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
EMBLEM, "250" LH
68172-13E10-GY8
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
