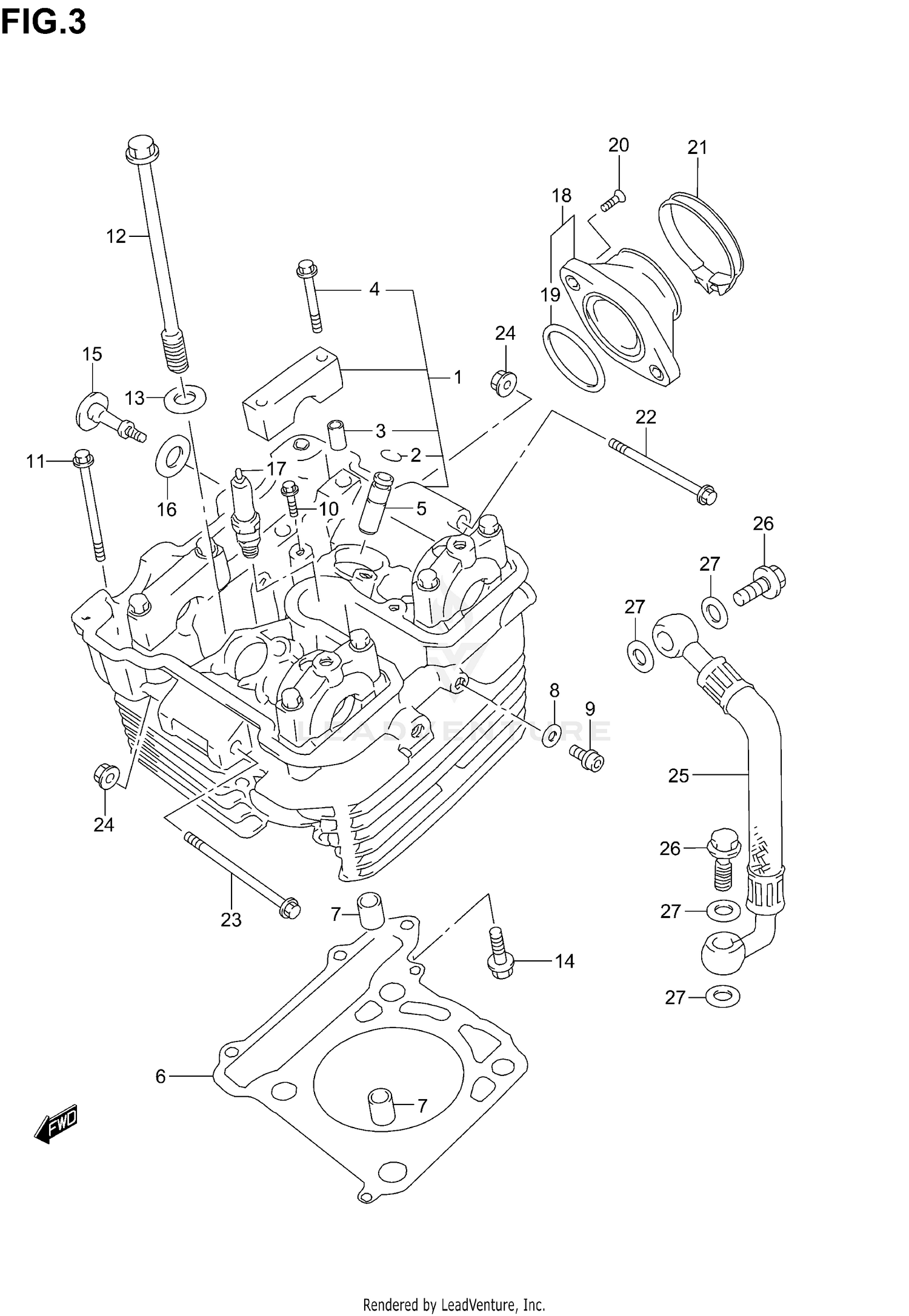

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-13E01
|
$780.12 | ||
|
Unavailable |
|||
|
#1
HEAD ASSY, CYLINDER
11100-13E10
|
$805.31 | ||
|
Unavailable |
|||
|
#2
.RING,SNAP (10X85)
09381-10004
|
$1.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
PIN (6.2X8X11)
09206-08001
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X45)
09103-06165
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, VALVE (OS:0.3)
11115-33D71
|
$44.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD
11141-13E00
|
$48.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN
04211-13189
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GASKET (5.8X13X1.2)
09168-06023
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, OIL GALLERY
07120-06123
Superseded by 07120-0612B
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X70)
09103-06103
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (10X160)
09103-10272
|
$18.92 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET (10.2X20X2.3)
09168-10031
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01550-06303
Superseded by 01550-0630A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CYLINDER HEAD SIDE FACE
11161-33E00
|
$12.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, HEAD COVER
11191-13E00
|
$5.61 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPARK PLUG (CR9E)
09482-00458
|
$7.76 | ||
|
Unavailable |
|||
|
#17
SPARK PLUG (DENSO,U27ESR-N)
09482-00459
|
$7.52 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPARK PLUG (NGK,CR8E)
09482-00456
|
$8.08 | ||
|
Unavailable |
|||
|
#17
SPARK PLUG (NGK,CR10E)
09482-00460
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPARK PLUG (DENSO,U24ESR-N)
09482-00457
|
$7.52 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPARK PLUG (DENSO,U31ESR-N)
09482-00461
|
$15.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE ASSY, INTAKE
13101-13E01
|
$66.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE ASSY, INTAKE
13101-13E20
|
$67.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
O RING (D:1.9,ID:40.7)
09280-41007
|
$11.01 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW (6X16)
09126-06014
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#21
.CLAMP
09402-52208
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
09402-48208
|
$5.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT (8X60)
09103-08217
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT (8X70)
09103-08099
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
08319-31088
Superseded by 08319-3108A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE, TRANSMISSION OIL OUTER
16480-13E00
|
$142.53 | ||
|
Available to order. Add to View Price |
|||
|
#26
UNION BOLT
09360-10032
Superseded by 09360-10055
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET (10.1X16X1)
09168-10007
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
