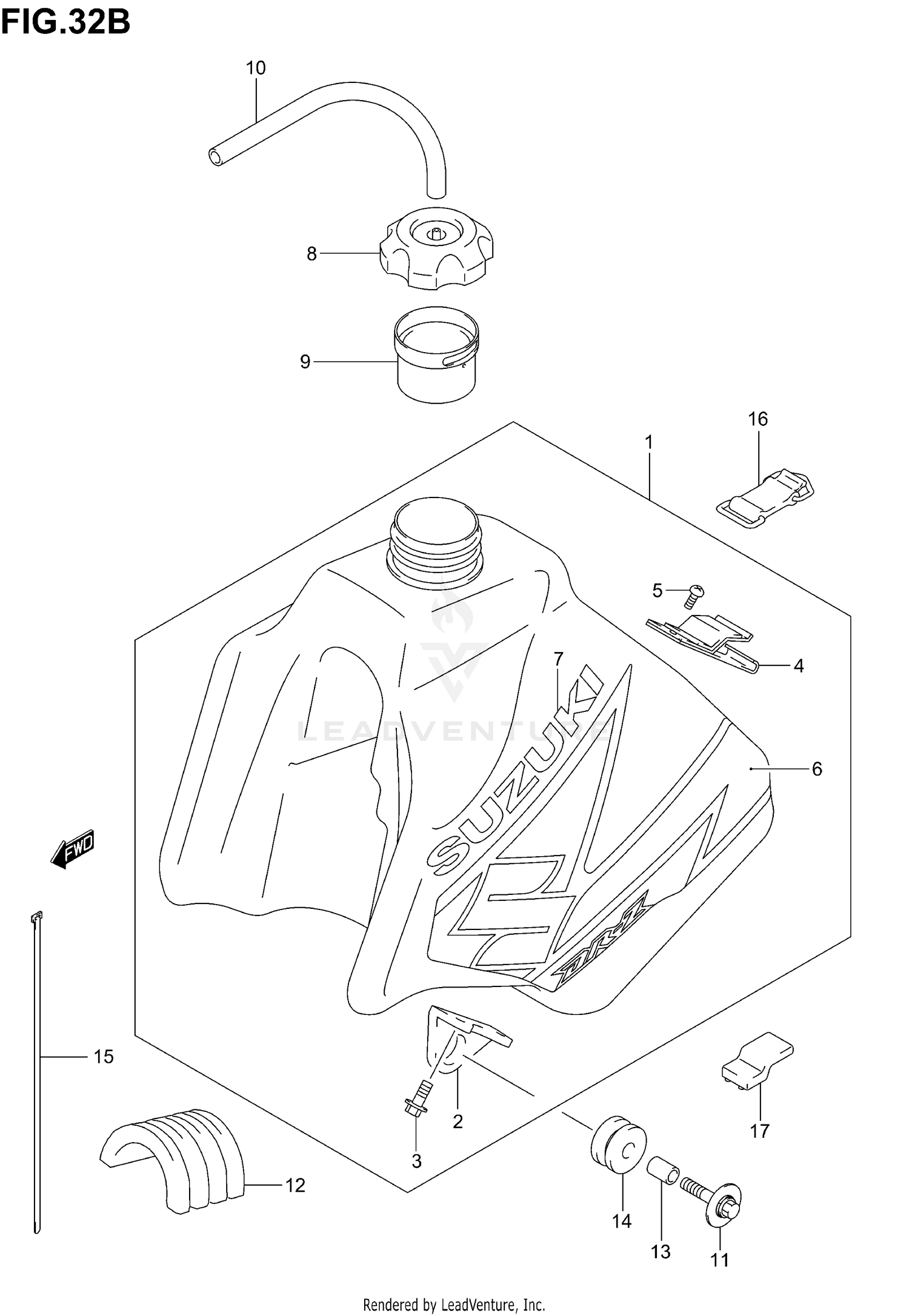

Fuel Tank (model K3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL (YELLOW)
44100-13EF0-YU1
|
$904.23 | ||
|
Unavailable |
|||
|
#2
.BRACKET, FRONT
44131-27C01
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01547-06123
Superseded by 01547-0612B
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BRACKET, REAR
44150-13E30
|
$14.58 | ||
|
Unavailable |
|||
|
#5
SCREW
02112-06123
Superseded by 02112-0612A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
TAPE SET, FUEL TANK
68110-13EF0-KD2
|
$248.07 | ||
|
Unavailable |
|||
|
#7
EMBLEM
68111-13EF0-GY8
|
$20.38 | ||
|
Unavailable |
|||
|
#8
CAP ASSY,FUEL TANK FILLER
44200-29F00
Superseded by 44200-29F01
|
$47.34 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
TUBE, TANK FILLER
44199-19A00
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FRONT
09118-06112
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION, FUEL TANK CENTER
44541-13E10
|
$28.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
09180-06268
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION (8.7X26X14)
14762-01B01
Superseded by 14762-01B02
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
09407-30402
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, REAR
44560-44E00
|
$16.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION, FUEL TANK
44542-13E30
|
$5.70 | ||
|
Unavailable |
|||
