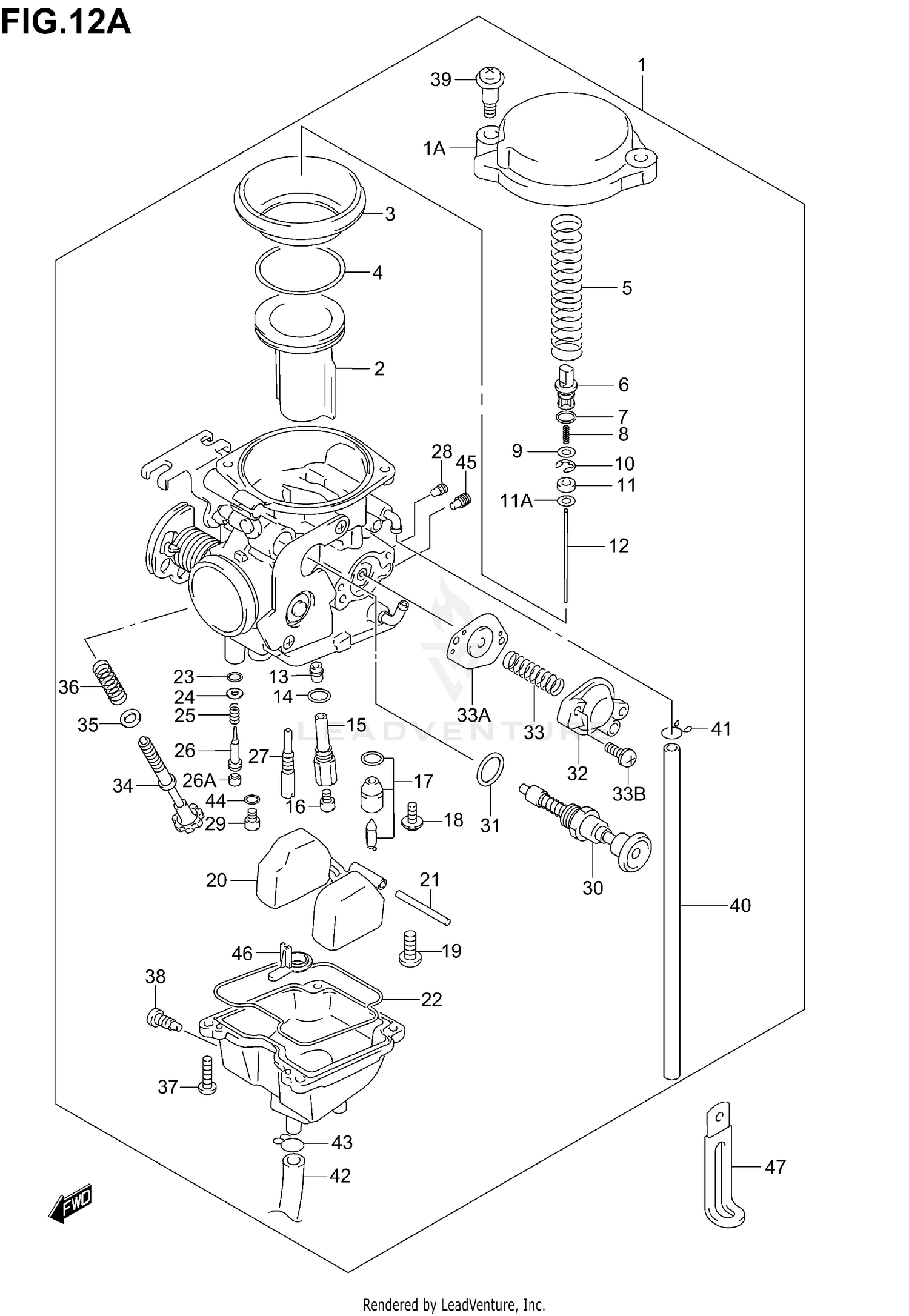

Carburetor (e33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
13200-13E40
Superseded by 13200-13E41
|
$694.18 | ||
|
Available to order. Add to View Price |
|||
|
#1
CARBURETOR ASSY
13200-13E41
|
$694.18 | ||
|
Unavailable |
|||
|
#1A
DIAPHRAGM COVER
13502-19E00
|
$57.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE, PISTON
13501-13E20
|
$99.48 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM
13507-19E00
Superseded by 13507-19E01
|
$36.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING
13504-16E00
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
13573-13E20
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER
13418-33E00
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING (D:1.9,ID:4.8)
09280-05004
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING
13481-13F00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
13382-19E00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
.E RING,MULTIPLE JET NOZZLE
13394-17E60
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING
13387-13F00
|
$10.54 | ||
|
Available to order. Add to View Price |
|||
|
#11A
WASHER
13291-29FA0
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEEDLE, JET
13383-13E40
|
$13.77 | ||
|
Unavailable |
|||
|
#13
JET
09494-00939
|
$56.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
.O RING
13246-43010
Superseded by 13246-43011
|
$5.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HOLDER, JET
13385-13E40
|
$24.35 | ||
|
Unavailable |
|||
|
#16
JET,POWER(132.5
09491-26013
Superseded by 09491-26019
|
$18.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
VALVE ASSY,NEED
13370-04F00
Superseded by 13370-04F01
|
$71.12 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
13602-05A10
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
02112-04083
Superseded by 02112-0408A
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#20
FLOAT ASSY
13250-04F00
|
$44.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
.PIN,FLOAT
13254-01010
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
13258-04F00
|
$12.78 | ||
|
Available to order. Add to View Price |
|||
|
#23
.O-RING
13295-29900
Superseded by 13295-29901
|
$5.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
.WASHER (14X17)
13291-29900
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
.SPRING,THROTTLE SCREW
13268-48700
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
ADJUSTER
13279-13E40
|
$12.32 | ||
|
Available to order. Add to View Price |
|||
|
#26A
PLUG
13281-05A00
|
$5.94 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
JET, PILOT (#12.5)
09492-12008
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET, POWER (80)
09492-80007
|
$9.64 | ||
|
Unavailable |
|||
|
#29
JET, MAIN (55)
09491-55004
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLUNGER ASSY
13411-13E40
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
.O RING (16)
13278-47090
Superseded by 13278-47091
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER ASSY
13502-10F00
|
$44.81 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPRING
13271-13F00
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#33A
DIAPHRAGM ASSY
13480-13F00
Superseded by 13480-13F01
|
$23.17 | ||
|
Available to order. Add to View Price |
|||
|
#33B
SCREW
13601-04148
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
ADJUSTER
13267-13D01
|
$16.85 | ||
|
Unavailable |
|||
|
#35
PACKING
13285-07F00
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPRING
13342-82370
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW
02112-04107
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, DRAIN
13247-13A00
Superseded by 13247-02340
|
$6.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
SCREW
13247-33E00
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#40
HOSE
13686-07F00
|
$35.28 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP
13671-06A10
|
$2.68 | ||
|
Unavailable |
|||
|
#42
HOSE(4.5X8X650)
13683-20B00
Superseded by 13683-20B01
|
$23.41 | ||
|
Available to order. Add to View Price |
|||
|
#43
.CLIP
09401-08410
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#44
O RING
13387-13E40
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#45
JET
09492-30013
|
$16.18 | ||
|
Available to order. Add to View Price |
|||
|
#46
RING
13387-29FA0
Superseded by 13387-29FA1
|
$15.70 | ||
|
Available to order. Add to View Price |
|||
|
#46
RING
13387-29FA1
|
$15.70 | ||
|
Unavailable |
|||
|
#47
CLAMP
09404-06432
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLAMP
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
