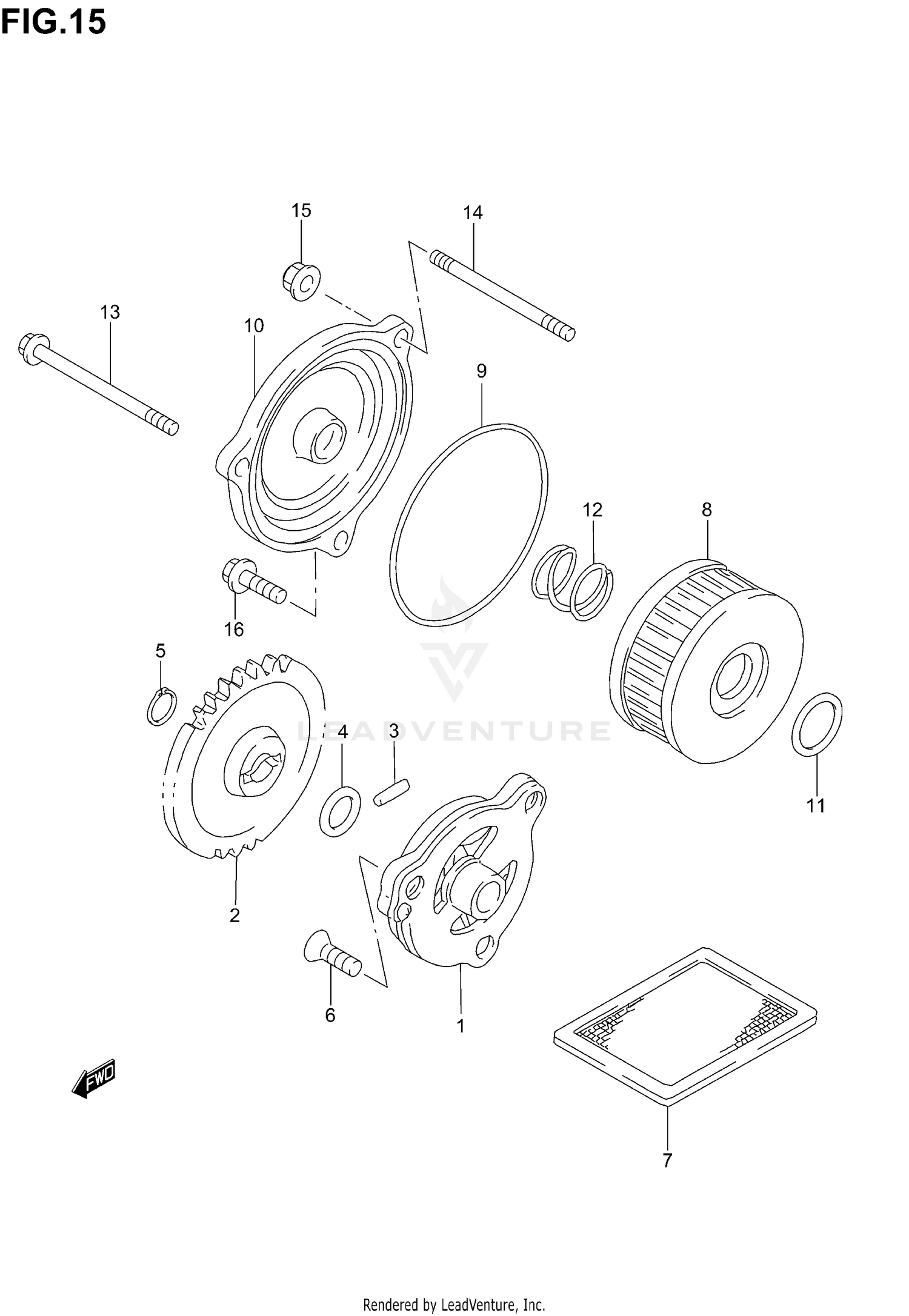

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY, ENGINE OIL
16400-13E00
|
$127.30 | ||
|
Unavailable |
|||
|
#2
GEAR, OIL PUMP DRIVEN (NT:33)
16331-38200
|
$51.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN (4X15.8)
09261-04009
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM (10X18X0.5)
09181-10158
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
08331-31106
Superseded by 08331-31109
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02122-06163
Superseded by 02122-0616A
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
STRAINER,ENGINE
16520-30A00
Superseded by 16520-30A01
|
$9.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
FILTER, ENGINE OIL
16510-38240
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
O RING (D:2.4,ID:73)
09280-72001
|
$6.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CAP, OIL FILTER
16512-12E00
|
$36.23 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (D:2.4,ID:15.8)
09280-15007
|
$2.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SPRING
09440-21006
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01547-06753
Superseded by 01547-0675B
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, OIL FILTER CAP STUD
16513-13E00
Superseded by 09108-06127
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, OIL FILTER CAP STUD
09108-06127
|
$5.06 | ||
|
Unavailable |
|||
|
#15
NUT
08313-20063
Superseded by 08313-2006A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
.BOLT
01547-06203
Superseded by 01547-0620B
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
