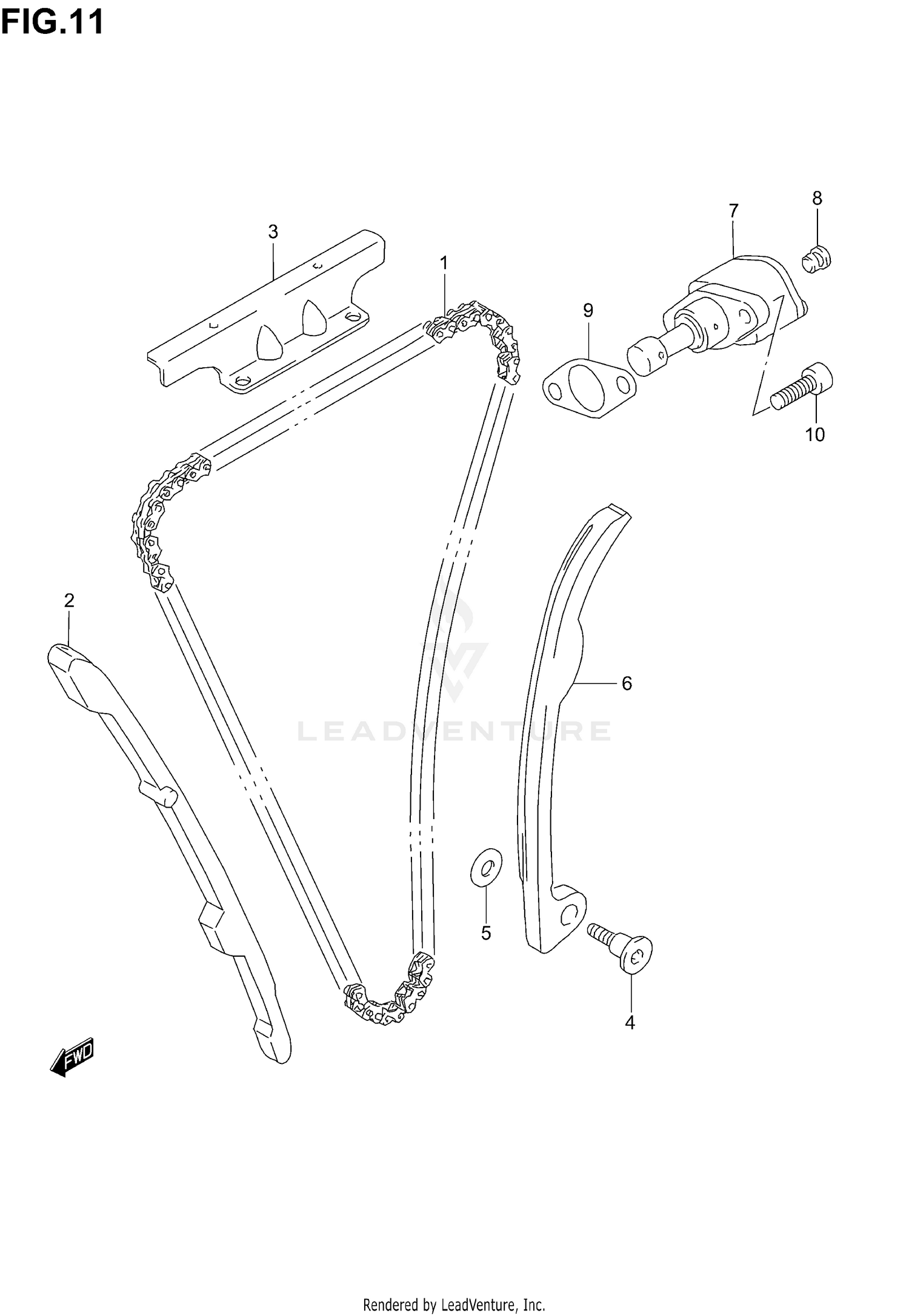

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CAM SHAFT DRIVE
12760-13E00
|
$153.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE,CAM CHAIN
12771-13E00
Superseded by 12771-13E01
|
$47.93 | ||
|
Unavailable |
|||
|
#3
GUIDE, CAM CHAIN NO.2
12782-13E00
|
$28.32 | ||
|
Unavailable |
|||
|
#4
BOLT,CAM CHAIN TENSIONER
12812-35C00
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
08211-06181
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
TENSIONER,CAM C
12811-13E00
Superseded by 12811-13E01
|
$47.49 | ||
|
Unavailable |
|||
|
#7
ADJUSTER ASSY, TENSIONER
12830-13E00
|
$153.72 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, ADJUSTER
12839-38200
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, TENSIONER ADJUSTER
12837-31320
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FRONT BRG HOUSING
07130-06203
Superseded by 07130-0620B
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
