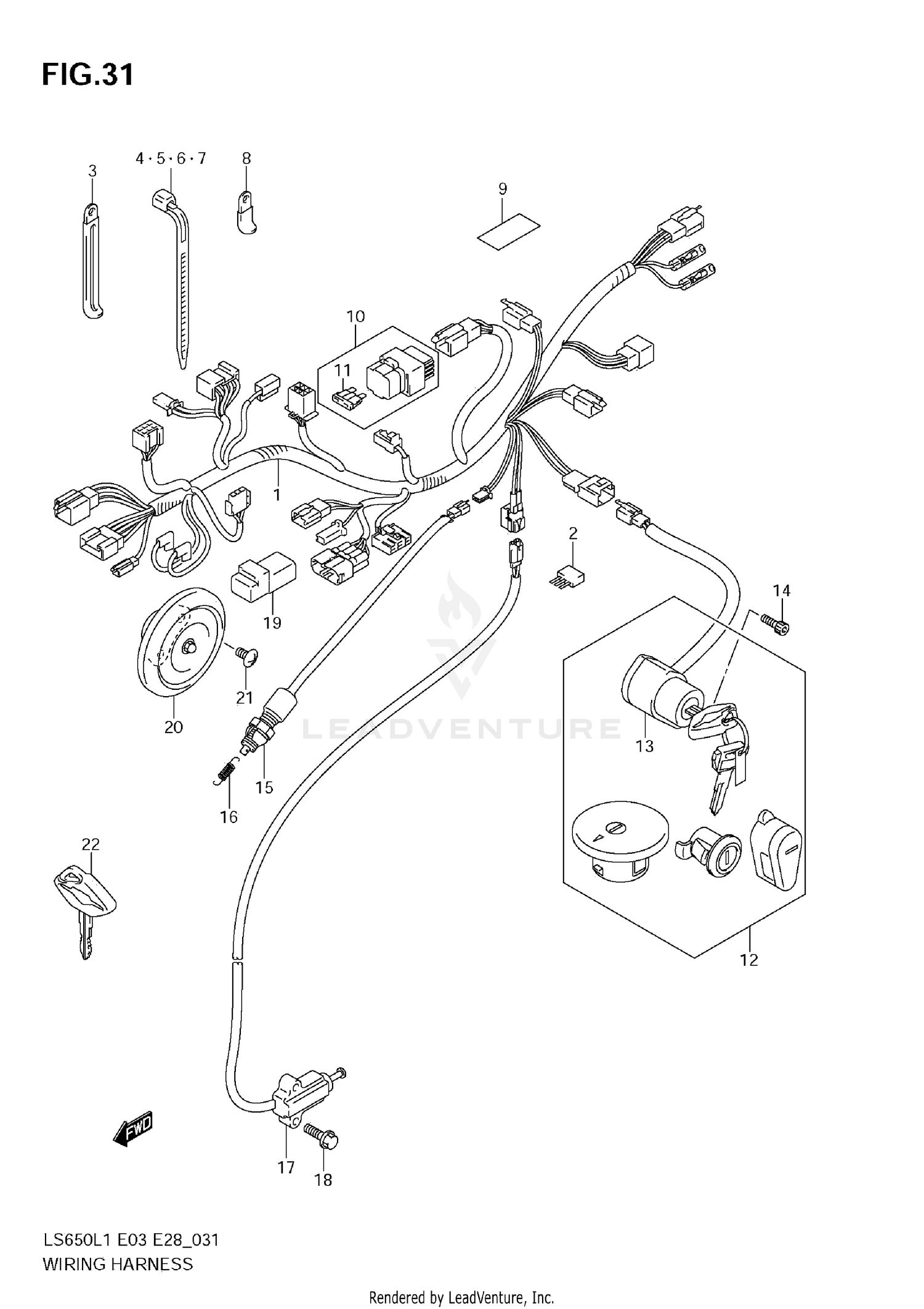

Wiring Harness (ls650l1 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING
36610-24BD0
Superseded by 36610-24BD1
|
$331.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
.DIODE
36611-38A00
Superseded by 36611-38A10
|
$16.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP (L:80)
09404-08419
Superseded by 09404-08422
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP (L:95)
09407-11401
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP (L:125)
09407-14403
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CLAMP (L:165)
09407-18402
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP (L:235)
09407-25401
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, WIRING HARNESS
36651-24B10
|
$2.14 | ||
|
Unavailable |
|||
|
#9
COVER (30X45X2)
36930-60A10
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE ASSY, MAIN
36740-24B01
|
$30.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
.FUSE (20A)
09481-20101
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
LOCK SET
37101-24830
|
$445.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
SWITCH ASSY, IGNITION
37110-24B10
|
$219.94 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
07130-0516B
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
SWITCH ASSY, STOP LAMP
37740-45D00
|
$19.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING
09443-06077
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH ASSY,SID
37840-12X50
Superseded by 37840-12X52
|
$74.85 | ||
|
Unavailable |
|||
|
#18
BOLT
01550-0620B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
RELAY ASSY, SIDE STAND WARNING
38740-24X50
|
$55.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
HORN ASSY
38500-24B00
|
$95.62 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW (6X12)
02142-0612B
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY, BLANK BOULEVARD
37146-38B00
|
$56.28 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY, BLANK BOULEVARD
37146-38B10
|
$56.28 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY, BLANK BOULEVARD
37146-38B20
|
$56.28 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY, BLANK BOULEVARD
37146-38B30
|
$56.28 | ||
|
Available to order. Add to View Price |
|||
