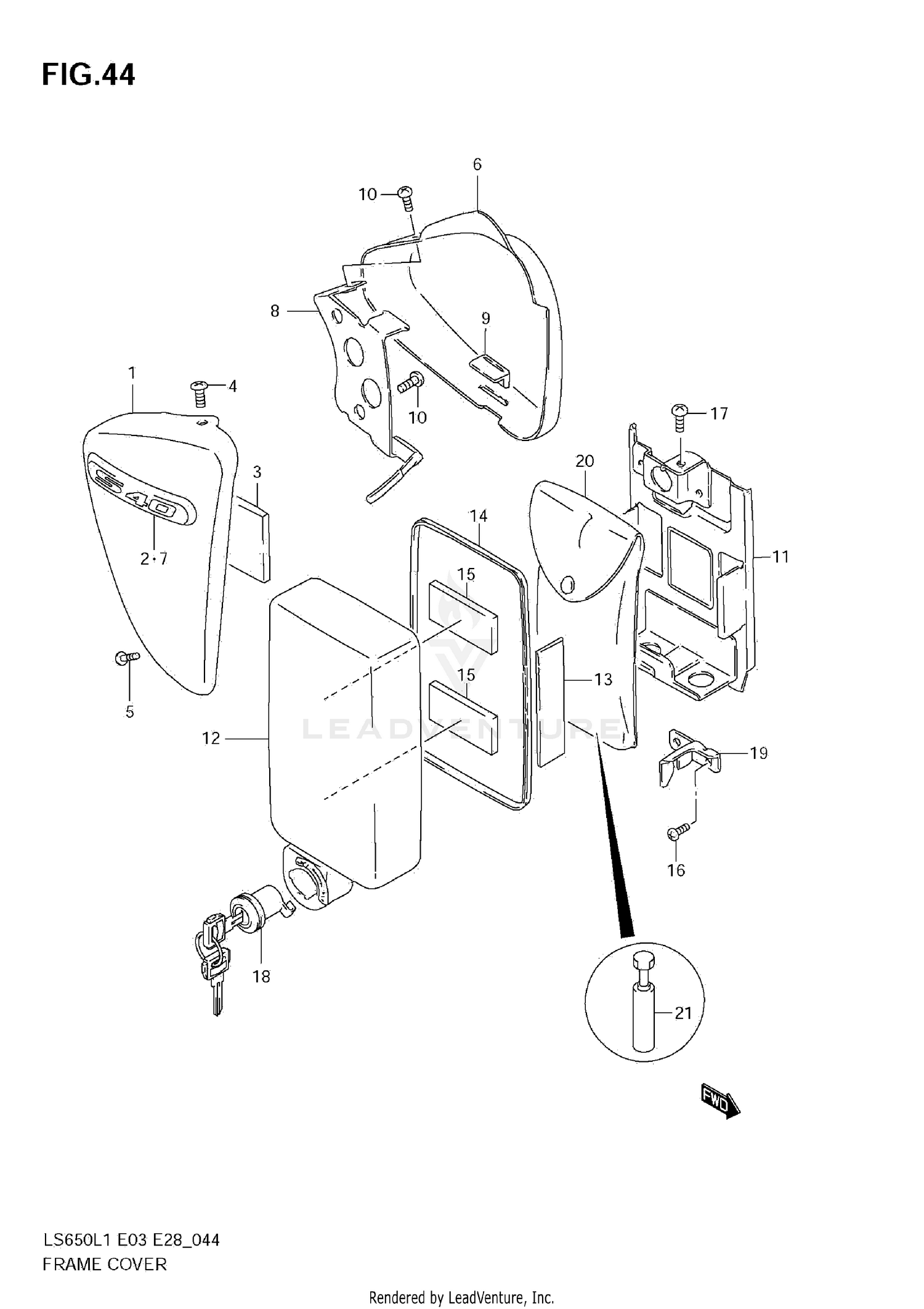

Frame Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER ASSY,FRAM
47100-24CA0-YUE
Superseded by 47100-24CA1-YUE
|
$183.52 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER ASSY,FRAM
47100-24CA0-YUK
Superseded by 47100-24CA1-YUK
|
$197.70 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM, FRAME COVER
68131-24CA0
Superseded by 68131-24CA1
|
$40.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
PAD
13719-84150
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
02142-0510B
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02112-7516B
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER ASSY,FRAM
47200-24CA0-YUE
Superseded by 47200-24CA1-YUE
|
$197.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER ASSY,FRAM
47200-24CA0-YUK
Superseded by 47200-24CA1-YUK
|
$324.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
EMBLEM, FRAME COVER
68131-24CA0
Superseded by 68131-24CA1
|
$40.67 | ||
|
Unavailable |
|||
|
#8
BRACKET, FRAME COVER LH
47180-24B03
|
$27.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION, FRAME COVER LH
47117-45000
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02122-0612B
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, TOOL
47430-24B01
|
$27.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, TOOL HOLDER
47440-24B20
|
$70.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
PROTECTOR (80X80X2)
33652-38A10
Superseded by 33652-07D00
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
MOLDING, TOOL HOLDER
47445-24B00
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION, TOOL HOLDER
33652-31F00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
02142-0510B
|
$2.21 | ||
|
Unavailable |
|||
|
#17
SCREW
02112-0610B
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
LOCK SET, TOOL HOLDER
95700-24871
|
$67.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, TOOL HOLDER LOCK
47434-24B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
TOOL ASSY
09800-21055
Superseded by 09800-21102
|
$25.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
GAUGE ASSY, TENSION
96220-24B00
|
$40.22 | ||
|
Available to order. Add to View Price |
|||
