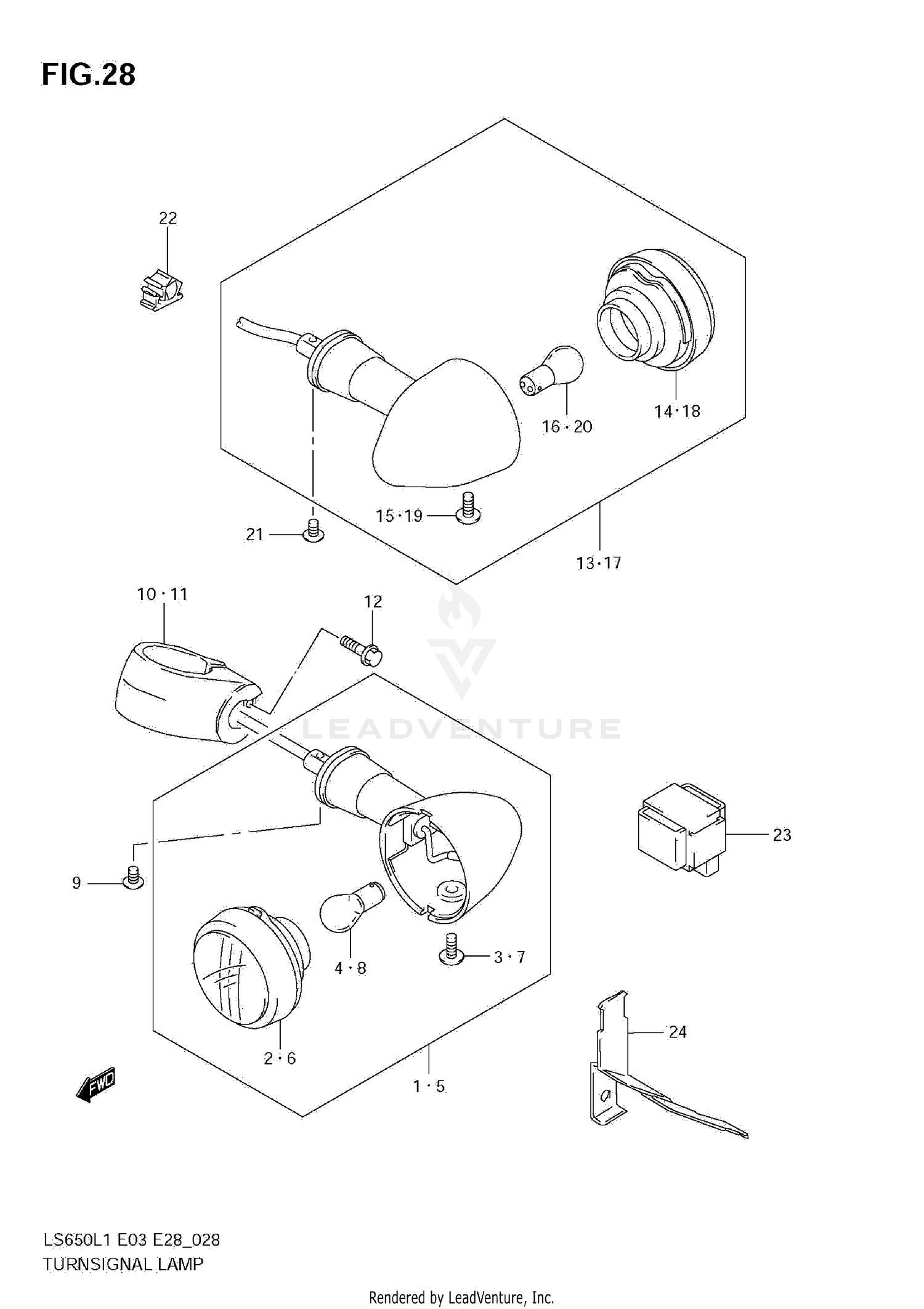

Turn Signal Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, FRONT TURNSIGNAL RH
35601-38AD0
|
$150.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS
35610-38AA0
|
$38.86 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW (4X10)
35623-38AA0
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB (12V,21/5W)
09471-12083
Superseded by 09471-12128
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
LAMP ASSY, FRONT TURNSIGNAL LH
35602-38AD0
|
$145.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
LENS
35630-38AA0
|
$39.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW (4X10)
35623-38AA0
|
$6.31 | ||
|
Unavailable |
|||
|
#8
BULB (12V,21/5W)
09471-12083
Superseded by 09471-12128
|
$8.20 | ||
|
Unavailable |
|||
|
#9
SCREW
02142-06107
|
|||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, FRONT TURNSIGNAL LAMP RH
35671-24B00
|
$57.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, FRONT TURNSIGNAL LAMP LH
35681-24B00
|
$66.06 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01547-05257
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#13
LAMP ASSY, REAR TURNSIGNAL RH
35603-38AA0
|
$139.63 | ||
|
Available to order. Add to View Price |
|||
|
#14
LENS
35630-38AE1
|
$39.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW (4X10)
35623-38AA0
|
$6.31 | ||
|
Unavailable |
|||
|
#16
BULB (BULB,12V,21W)
09471-12045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
LAMP ASSY, REAR TURNSIGNAL LH
35604-38AA0
|
$139.63 | ||
|
Available to order. Add to View Price |
|||
|
#18
LENS
35610-38AE1
|
$38.86 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW (4X10)
35623-38AA0
|
$6.31 | ||
|
Unavailable |
|||
|
#20
BULB (BULB,12V,21W)
09471-12045
|
$3.99 | ||
|
Unavailable |
|||
|
#21
SCREW
02142-06167
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
09403-07315
Superseded by 09403-04310
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
RELAY ASSY
38610-26E00
Superseded by 38610-26E01
|
$63.69 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, TURN SIGNAL RELAY
38621-24B10
|
$6.93 | ||
|
Unavailable |
|||
