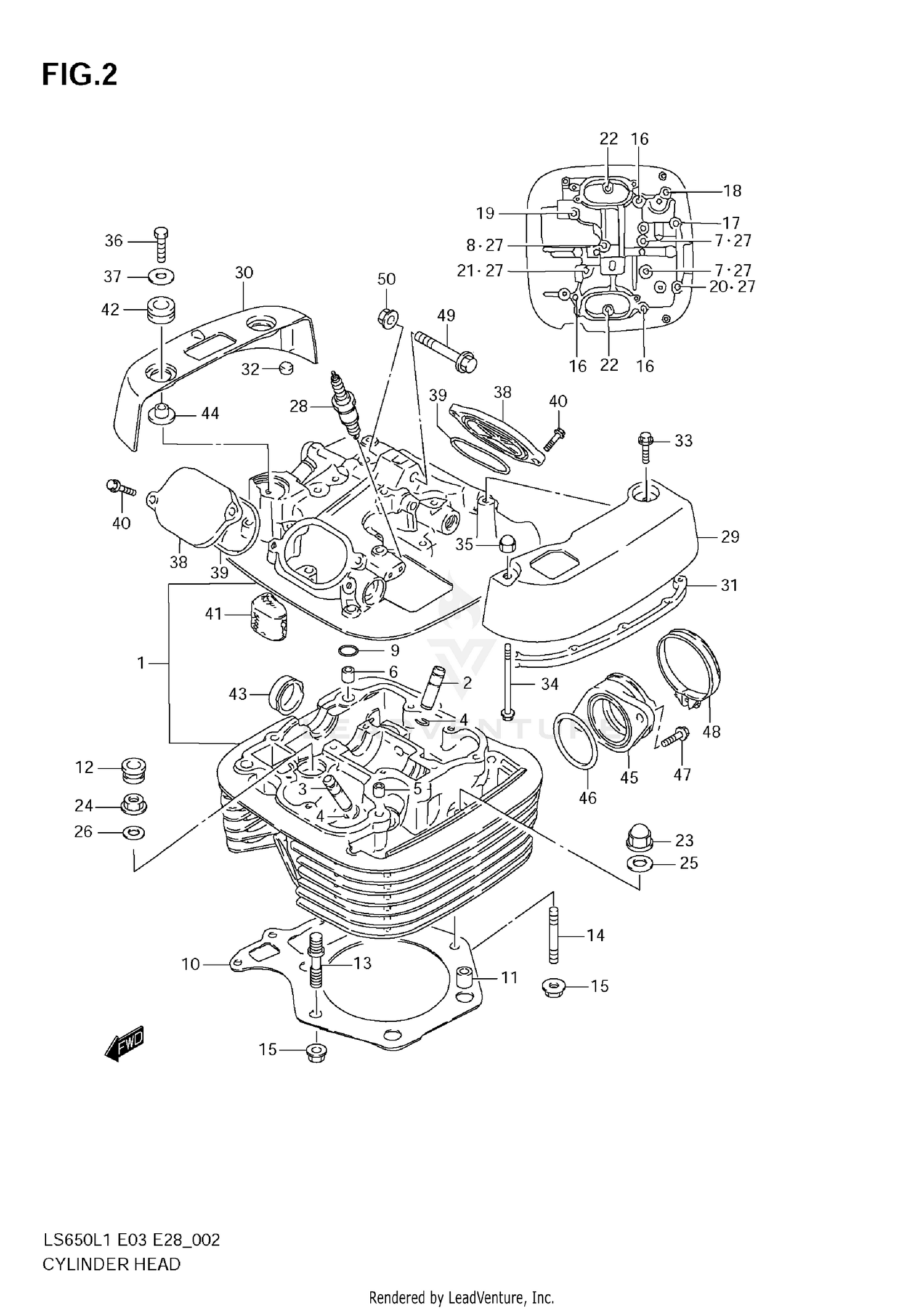

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-24B06
|
$983.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
CIRCLIP
09381-10003
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
09206-08001
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
09206-11004
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (6X60)
09103-06064
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (6X70)
09103-06103
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, VALVE IN (OS:0.3)
11115-44B70
|
$44.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, VALVE EX (OS:0.3)
11115-37470
|
$44.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING, CYLINDER HEAD COVER
11178-24B00
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, CYLINDER HEAD
11141-24B03
|
$62.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
04211-13189
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CAP, CYLINDER HEAD SEAL
11145-37401
|
$14.79 | ||
|
Available to order. Add to View Price |
|||
|
#13
STUD BOLT (M12/8)
09108-08205
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
STUD BOLT
09108-08206
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
08316-1008A
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (6X39)
09103-06026
|
$2.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT (6X125)
09103-06033
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (6X115)
09103-06052
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (6X60)
09103-06064
|
$2.58 | ||
|
Unavailable |
|||
|
#20
BOLT (6X130)
09103-06085
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (6X55)
09103-06102
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
01550-0625A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
09159-09003
|
$7.72 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
09159-09004
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET (10.2X20X2.3)
09168-10031
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET (10.2X20X2.3)
09168-10031
|
$2.45 | ||
|
Unavailable |
|||
|
#27
GASKET (5.8X13X1.2)
09168-06023
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPARK PLUG (NGK,DPR8EA-9)
09482-00334
|
$3.64 | ||
|
Unavailable |
|||
|
#28
SPARK PLUG (DENSO,X24EPR-U9)
09482-00335
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPARK PLUG (NGK,DPR7EA-9)
09482-00354
|
$4.10 | ||
|
Unavailable |
|||
|
#29
CAP, HEAD COVER LH
11171-24B04
|
$147.23 | ||
|
Available to order. Add to View Price |
|||
|
#30
CAP, HEAD COVER RH
11172-24B04
|
$147.23 | ||
|
Available to order. Add to View Price |
|||
|
#31
CUSHION, LH CAP
11272-24B01
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#32
CUSHION, RH CAP
11273-24B00
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT
01550-0620A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
01550-0665A
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT
08313-2006A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, REAR
01500-0625A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER (6.5X24X1.6)
09160-06134
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#38
CAP, INSPECTION
11175-24B10
|
$12.41 | ||
|
Unavailable |
|||
|
#39
O RING (D:2.4,ID:23.0)
09280-60004
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
01550-0620A
|
$2.37 | ||
|
Unavailable |
|||
|
#41
SEPARATOR, OIL BRTHR COVER
11186-24B02
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#42
CUSHION
09320-13015
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#43
PLUG
09241-30008
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#44
BUSH
09301-06007
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIPE, INTAKE
13101-14A10
|
$58.31 | ||
|
Available to order. Add to View Price |
|||
|
#46
O-RING (D:2.4,ID:46.0)
09280-46002
|
$12.77 | ||
|
Available to order. Add to View Price |
|||
|
#47
SCREW
02112-1620B
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#48
.CLAMP
09402-58208
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT (8X55)
09103-08339
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#50
NUT
08319-3108A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
